urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 500

In this case, simply fill in the fields "Name" and "MAC Address" to add the device: the field "Name" is
arbitrary and chosen by the installer, the field "MAC Address" instead is well defined and associated with
the device in use. To enter the latter parameter, in this case you do not need to know the single digits, as
there is a quick selection button "..." available that allows to set it up immediately.
If you press in fact this button, a dialog box will appear:

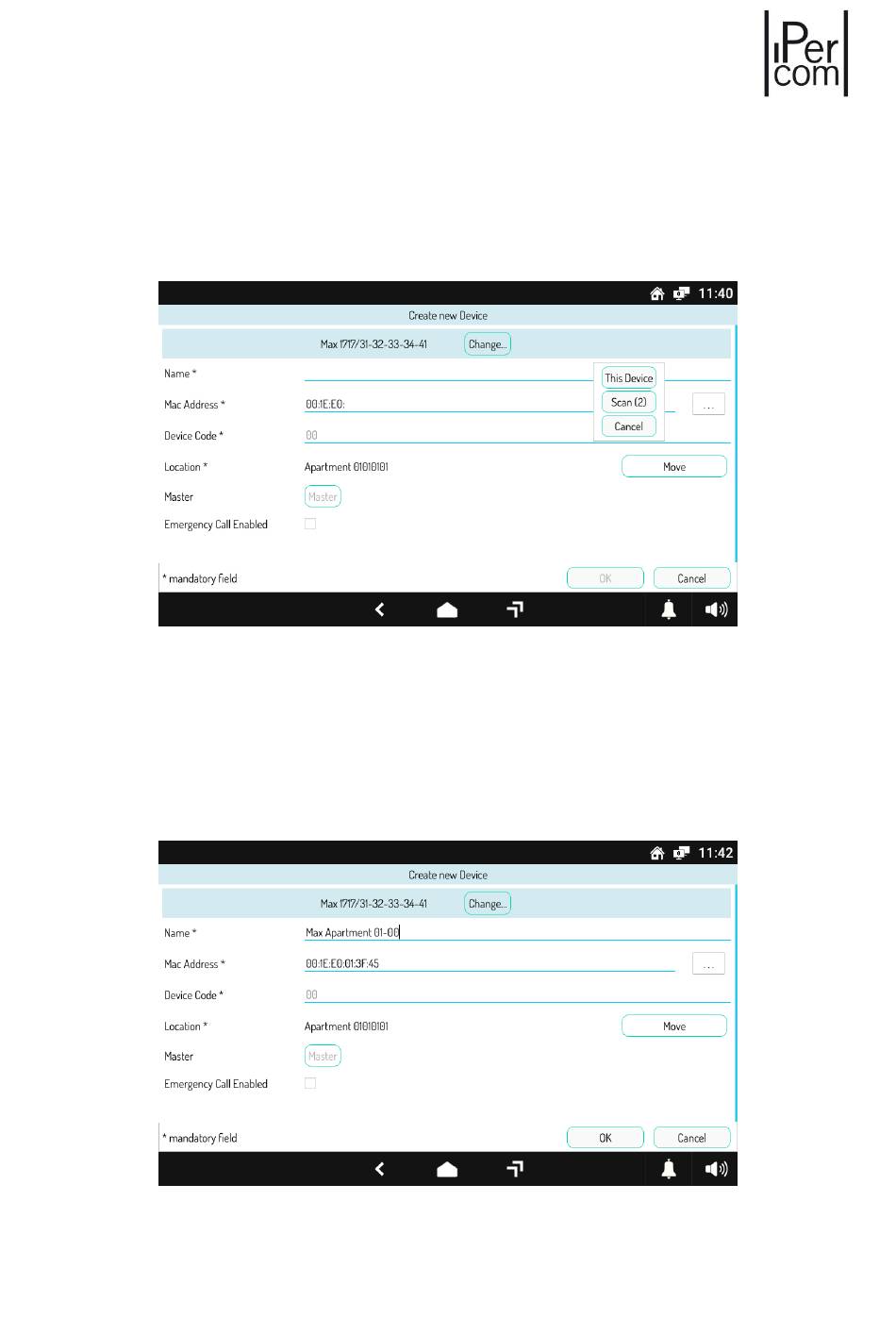

Figure 632: Selecting the MAC Address of the current device
Pressing the "This Device" button to automatically set the MAC address of the MAX video door phone.
Press "Scan (.../...)" to display a list of devices (with respective MAC address) which are present on the
system but which have not yet been added to the configuration, as shown in the next step.
Press the first button to add the MAC address of the current device:
Figure 633: Automatic setting of the current device MAC Address
500 MT124-032N
