DS 1148-003
LBT 8744

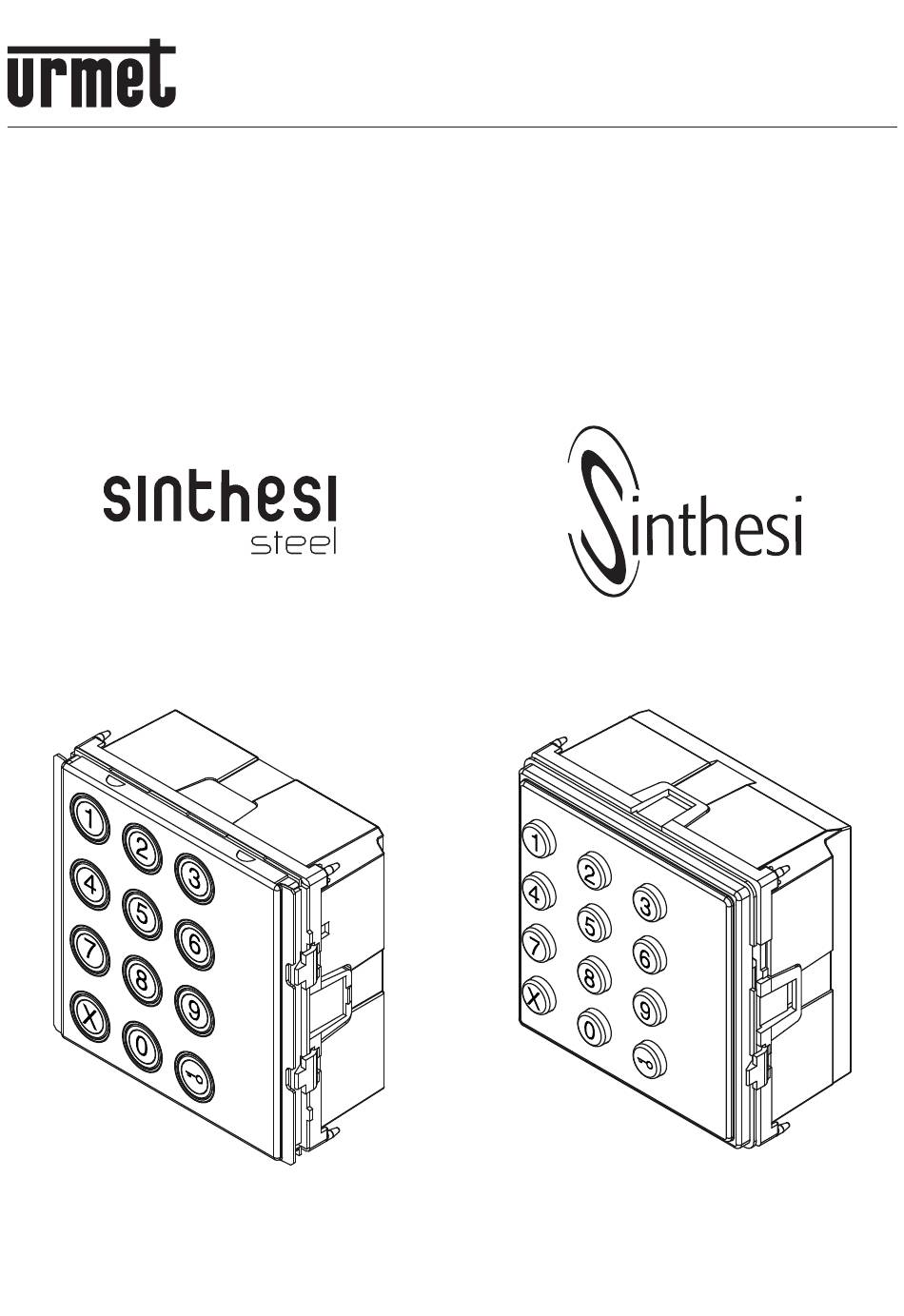

MODULO APRIPORTA CON TASTIERA 2 RELé
DOOR RELEASE DIGITAL KEYPAD 2 OUTPUT
MODULE OUVRE-PORTE AVEC CLAVIER à 2 RELAIS
MÓDULO DE APERTURA DE LA PUERTA CON TECLADO 2 RELéS
TüRöFFNERMODUL MIT TASTATUR 2 RELAIS
Sch./Ref. 1158/46
Sch./Ref. 1148/46

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sinthesi Steel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for urmet domus Sinthesi Steel

Summary of Contents for urmet domus Sinthesi Steel

  • Page 1 DS 1148-003 LBT 8744 MODULO APRIPORTA CON TASTIERA 2 RELé DOOR RELEASE DIGITAL KEYPAD 2 OUTPUT MODULE OUVRE-PORTE AVEC CLAVIER à 2 RELAIS MÓDULO DE APERTURA DE LA PUERTA CON TECLADO 2 RELéS TüRöFFNERMODUL MIT TASTATUR 2 RELAIS Sch./Ref. 1158/46 Sch./Ref.

  • Page 2: Electrical Specifications

    PROGRAMMAZIONE ENGLISH MORSETTO FASCE ORARIE Abilitando la funzione “fasce orarie” è possibile DESCRIPTION definire attraverso un timer (non fornito) dei periodi durante la giornata in cui per attivare i relè è The features of the code keypad door opener sufficiente premere il tasto device are: •...

  • Page 3: Accessing Programming Mode

    TERMINALS RELAY OPTIONS PROGRAMMING PROCEDURE Power positive (1Vac or 1Vdc) Power negative (1Vac or 1Vdc) Access programming mode. Timeslots Enter the configuration code nn a b ss where: Hall door opener relay  nn is the relay to be configured; possible values Hall door opener relay 1 are: Common contact relay 1...

  • Page 4: Default Settings

    DELETING A CODE TIMESLOT TERMINAL PROGRAMMING PROCEDURE Access programming mode. Enter configuration code 99 nn where: By enabling the timeslot function, a timer (not 99 identifies the function code to be deleted included) may be used to program the periods nn defines the code memory location;...
  • Page 5 NOTE LEGATE AGLI SCHEMI NOTES ON DIAGRAMS REMARQUES CONCERNANT LES SCHéMAS NOTAS REfERIDAS A LOS ESqUEMAS HINWEISE IN VERBINDUNG MIT DEN PLÄNEN CE.006 - SECCIONES MÍNIMAS CE.006 - SEZIONI MINIME DE LOS CONDUCTORES DEI CONDUTTORI DISTANCIA MAX DISTANZA MAX Entre el módulo de apertura Dal Modulo apriporta de la puerta y all'Alimentatore...
  • Page 6 SC103-0009 Sch./Ref.9000/230 Sch./Ref.9000/230 A - Contatto Orologio D - Rete~ Clock switch Mains~ Interrupteur ‘horloge’ Secteur~ Interruptor ‘reloj’ Red~ “Zeitregler” Taste Netz~ B - Azionamento Serratura E - Serratura elettrica Lock release Electric lock Ouverture Serrure Serrure electrique Abertura de la cerradura Cerradura eléctrica Öffnen Schloß...
