4-Button module Ref. 1168/4 and 8-Button module Ref. 1168/8

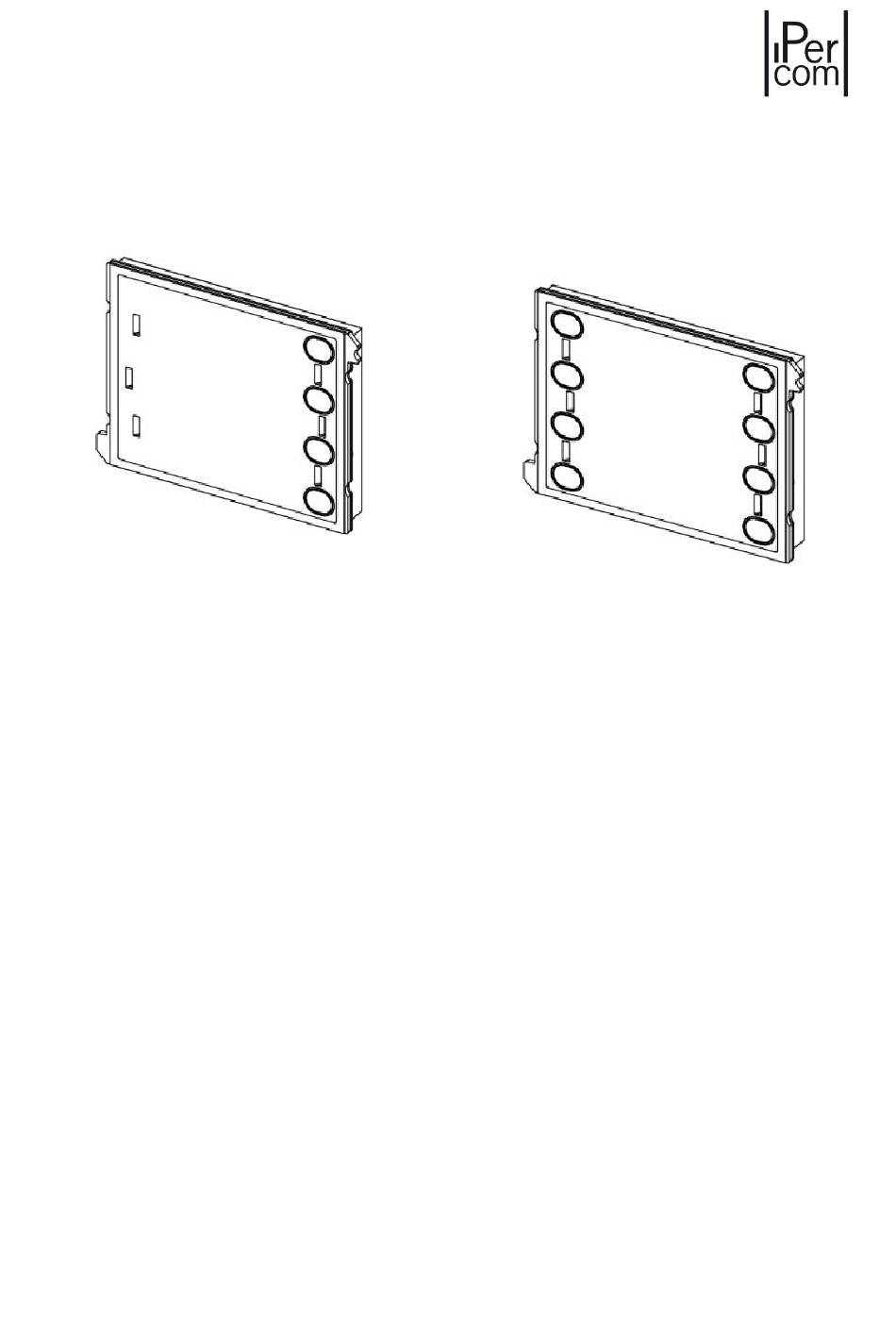

4-BUTTON MODULE
The 4-button or 8-button modules can be used to expand the number of users on the panel. Up to 88
buttons can be connected (in addition to the two already present on the door unit), using up to 11 button
modules Ref. 1168/8.
Flush-mounted panel accessories
Flush-mounting boxes
For different versions of flush-mounting boxes for ALPHA range products are provided according to the
number of modules to be housed:
•
For 1 module
•
For 2 modules
•
For 3 modules
•
For 4 modules
System wires lead into the boxes through the openings on the sides and bottom of the box. All openings are
shut by removable closures.
MT124-032M
8-BUTTON MODULE
Sch. 1145/51
Sch. 1145/52
Sch. 1145/53
Sch. 1145/54
