urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 113

The "Configuration" tab instead shows that the system devices have an older configuration than the project
(as shown in the red box):

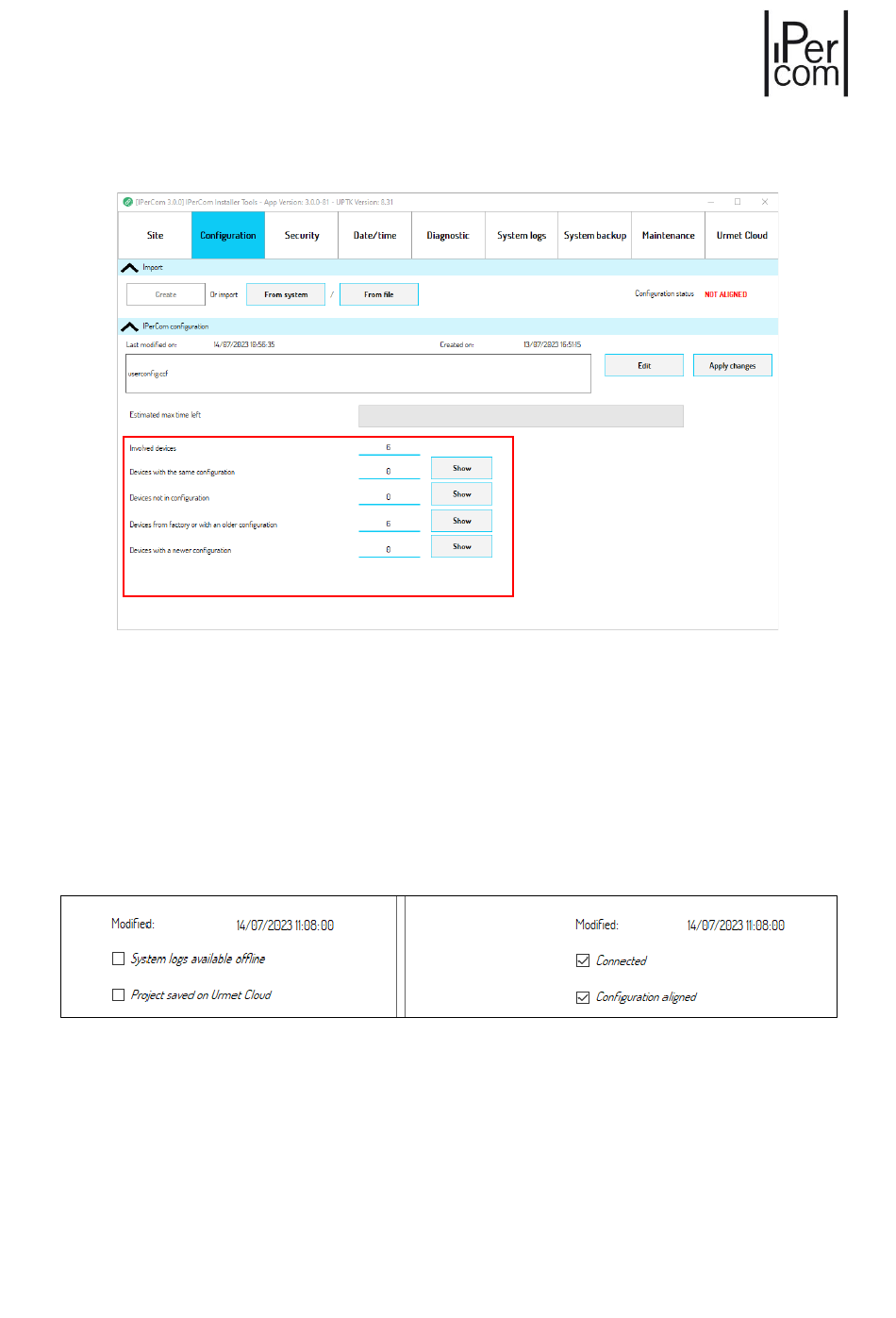

Figure 83: "Configuration" tab with local configuration not yet transferred to the system
The "Apply changes" button allows you to align the configuration: in fact (after applying the changes) the
"Modified" field on the "Site" tab is the same both on the project and on the system site and therefore the
configuration is aligned. In the "Configuration" tab, the "Devices from factory or with an older
configuration" field is reset to zero, while the "Devices with the same configuration" field takes the same
value as the system devices (with the same configuration associated to the project):
Figure 84: aligned configuration between project and system site
MT124-032N 113
