L
OGIC ADDRESSING TYPE
In logic addressing to call an apartment from Call Module or Modular Calling Station with 1060/48 or a
Switchboard, an alphanumeric code must be entered by the keypad. You can set this code in automatic or
manual mode (see Global Settings
"Settings" tab of the "Topology" tab appears as shown below:
As you can see, the "Logical Code" field is automatically filled in by the configurator. If, on the other hand,
you choose the manual mode, the numeric code must be filled in by the installer.
From the configurator it is possible to enter logic codes with a maximum of 8 alphanumeric characters.
When typing the code from the alphanumeric keyboard, the on the left zeros cannot be omitted.
To enter alphanumeric codes, the Modular Calling Station with 1060/48 must be equipped with an
alphabetic keyboard 1168/49.
398
paragraph for further details). In the first case, for each apartment the

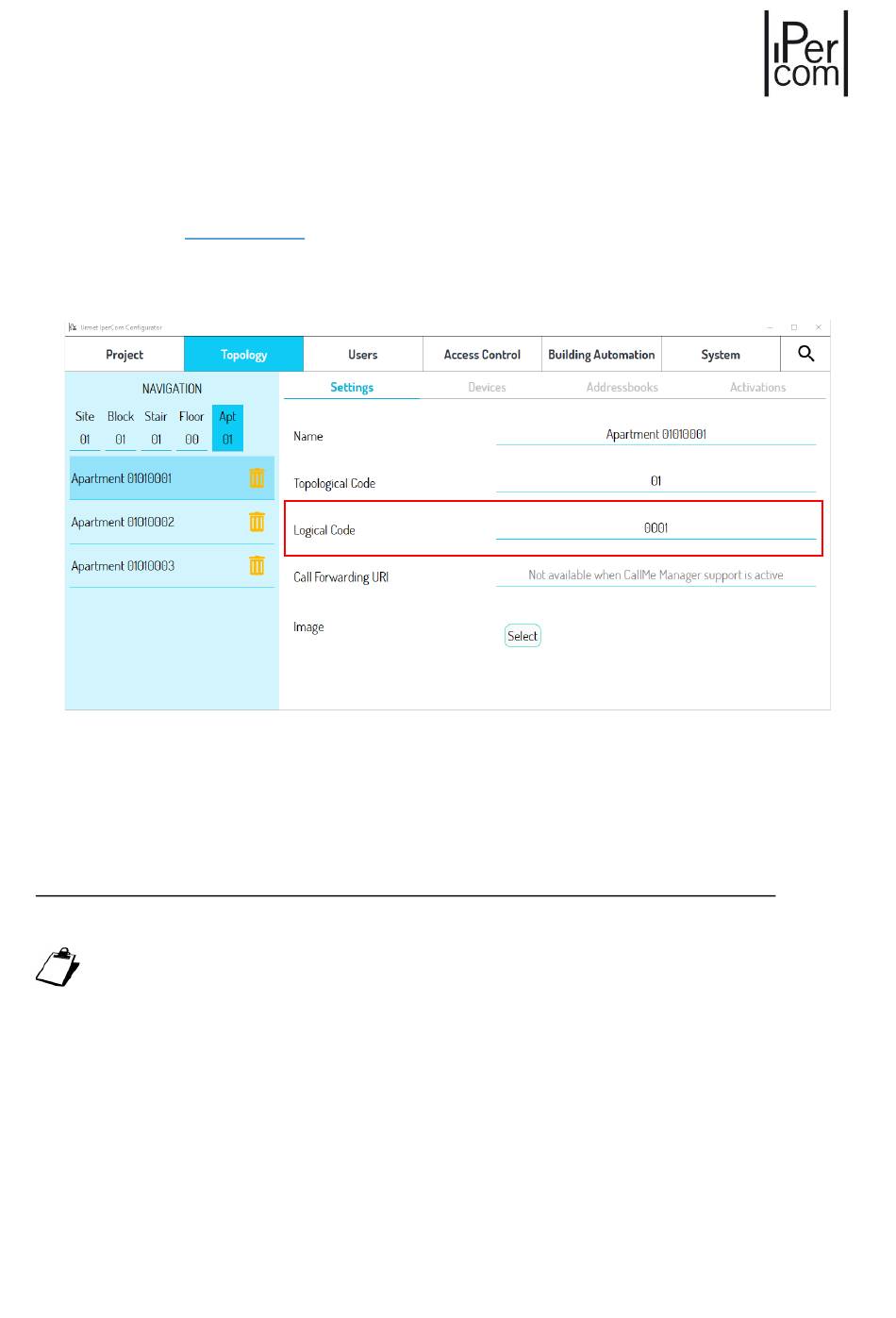

Figure 491: "Settings" screen in case of logic addressing
