urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 220

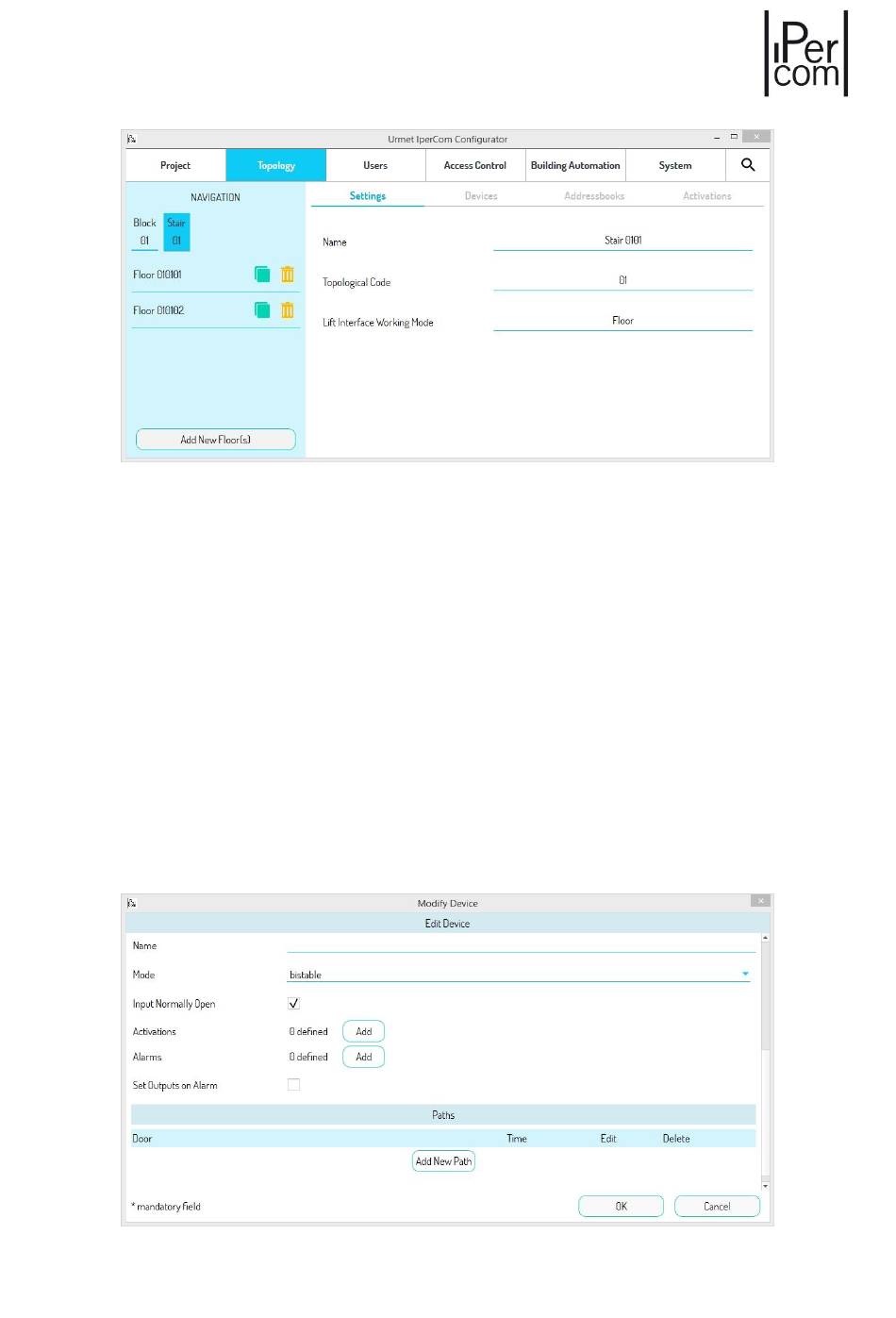

Figure 243: Lift Interface setting - Mode selection
7.1.2.2.1.1 Creating the path
The lift interface is equipped with 24 relays that can be configured through the IperCom Installer Tools
configurator, so that they close in response to an event occurring in the system. A typical case is to enable
the visitor who accesses the residential complex to use a lift to access only the floor, or the apartment
according to the operating mode, where the person with the selected name lives. For this to be possible, it
is necessary to create a "path", i.e. an association between the access that allows accessing the structure
(for example a main or secondary call station or a proximity reader module) and the destination to which
the visitor will move, i.e. the floor/apartment.
To access the path configuration, it is necessary to enter the configuration page of the device, at the lift
interface you want to configure. In the "paths" section the list of all paths already configured is shown. It is
possible to edit or delete an existing path by pressing the "Edit" and "Delete" icons. It is possible to create a
new path by pressing the "Add Path" button.
Figure 244: Lift interface configuration - Creating the access path
220 MT124-032N
