urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 164

6.15.5 System Logs
The "System Logs" tab allows you to record in a log a set of events related to the operation of an IPerCom
system. To display the complete log with all its functions, it is necessary that at least one Server 1060/1 is
present on the system.
If this condition is verified, after opening a project associated with a system, connecting to the system, and
checking that the configuration is aligned, the "System logs" tab is displayed as shown below:

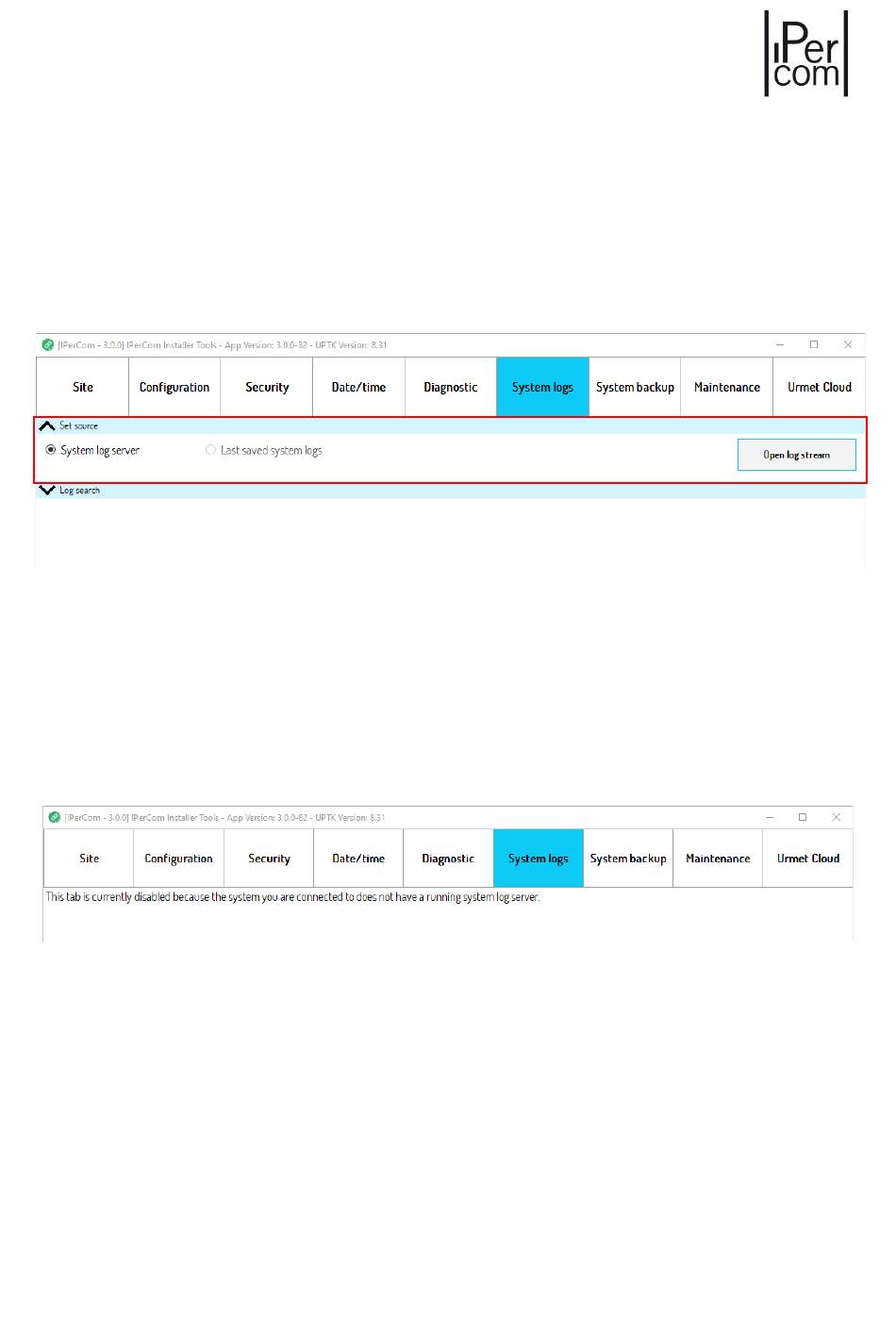

Figure 159: "System Logs" tab (if a Server is in the system)
The red box (Set Source section) highlights that the source of the System Logs is Server 1060/1, renamed as
System log server.
If, in fact, there is no Server 1060/1 in the system and therefore no event source, the "System logs" tab is
shown as in the figure below:
Figure 160: "System Logs" tab (if no Server is in the system)
If there are more than a Server 1060/1 in the system, the System Logs display is obviously independent of
the Server chosen by the system as source (of System Logs) and is done by pressing the "Open System Logs"
button.
164 MT124-032N
