urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 332

7.1.6 Gate contact used as output of a Relay Actuator
For activation rules it is possible to use the gate contact of any calling station as a relay output (in addition
to the relay outputs of 1060/84 Relay Actuator and the 1060/37 Lift Interface devices). The calling stations
that allow the gate contact to be used as the output of a relay actuator are:
- Entry Panel 1060/71-74-75-78;
- Entry Panel 1060/21-33-34;
- Call Module 1060/12-13-17-18-23;
- Modular Calling Station with 1060/48.
To use the gate contact of a calling station as relay output of an actuator, from the configurator it is
necessary to press the Edit button of the Call Module 1060/12-13-17-18-23 (for example):
332

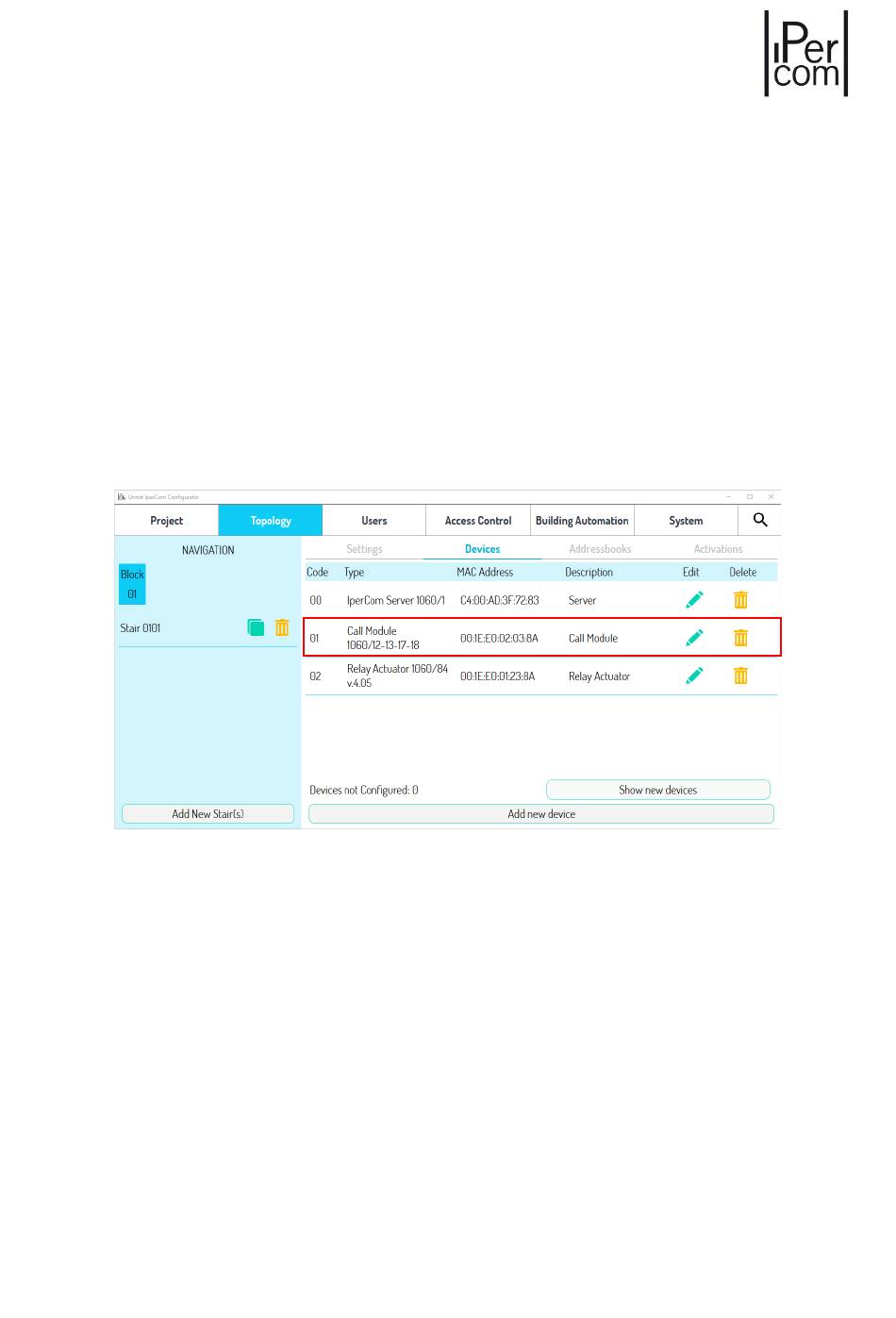

Figure 405: gate contact to be set as the output of a relay actuator
MT124-032N
