6. In the "Topology" tab create the topological structure of the system and identify a topological node
for Server iPerTalk V1 (for example "Block 01" -- > "Stair 01" -- > "Floor 01").
7. In the selected node add the Server iPerTalk V1.
8. Navigating in the apartments of "Floor 00" (in this case where the Server iPerTAlk V1 has been
added), on the "Settings" tab enable "iPerTalk" item and enter the number to call (item "iPerTalk
ID") (for example 90101, 90102, 90103, ...). Enabling the "iPerTAlk" item, the apartment is
considered as an extension in the iPerTAlk system. Depending on how the system is structured, it
may be necessary to configure several apartments equal to the number of extensions to be called
from the IPerCom system. All apartments configured as iPerTAlk extensions will be displayed in the
Ipercom device directory.
MT124-032N

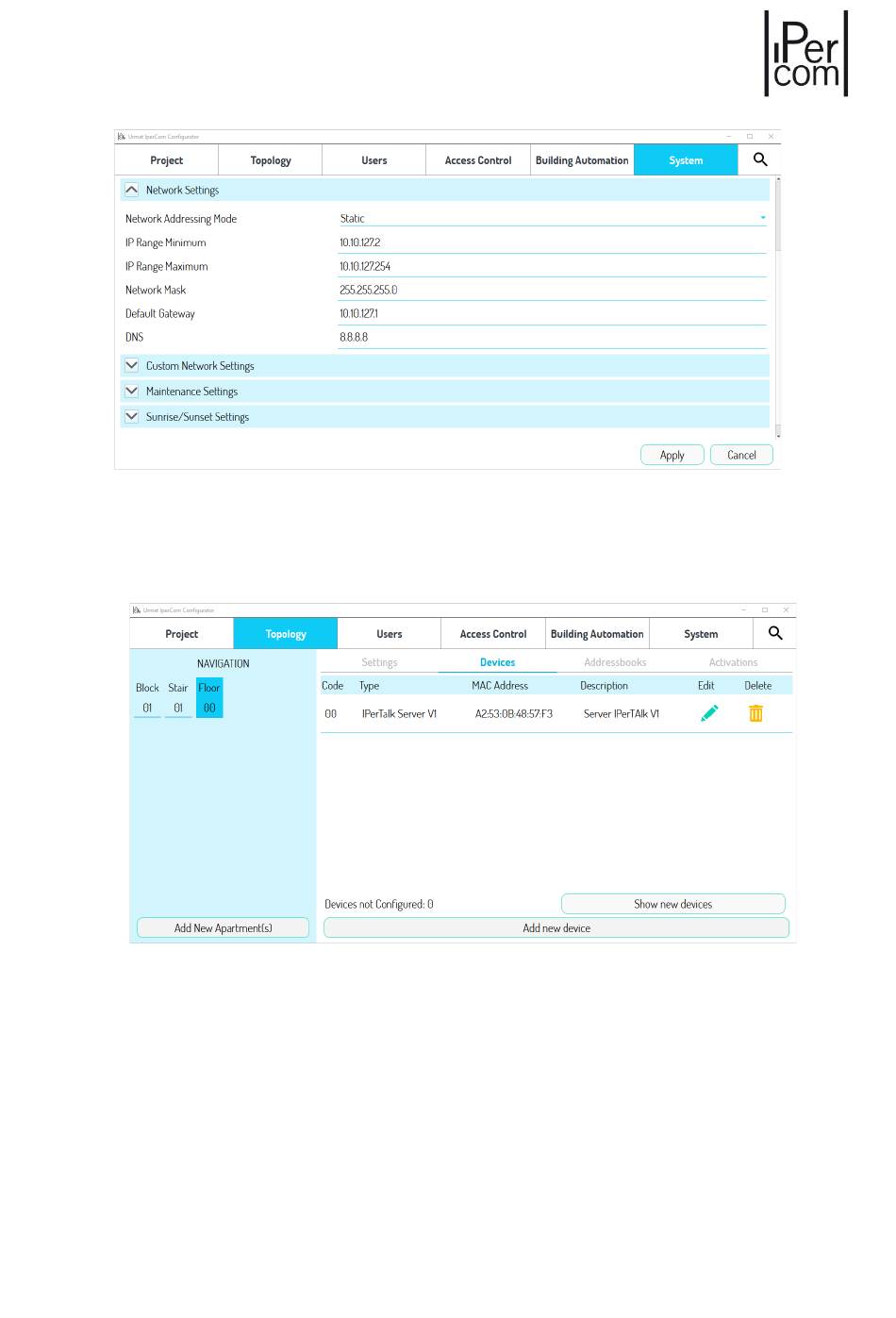

Figure 669: example of IPerCom network setup
Figure 670: add of the iPerTAlk Server V1
