urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 209

To add a MAX video door phone, simply press on "Video door phone 7'' MAX 1717/31-32-33-34-41". The
following screen opens:

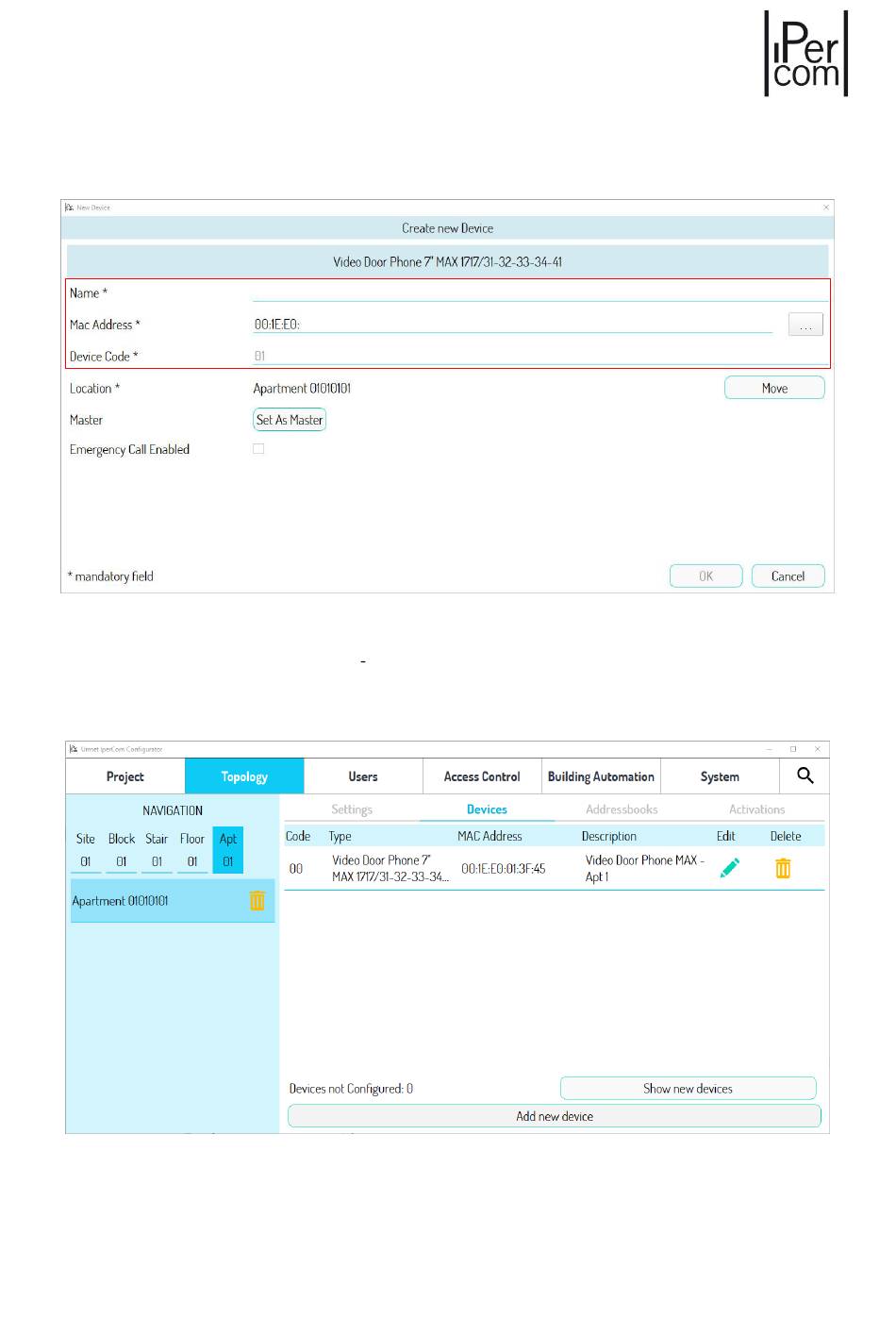

Figure 226: MAX video door phone configuration
Fill in the fields in the red box to configure the device in question (in this case the MAC address and a name
to associate with the video door phone). After this operation, press the "OK" button: the MAX video door
phone is displayed on the topological node previously chosen:
Figure 227: Adding a MAX video door phone to an apartment
MT124-032N 209
