APPENDIX M2: RTSP Cameras with NVR Urmet device
Below is a short procedure for integrating the RTSP Cameras into the IPerCom system through the Urmet
1098/324P-326P-328P NVR devices connected in turn to the IPerCom system.
In this way the streaming video of the RTSP Cameras will be visible from the system's video door phones (in
auto-on, in call both during the unhook time and during the conversation time), from the Switchboard
application and can also be recorded (and displayed) by the Urmet NVR device.
To implement what is written above, it is recommended to have 3 different subnets: one for the IPerCom
devices, one for the Urmet NVR device and a third for the RTSP Cameras. In general, you can follow the
scheme displayed below, where the IP addresses shown are purely by way of example, as is the type of
addressing:

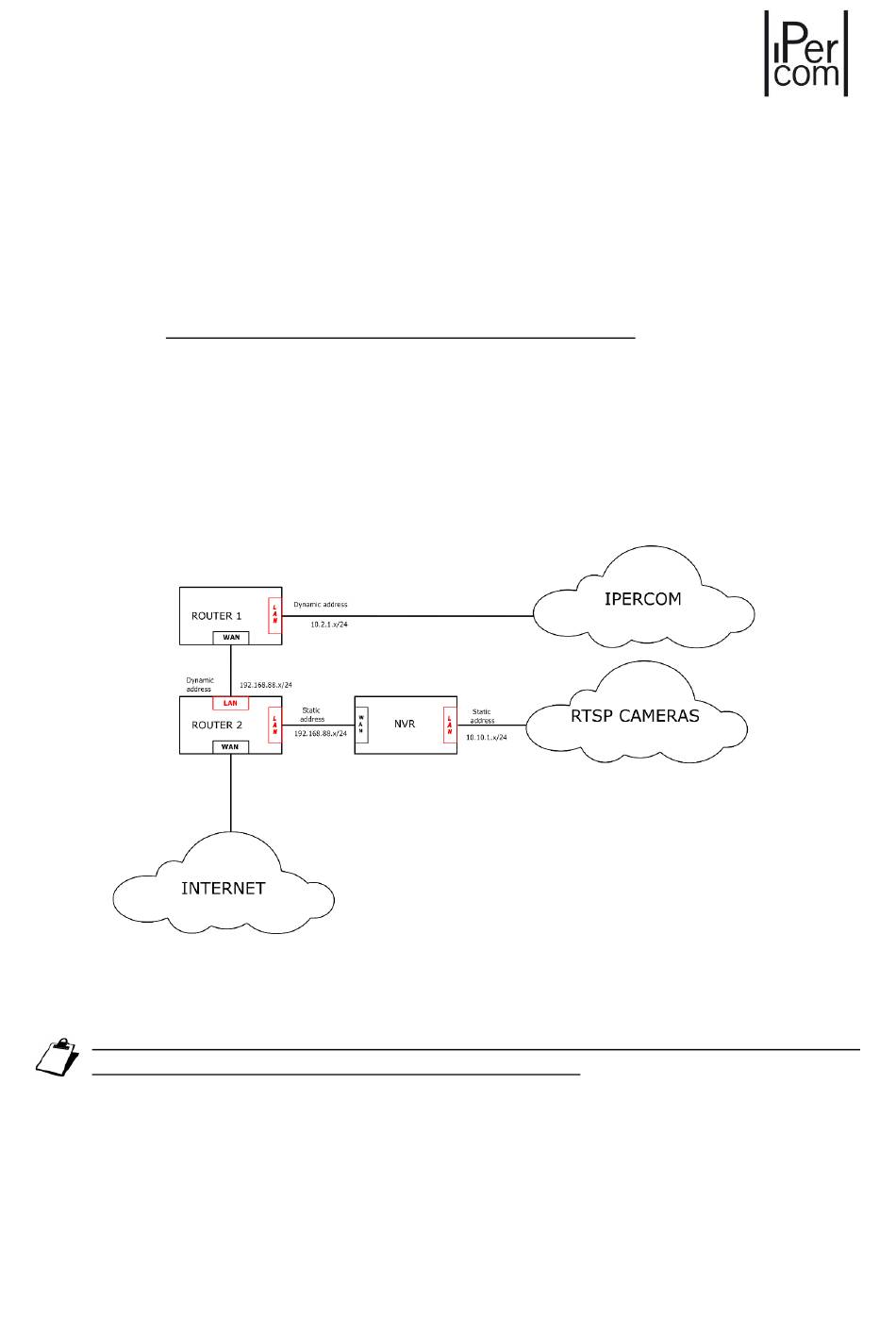

Figure 816: connection diagram for RTSP cameras and Urmet NVR device
The network infrastructure and any configuration of the routers must be carried out by
specialized personnel for the correct functioning of the system.
To create the above diagram, follow what is written below.
