CASE 2: IP C
ER OM SYSTEM WITH STATIC ADDRESSING
This case is like the previous one with the only difference that the IP addresses of the IPerCom devices are
not assigned by the DHCP server of a router but by the configurator.
To implement this case, we recommend following the diagram displayed below, where the IP addresses
shown are purely by way of example:
To create the diagram in
1. ROUTER 1
• Connect the WAN port to Internet (optional).
2. RTSP CAMERAS
• Set the RTSP Cameras addressing in static mode with addresses ranging from 192.168.35.50 to
192.168.35.60.
In this way the IPerCom devices connected to ROUTER 1 via LAN have IP addresses of the 192.168.35.x/24
type, from 192.168.35.1 to 192.168.35.49 (assigned by the configurator); the RTSP Cameras connected to
the LAN ports of ROUTER 1 will have IP addresses from 192.168.35.50 to 192.168.35.60 (set statically).
MT124-032M

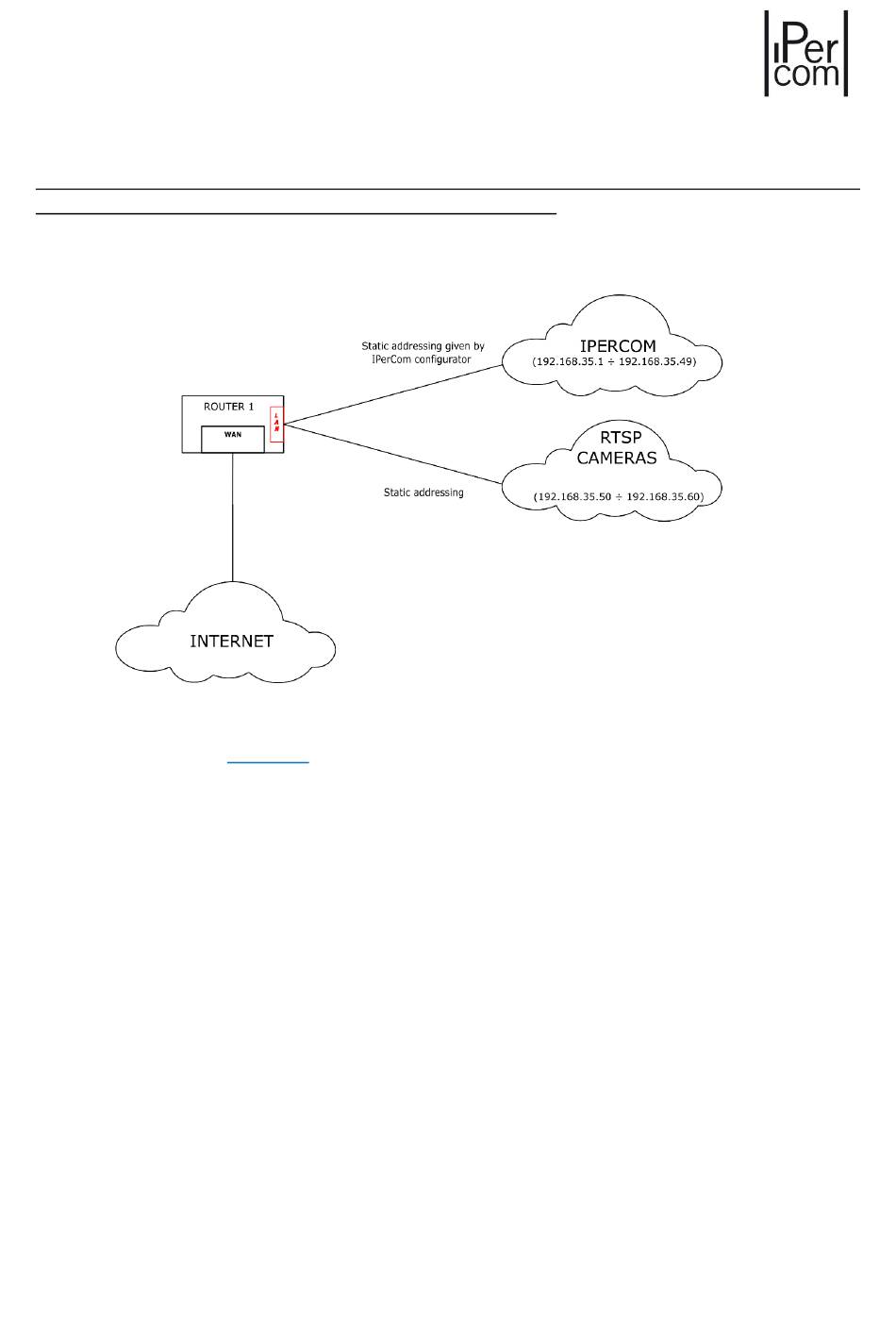

Figure 772: connection diagram for RTSP cameras and IPerCom devices
Figure 772, follow the instructions below.
, RTSP IP
CAMERAS AND
C
ER OM DEVICES IN THE SAME SUBNET
