urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 319

Press the "Add New" button to open the following screen with all the available inputs of the various relay
actuators (identified by their physical MAC address and a significant name):

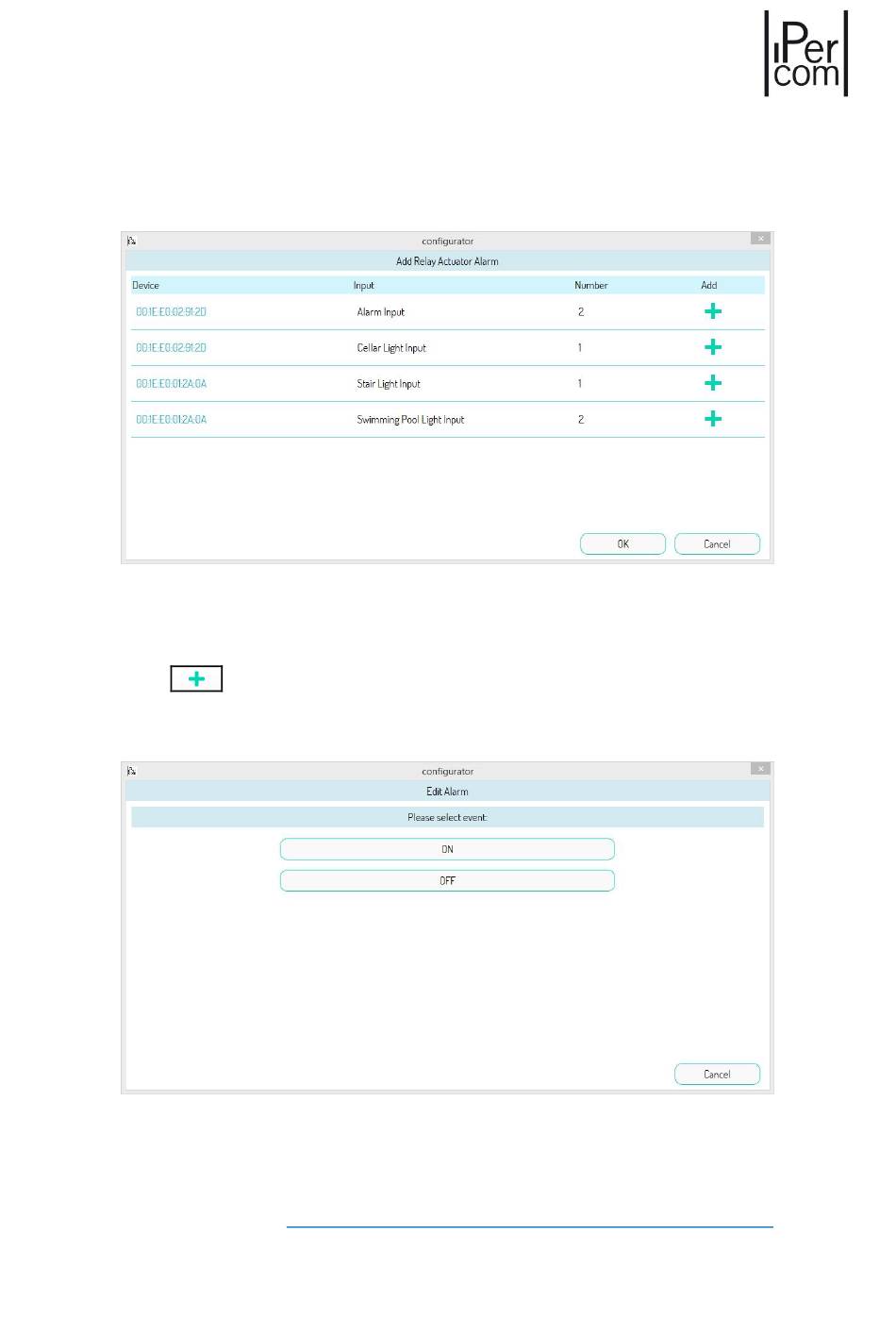

Figure 382: Inputs available for alarm generation
In this example, we will assume that the first input is reserved for alarm generation.
Press the button to choose which event on this input generates the alarm. If the input has been
configured in bistable mode (APPENDIX A: Configuration parameters of IPerCom devices), the possible
events are the following:
Figure 383: events available if the input is set to bistable mode
The ON and OFF events are used to generate instantaneous alarms. For example, if the input has been set
to normally closed (paragraph APPENDIX A: Configuration parameters of IPerCom devices), a sensor
connected to a port that is forced triggers an ON event and then generates an alarm.
MT124-032N 319
