T
OPOLOGIC ADDRESSING TYPE
In topologic addressing type to call an apartment from Call Module or Modular Calling Station with 1060/48
or Switchboard, the topologic code of the apartment in question must be entered by the keypad (starting
from the block node).
The topologic code of an apartment is a fixed parameter defined by the configurator during the creation of
the system topology and is visible on the red box reported in the picture below:
In the "Settings" tab of the "Topology" tab, the "Topological Code" field (blue box) shows only the part of
the topologic code relating to the topologic node in which you are positioned in the navigation module. The
"Name" field (if not modified) shows the topological code of the node where you are positioned (starting
from the block node).
To call an apartment via the keypad of a Call Module or a Modular Calling Station with 1060/48 or a
Switchboard, it is recommended to use the logic or numeric or numeric block addressing type,
described below.
The "Select" button in the "Image" section allows you to upload an image on the display of the Call
Module 1060/12-13-17-18-23 which is intended to provide the guest with a "visual" aid in reaching
the called apartment. The selected image appears as soon as the call is forwarded and disappears
when the call is ended. Supported file formats include the most common ones like jpg, bmp and png.
We recommend uploading images with an aspect ratio of 200x58 pixels: this way the image will not
be cropped. Once an image is uploaded, you can delete it using the "Delete" button.
396

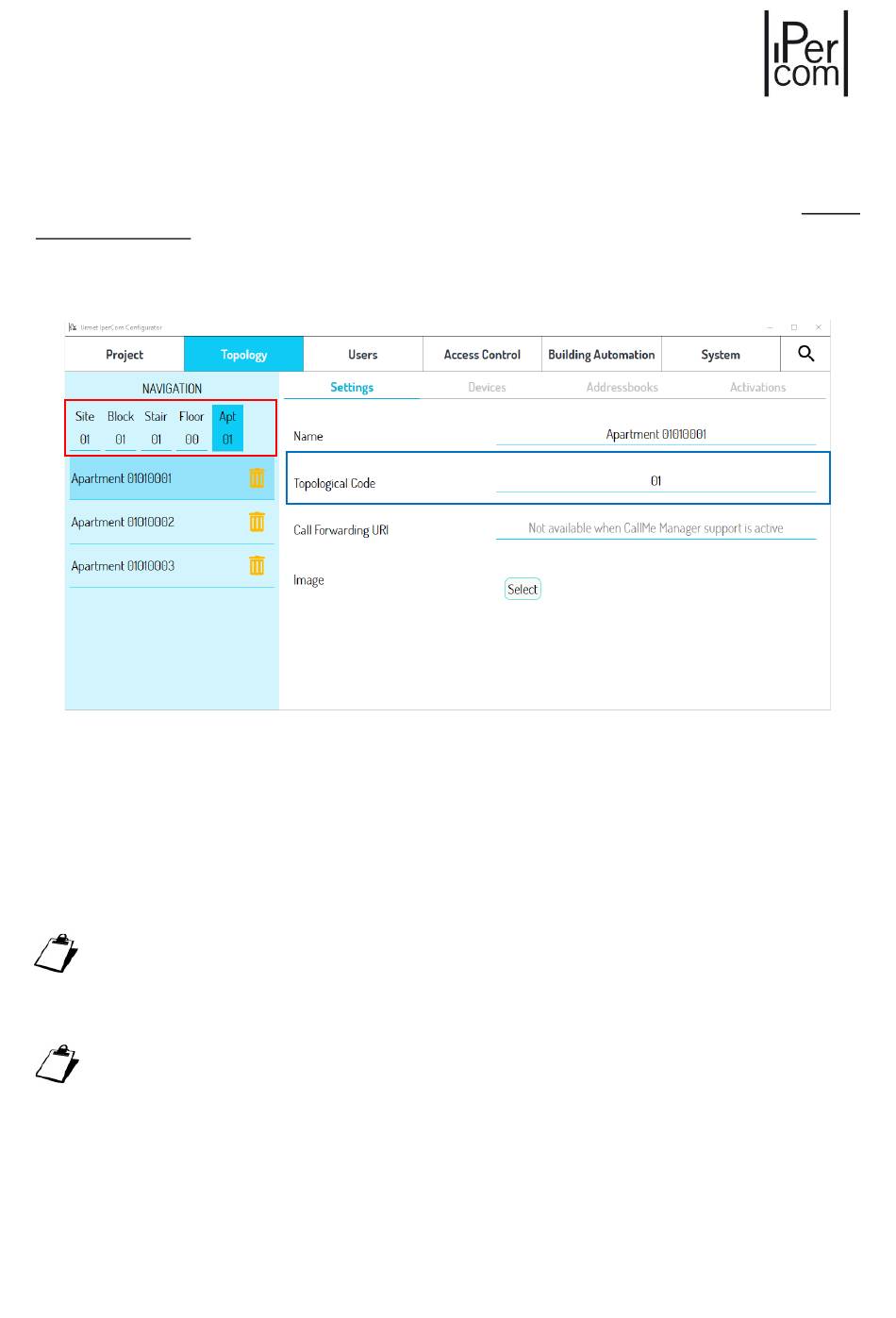

Figure 489: "Settings" screen for topologic addressing
