urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 117

Press the "OK" button at the end of the configuration distribution: the "Site" tab, the "Modified" field on
the project and the system site have the same date and then the "Configuration aligned" field is selected:

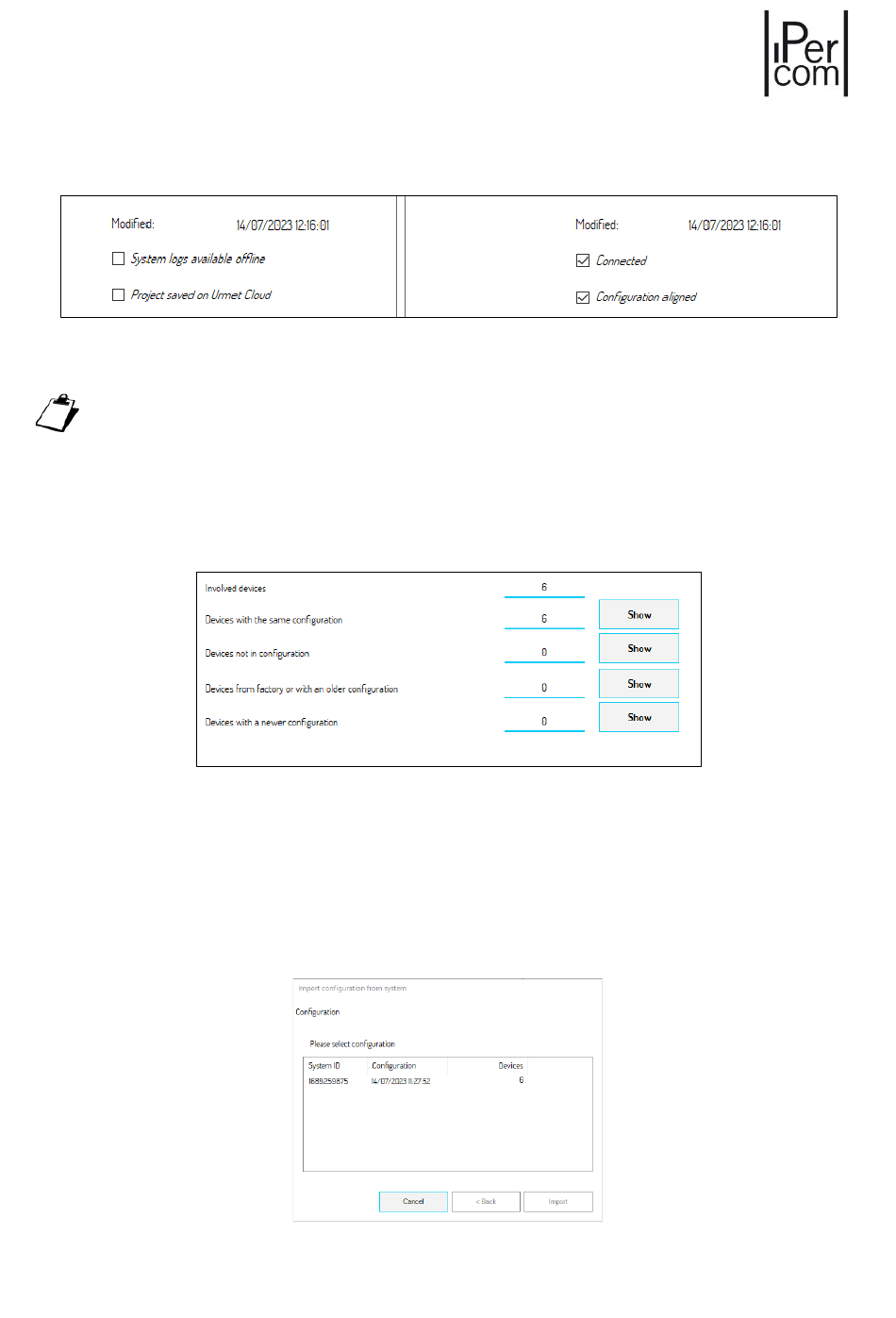

Figure 89: aligned configuration between project and system site
The "Modified" field reports the date and time the configuration was applied.
In the "Configuration" tab, the "Devices with a newer configuration" field is reset to zero, while the
"Devices with the same configuration" field takes the same value as the system devices with the same
configuration associated to the project:
Figure 90: system devices aligned to the project
If, on the other hand, you do not want to lose the modifications made on the system site through the MAX,
7
VOG or Basic video door phone and you want to align the local configuration with the system
configuration, simply press the "From system" button in the "Configuration" tab: in this way the system site
configuration is transferred to that associated to the project. The following screen is displayed, where the
only configuration available on the system must be selected:
Figure 91: window to select the configuration to be imported on the local site
MT124-032N 117
