SECTION 1F
(REV.B)
INSTRUCTIONS FOR
URMET DOMUS DEVICE
INTERCHANGEABILITY
Download from:
www.urmetdomus.com
Technical Manuals area
1
sec.1f −−−−
DOOR PHONE - VIDEO DOOR PHONE SYSTEMS: Installation Diagrams

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the II Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for urmet domus II Series

Summary of Contents for urmet domus II Series

  • Page 1 SECTION 1F (REV.B) INSTRUCTIONS FOR URMET DOMUS DEVICE INTERCHANGEABILITY Download from: www.urmetdomus.com Technical Manuals area sec.1f −−−− DOOR PHONE - VIDEO DOOR PHONE SYSTEMS: Installation Diagrams...
  • Page 2 −−−− sec.1f DOOR PHONE - VIDEO DOOR PHONE SYSTEMS: Installation Diagrams...
  • Page 3 788/8 788/58 788/11 788/52 788/21 788/52 788/30 788/52 RELAY DEVICES 4330/31 788/51 4340/11 788/52 4520/10 788/52 9330 (II series) 788/52 9332/1 788/51 9332/5 788/52 9332/8 788/58 TRANSFORMERS 9000/20 9000/230 or 9000/110 (*) 1201/1 Ranger 1702/1 Atlantico 1201/10 1702/1 Atlantico 1704/1 Sentry...
  • Page 4 REPLACING RELAY POWER UNIT Ref. 786/5A AND Ref. 9006/5 WITH Ref. 786/15 REPLACING RELAY POWER UNIT Ref. 786/5A AND Ref. 9006/5 WITH Ref. 786/15 The 786/15 relay power unit can replace the following obsolete models: • Ref. 9006/5 • Ref. 786/38A Follow the following diagrams according to the type of system in which the power unit is being replaced for correct connection.
  • Page 5 REPLACING RELAY POWER UNIT Ref. 786/5A AND Ref. 9006/5 WITH Ref. 786/15 TRADITIONAL CALL INTERCOM SYSTEMS AND DOOR UNIT With single calls from door unit and door phones with buzzer. Ref.786/5A Ref.786/15 Ref.9006/5 ~12 SN1 Ref.786/15 sec.1f −−−− DOOR PHONE - VIDEO DOOR PHONE SYSTEMS: Installation Diagrams...
  • Page 6 REPLACING VIDEO DOOR PHONE POWER UNIT Ref. 789 WITH Ref. 789/1A REPLACING VIDEO DOOR PHONE POWER UNIT Ref. 789 AND Ref. 789/1A WITH Ref. 789/5B REPLACING VIDEO DOOR PHONE POWER UNIT Ref. 789 WITH Ref. 789/1A The 789/1A power unit can replace the obsolete 789 model. The terminals correspond as follows: Ref.
  • Page 7 REPLACING DOOR PHONE POWER UNIT Ref. 1840/22 WITH Ref. 1090/850 REPLACING DOOR PHONE POWER UNIT Ref. 787/4 WITH Ref. 786/4 REPLACING DOOR PHONE POWER UNIT Ref. 1840/22 WITH Ref. 1090/850 The 1090/850 power unit can replace the obsolete 1840/22 model. The terminals correspond as follows: Ref.
  • Page 8 REPLACING DOOR PHONE TWO-CHANNEL SYSTEM POWER UNIT Ref. 4340/20 WITH Ref. 752/20 REPLACING TWO-CHANNEL SYSTEM DOOR PHONE APARTMENT STATION Ref. 4340/23 WITH Ref. 752/23 REPLACING DOOR PHONE TWO-CHANNEL SYSTEM POWER UNIT Ref. 4340/20 WITH Ref. 752/20 REPLACING TWO-CHANNEL SYSTEM DOOR PHONE APARTMENT STATION Ref. 4340/23 WITH Ref.
  • Page 9 REPLACING VIDEO DOOR PHONE POWER UNIT Ref. 7073, Ref. 7073/1 AND Ref. 7073/2 WITH Ref. 789/1A REPLACING VIDEO DOOR PHONE POWER UNIT Ref. 7073, Ref. 7073/1 AND Ref. 7073/2 WITH Ref. 789/1A The Ref. 789/1 A power unit replace the previous Ref. 7073, Ref. 7073/1 and Ref. 7073/2 power units in all systems except for: 1) Systems with Vidicon camera: Mod.
  • Page 10 REPLACING VIDEO DOOR PHONE POWER UNIT Ref. 7073, Ref. 7073/1 AND Ref. 7073/2 WITH Ref. 789/1A SCOUT AND CAMERA SYSTEMS (CCD CAMERA ONLY) The Ref. 787/1 tone generator is not used because it is replaced by a generator inside the Ref. 789/1 A power unit. Connect jumpers SE1, ~12 during installation.
  • Page 11 REPLACING VIDEO DOOR PHONE POWER UNIT Ref. 7073, Ref. 7073/1 AND Ref. 7073/2 WITH Ref. 789/1A SENTINEL, EXPLORER AND RANGER WITH SWITCHBOARD AND CAMERA SYSTEMS (CCD CAMERA ONLY) Cut the existing jumpers between terminals ~ A, ~0 and between ~B, ~12 of the Ref. 789/1A power unit during installation. SV102-0584A POWER SUPPLY Ref.786/3 NOTE...

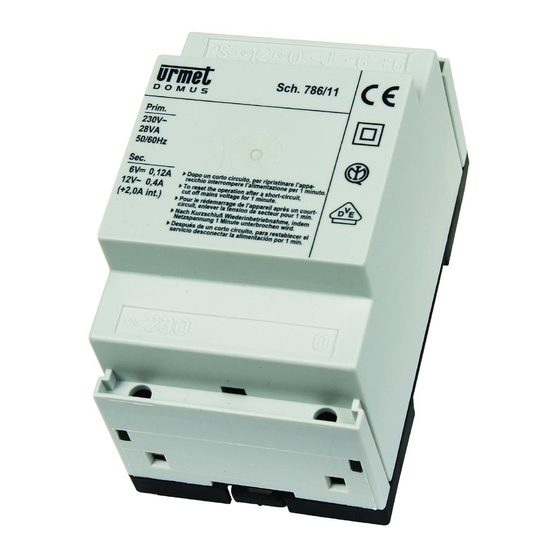

  • Page 12 REPLACING DOOR PHONE POWER UNITS Ref. 9006/1, 9006/2, 9006/14 AND 9006/22 WITH Ref. 786/11 REPLACING DOOR PHONE POWER UNITS Ref. 9006/1, 9006/2, 9006/14 AND 9006/22 WITH Ref. 786/11 The Ref. 786/11 power unit can replace the following obsolete models: • Ref. 9006/1 •...
  • Page 13 REPLACING DOOR PHONE POWER UNITS Ref. 9006/1, 9006/2, 9006/14 AND 9006/22 WITH Ref. 786/11 Ref. 9006/22 Ref. 786/11 Ref. 786/12 (∗) Notes ~110 Not available ~110 POWER ~220 ~230 Not available ~240 Not available Not available Not available Not available OUTPUTS (∗) Not available in Italy.
  • Page 14 REPLACING SWITCHBOARD SYSTEM POWER UNIT Ref. 9006/3 WITH Ref. 786/3A REPLACING DOOR PHONE POWER UNIT Ref. 9008/14 WITH Ref. 786/38A REPLACING DOOR UNIT Ref. 5150/500 WITH Ref. 1128/500 REPLACING SWITCHBOARD SYSTEM POWER UNIT Ref. 9006/3 WITH Ref. 786/3A The Ref. 786/3A power unit can replace the obsolete 9006/3 model. The terminals correspond as follows: Ref.
  • Page 15 REPLACING RELAY BOXES Ref. 788/21, Ref. 788/11, Ref. 4340/11 AND Ref. 4520/10 WITH Ref. 788/21 REPLACING RELAY BOXES Ref. 788/21, Ref. 788/11, Ref. 4340/11 AND Ref. 4520/10 WITH Ref. 788/52 The 788/52 relay box can replace the following obsolete models: •...
  • Page 16 REPLACING RELAY BOXES Ref. 9332/1, Ref. 4330/31 and Ref. 788/1 WITH Ref. 788/1 REPLACING SUPPLEMENTARY VIDEO DOOR PHONE POWER UNIT Ref. 7073/5A WITH Ref. 789/2 REPLACING RELAY BOXES Ref. 9332/1, Ref. 4330/31 AND Ref. 788/1 WITH Ref. 788/1 The Ref. 788/51 relay box can replace the obsolete 9332/1 model. The terminals correspond as follows: Ref.
  • Page 17 REPLACING RELAY BOX Ref. 9330 (II SERIES) AND Ref. 788/30 WITH Ref. 788/52 The Ref. 788/52 relay box can replace the obsolete 9330 II series model (which is not provided with a 150 ohm resistor in series with terminal 12) and 788/30 model.
  • Page 18 REPLACING RELAY BOX Ref. 9332/8 AND Ref. 788/8 WITH Ref. 788/58 REPLACING 12VAC TRANSFORMER Ref. 9000/20 WITH Ref. 9000/230 REPLACING RELAY BOX Ref. 9332/8 AND Ref. 788/8 WITH Ref. 788/58 The Ref. 788/58 relay box can replace the obsolete 9332/8 and 788/8 model. The terminals correspond as follows: Ref.
  • Page 19 REPLACING RELAY BOX Ref. 9332/5 AND Ref. 788/5 WITH Ref. 788/52 REPLACING RELAY BOX Ref. 9330 (II SERIES) AND Ref. 788/30 WITH Ref. 788/52 REPLACING RELAY BOX Ref. 788/4 WITH Ref. 788/54 The Ref. 788/54 relay box can replace the obsolete 788/4 model.
  • Page 20 REPLACEMENT OPTIONS FOR RANGER, EXPLORER, VEDETTE AND SENTINEL IN TRADITIONAL CALL SYSTEM VIDEO DOOR PHONES SYSTEMS REPLACEMENT OPTIONS FOR RANGER, EXPLORER, VEDETTE AND SENTINEL IN TRADITIONAL CALL SYSTEM VIDEO DOOR PHONES SYSTEMS RANGER VIDEO DOOR PHONES WINFLAT+ BRACKET Ref. 1202/590 FOR ADAPTING COAX VIDEO DOOR PHONE SYSTEMS Ranger video door phones Ref.
  • Page 21 REPLACEMENT OPTIONS FOR RANGER, EXPLORER, VEDETTE AND SENTINEL IN TRADITIONAL CALL SYSTEM VIDEO DOOR PHONES SYSTEMS 200 mm 99 mm Service button Service button Door opener button Call volume Contrast adjustment Brightness adjustment The device is provided with the following controls: •...
  • Page 22 REPLACEMENT OF SENTRY VIDEO DOOR PHONES WITH ARTICO SENTRY+ BRACKET REPLACEMENT REPLACEMENT OF SENTRY VIDEO DOOR SENTRY+ BRACKET REPLACEMENT PHONES WITH ARTICO Procure a plastic support Ref.1704/102 and the Artico bracket corresponding to the system in use in the installation to replace a faulty Using the bracket without circuit for the Artico video door phone Sentry+ video door phone bracket: Réf.
  • Page 23 REPLACING DOOR PHONE POWER UNIT Ref. 786/1 WITH Ref. 786/11 REPLACING DOOR PHONE POWER UNIT Ref. 786/14 WITH Ref. 786/11 REPLACING DOOR PHONE POWER UNIT Ref. 786/1 WITH Ref. 786/11 The Ref. 786/11 power unit can replace the obsolete 786/1 model. Ref.
  • Page 24 REPLACING SCAITEL VIDE DOOR PHONE REPLACING SCAITEL VIDE DOOR PHONE Mod.Atlantico (A) Mod.Artico (A) Mod.Scaitel (B) BLACK/WHITE Video door phone Ref.1702/1 Ref.1705/1 Ref.1732/1 Ref.1132/1 Ref.1132/55 Bracket Ref.1202/90 Ref.1705/90 Ref.1732/91 COLOUR Video door phone Ref.1702/40 Ref.1732/41 Ref.1132/1 Ref.1132/55 Bracket Ref.1202/90 Ref.1732/91 SCAITEL VIDEO DOOR PHONE VIDEO MODULE...
