urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 103

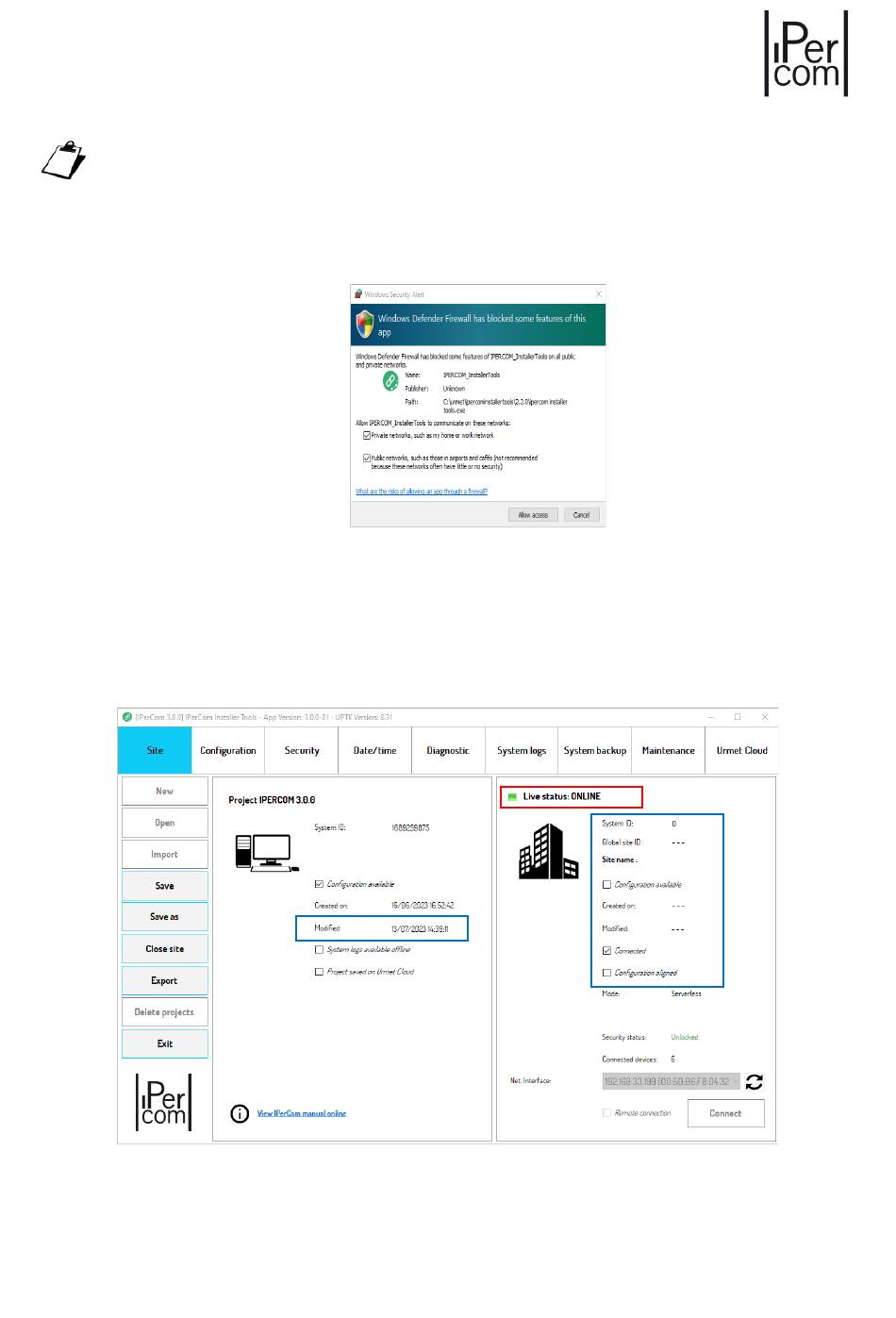

After pressing the "Connect" button, the Windows operating system can notify the user of the need
to unlock the communication ports on the IP network used for communication between the IPerCom
system and the IPerCom Installer Tools application. This operation is required for proper application
operation. If this operation is carried out by Windows Firewall, a warning like the one below is
shown to the user:
You must select both kind of networks and press the "Allow access" button.
A progress bar is displayed, during its progress it is detected whether the system is with Server 1060/1 or
without it, then the number of devices connected to the system is detected. At the end, the following
window is displayed:
MT124-032N
Figure 70: "Site" tab with local configuration created and connection to the system
103
