Numeric keypad module Ref. 1168/46
The numeric keypad module Ref. 1168/46 allows you to make a call using a numerical, logical, topological
code or enter a door opener code to open an access point.

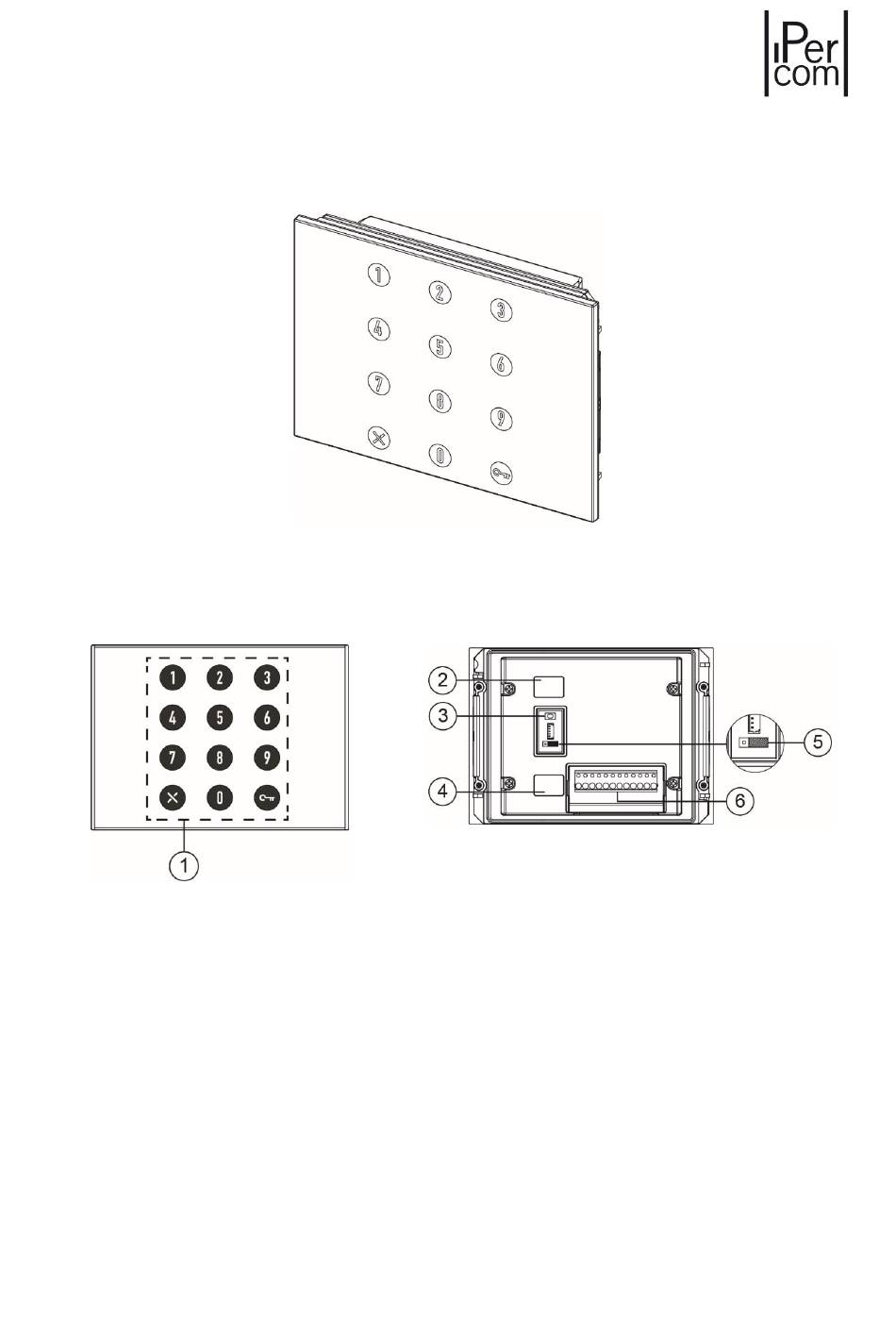

FRONT VIEW
1. 12 soft-touch shortcut keys with backlighting
2. Module connection wire connector (IN)
3. Reset button (PROGRAM)
4. Module connection wire connector (OUT)
5. Terminal board
6. Jumpers for operation in Ipecom systems
722
REAR VIEW
MT124-032N
