urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 303

For example, if you choose the "Short press" event, it will be highlighted with a different colour from the
previous one:
If the input in question were set as bistable, the events displayed would be "ON" and "'OFF".
The input you are associating with the rule passes to the right of the screen, while those not yet
associated remain on the left. In this way, you can associate the inputs of all the relay actuators of
the system with the same rule on a single screen.
Press "OK" button to see a summary of the choices made for the input:
The "Delete" button allows you to delete the rule on the newly created input (by means of a confirmation
pop-up).
MT124-032N

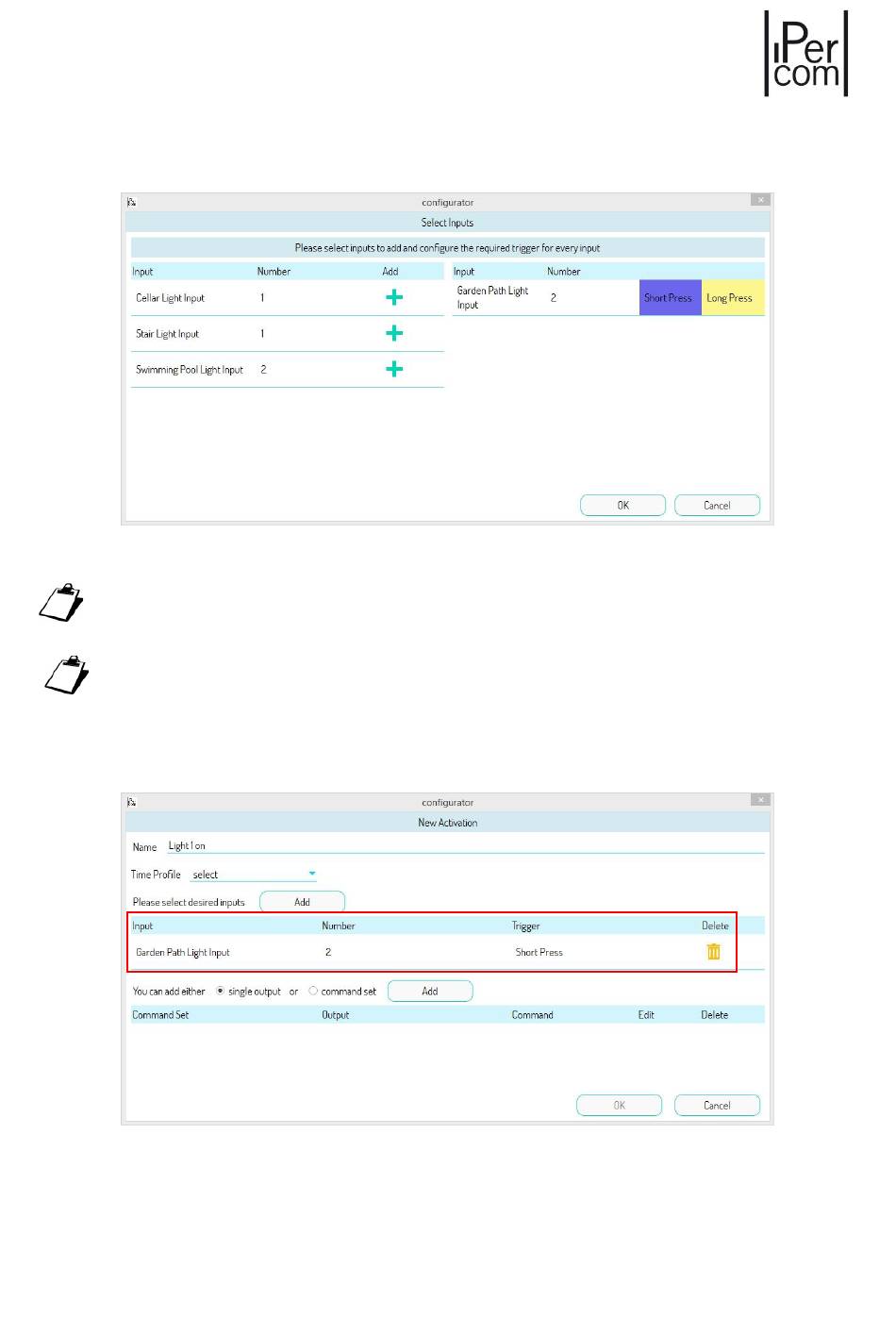

Figure 353: "Short Pressure" event selected
Figure 354: Selected input and event
303
