7.1.4.2 How to call the Switchboards from MAX video door phones, Miro door phones and/or call modules
In the example in Figure 180 there is a Switchboard on block "0102######". Automatically, all MAX video
door phones the topological path of which intercept the switchboard, will have a button in the video door
phone application that can be used to call the respective Switchboard. The MAX video door phones are the
ones included in the topological group of the block node "0102######".
Otherwise, no MAX video door phone in topological group of block "0101######" will have the button
available (the Switchboard is not on their topological path), so the only way to be able to call the
Switchboard is add a "Switchboard" contact in the address book using the "Contacts" tab.
For Door Phones Miro the topological path of which crosses the Switchboard and those which do not, there
is no automatic association of calling buttons with the Switchboard. However, the "Switchboard" contact
can be created and associated with buttons T1 and/or T2 of the generic Miro door phone so that it can be
called.
Finally, also from the Call Module referred to block "0101######", you cannot call the Switchboard using
the dedicated button because the Switchboard is not on its topological path; therefore, also to be able to
call the Switchboard from the Call Module you will need to create the contact in "Address Books".
We will supposed to add to the address book of all MAX video door phones of block "0101######" the
Switchboard, which is placed on block "0102######". In this case, open the " Address books " screen at the
topological node of block "0101######" and create a new contact.

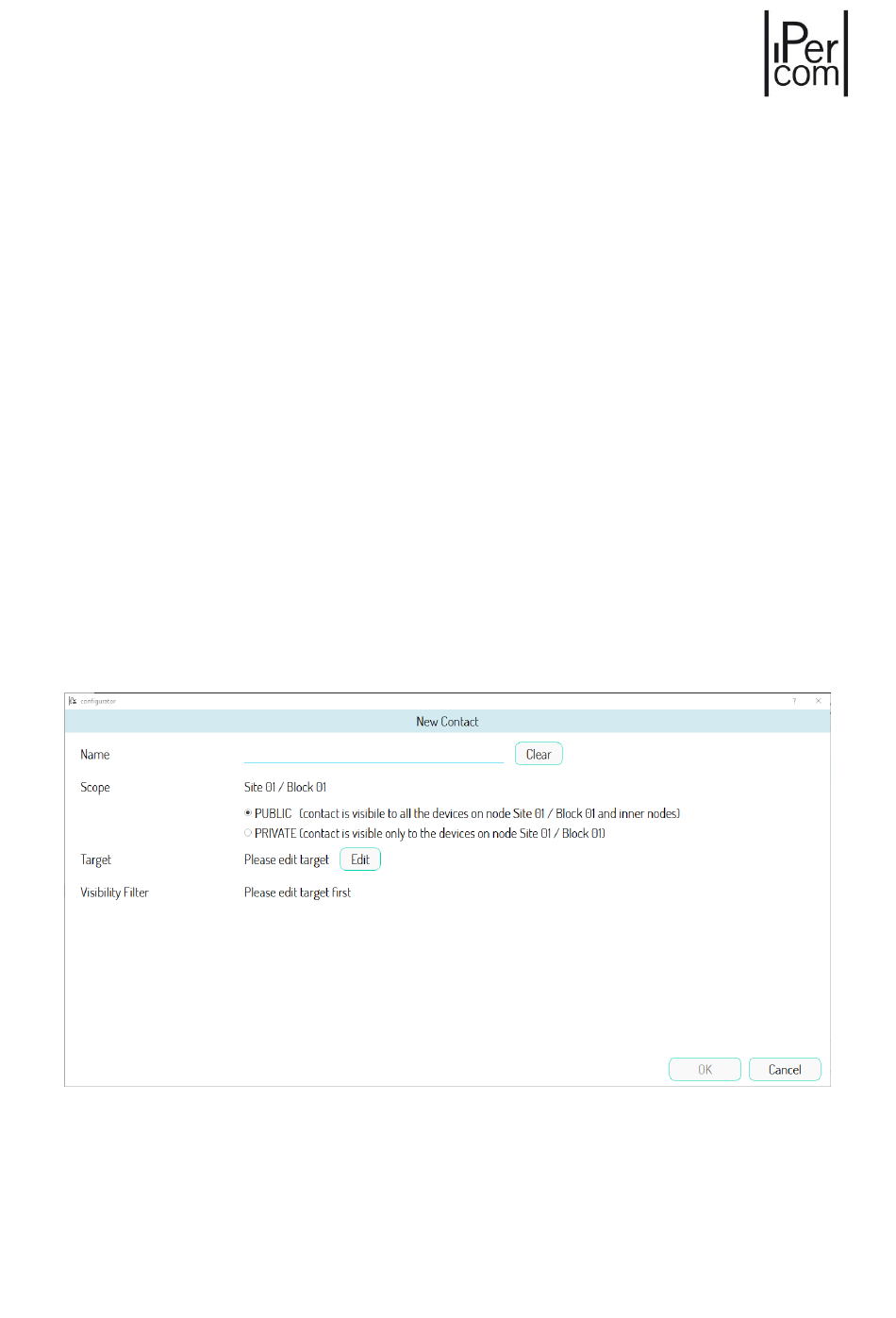

Figure 276: Creating a contact for the switchboard
