The page relating to the configuration parameters of the Call Module opens. In the section relating to the
Gate, the "Enabled" field must be set to the value "Relay actuator", as shown below:
The following fields are shown in automatic way:
•
"Name", that allows to give an appropriate name to the output;
•
"Gate Time (s)", (from 1s to 90s) which allows to configure the relay output in monostable mode
only;
At this point, if you want to create an activation rule linked to a topological event (for example a panic
alarm from an apartment station), the following screen appears:
MT124-032N

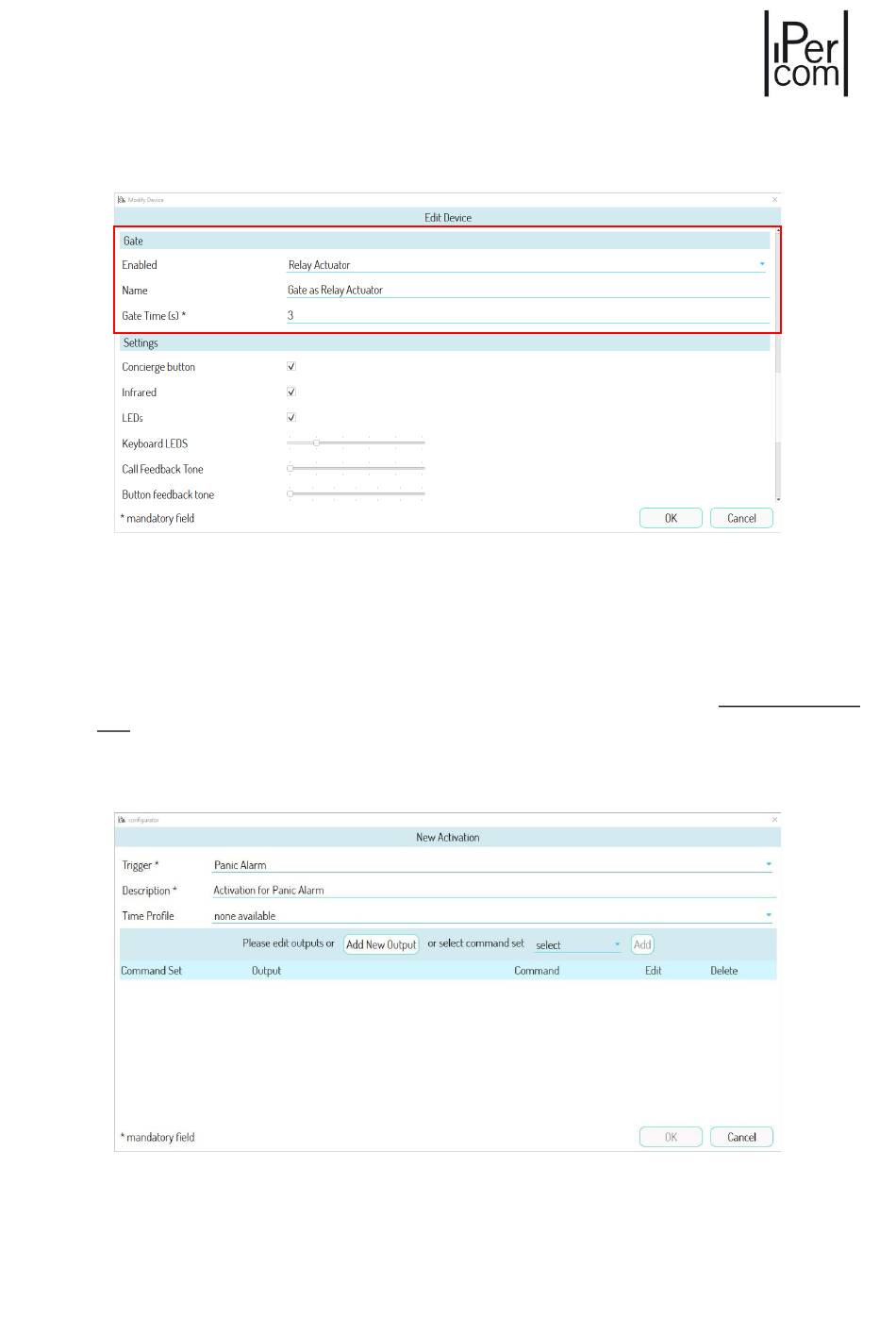

Figure 406: gate contact used as output of a relay actuator
Figure 407: panic alarm topological event
