CASE 3: RTSP C
AMERAS AND
To implement this case, we recommend following the diagram displayed below, where the IP addresses
shown are purely by way of example:
To create the diagram in
1. ROUTER 1
• Enable the DHCP Server and ensure that it assigns addresses of the 192.168.35.x/24 type;
• Set the WAN port to static addressing with an address compatible with the network settings of
ROUTER 2 (for example 10.10.10.2).
2. ROUTER 2
• Disable the DHCP Server and assign to ROUTER 2 an IP address 10.10.10.1;
• Set a 24-bit netmask;
• Connect the WAN port to Internet (optional).
3. RTSP Cameras
• Set the RTSP Cameras addressing in static mode with addresses (for example) ranging from
10.10.10.3 to 10.10.10.20.
652
IP C
ER OM DEVICES ON TWO DIFFERENT SUBNETS

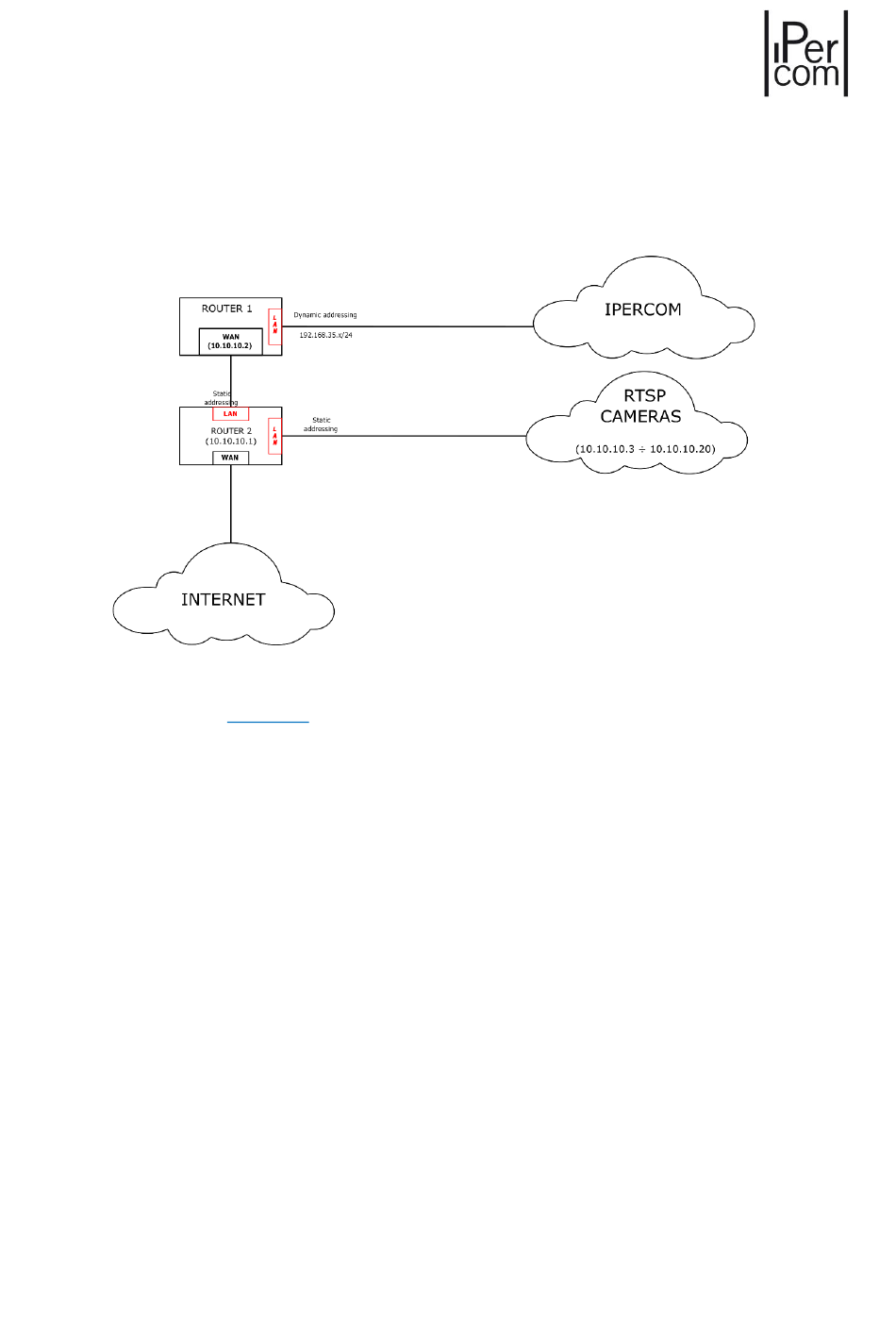

Figure 776: connection diagram for RTSP cameras and IPerCom devices
Figure 776, follow the instructions below.
