urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 290

7.1.5.8.2 Topological events Lift Up and Lift Down
Regarding the selection of the "Lift Up" and "Lift Down" events, these options are only visible if you go in
correspondence of stairs, floors, or apartments, as they are only associated with the use of the lifts.
In a system where there is a Lift Interface or a Relay Actuator, it is possible to create activation rules
7 5+ 5
(maximum 2) that, for example, allow each resident to enable, through the MAX, VOG , VOG , VOG or
Basic video door phone or Miro door phone or IPerCom Client application, the lift to reach either their own
residence floor or the parking of the residential complex.
Position through the navigation module on a floor, on the "Activations" tab, press the Add new activation
button.
In the "Event" field select "Lift Up". It is recommended to enter a meaningful name in the ''Description''
field (e.g., "Lift enabling for floor 5").

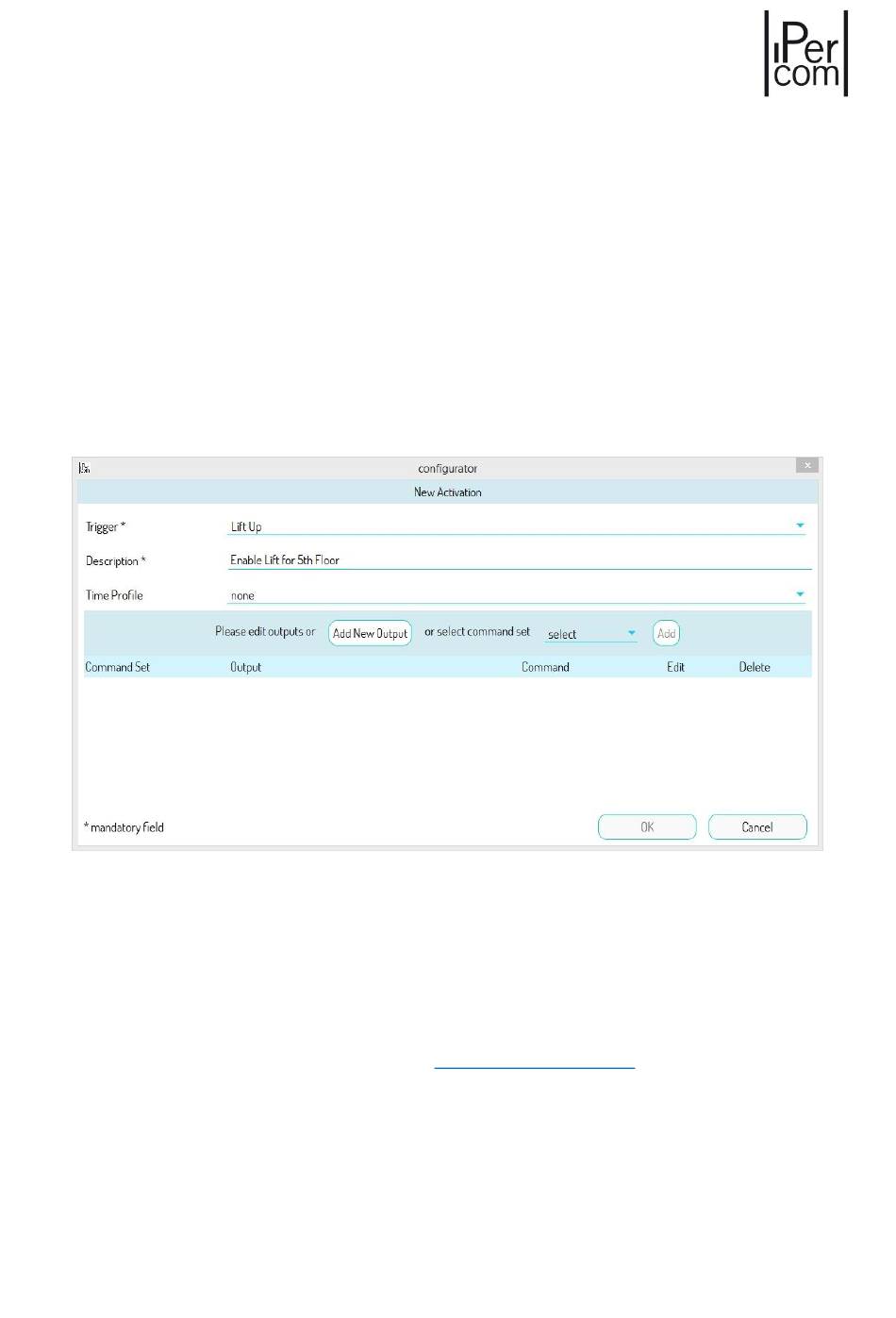

Figure 337: screen for creating an activation with "Lift Up" event
Press the "Add New Output" button to configure the Lift Interface or Relay Actuator relays.
Position through the navigation module on the "Stair" where the device to be configured is located.
In the "Devices" area select the Lift Interface or Relay Actuator.
Select the Lift Interface in the "Control" area to display the relays to be configured. For more details on the
configuration of Lift Interface relays see paragraph "Control Relay Assignment".
290 MT124-032N
