urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 283

If instead "User Activation" is chosen as the event, the following screen will appear:
In the field "Button Name" it is advisable to enter a meaningful name of the activation (for example
"Staircase lights").
The "Filter" field allows you to choose where to add the activation rule as shown below:
•
if the "VDP" item is selected, the rule is added on video door phones with address book, that is
MAX, VOG
•
if you select the "ADP T1" or "ADP T2" items, the rule is added on the VOG
and Miro door phone;
•
if the "CallMe" item is selected the rule is added to the CallMe app;
•
if the "DTMF T7" or "DTMF T8" or "DTMF T9" item is selected, the rule is added on the iPerTAlk
extensions.
For further details regarding the first 3 points above, see the paragraph
video door phones / door phones / CallMe
As regards the last point, however, the choice of the items "DTMF T7" or "DTMF T8" or "DTMF T9" allows
you to drive the output of a Relay Actuator or Lift Interface from an iPerTAlk extension by pressing
respectively button 7 or 8 or 9 only during conversation, that is in more detail in the following scenarios:
- an IPerCom calling station calls an IPerTAlk extension and the latter answers the call;
- an iPerTAlk extension carries out an auto on with two-way audio towards an IPerCom calling
station.
MT124-032N

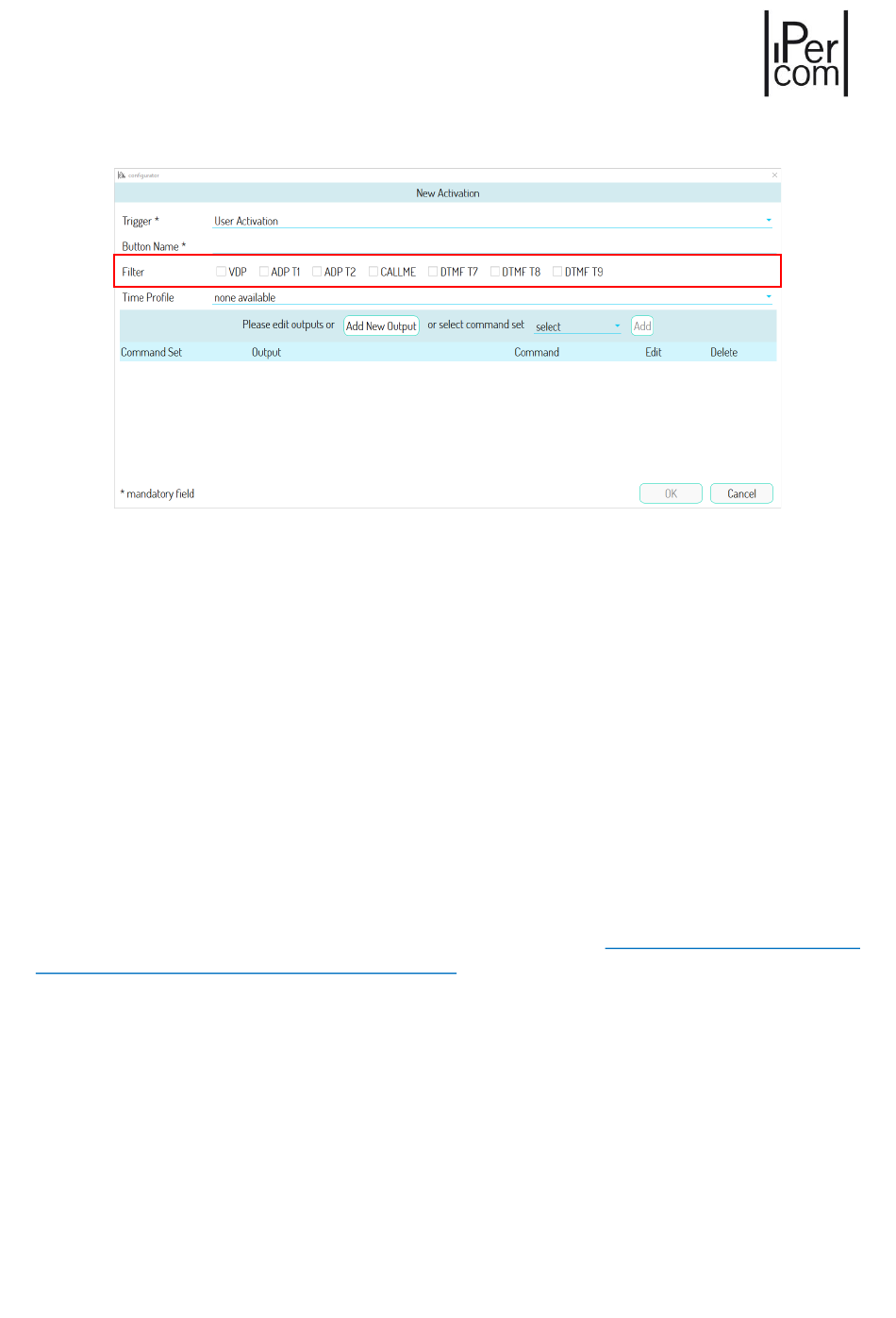

Figure 328: user activation
7 5+
, VOG , Basic and IPerCom Client application;
application.
5
video door phone
Addition of a user activation on
283
