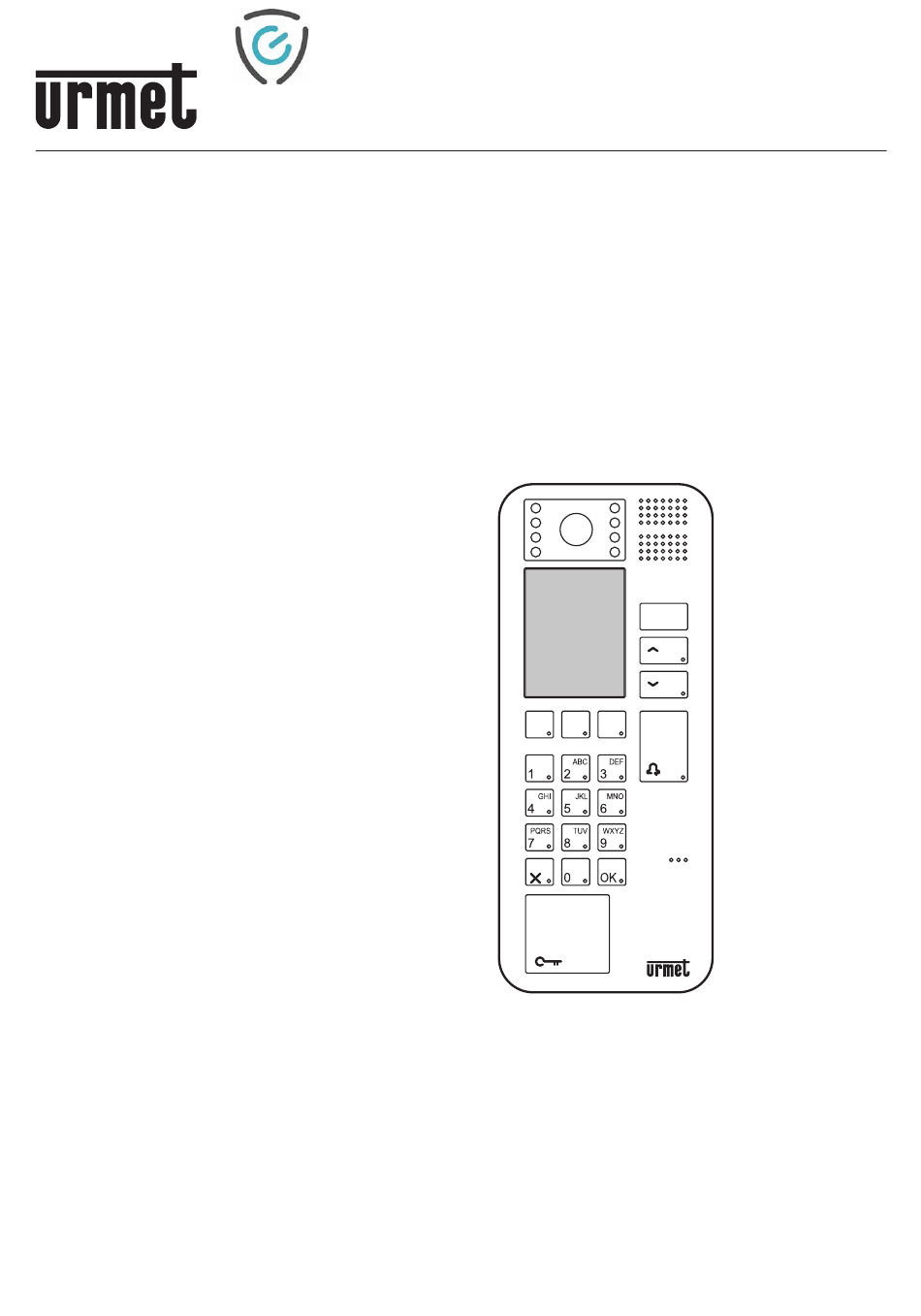

LBT 8836
MODULO DI CHIAMATA 2VOICE ELEKTA ED ELEKTA STEEL
2VOICE ELEKTA ED ELEKTA STEEL CALLING MODULE
Sch./Ref. 1039/18
LIBRETTO DI INSTALLAZIONE, PROGRAMMAZIONE ED USO
INSTALLATION, PROGRAMMING AND USE INSTRUCTION MANUAL
(La documentazione in lingua francese, spagnola e tedesca è scaricabile dal sito www.urmet.com)
(Manuals in French, Spanish and German can be downloaded from www.urmet.com)
Advertisement
Table of Contents
Related Manuals for urmet domus 1039/18
Summary of Contents for urmet domus 1039/18
- Page 1 LBT 8836 MODULO DI CHIAMATA 2VOICE ELEKTA ED ELEKTA STEEL 2VOICE ELEKTA ED ELEKTA STEEL CALLING MODULE Sch./Ref. 1039/18 LIBRETTO DI INSTALLAZIONE, PROGRAMMAZIONE ED USO INSTALLATION, PROGRAMMING AND USE INSTRUCTION MANUAL (La documentazione in lingua francese, spagnola e tedesca è scaricabile dal sito www.urmet.com)
-
Page 2: Table Of Contents
Интернет-магазин Телеком СБ ENGLISH SECTION fOR INSTALLERS ........................40 FUNCTIONS ..............................40 INSTALLATION ELEKTA CALLING MODULE (1083/15) ................40 INSTALLATION ELEKTA STEEL CALLING MODULE (1083/16) ..............41 ELECTRIC CONNECTIONS.......................... 4 Description of terminals ..........................43 VOLUME ADJUSTMENT ..........................43 CALLING MODULE DESCRIPTION ......................44 PROGRAMMING ............................ -
Page 3: Section For Installers
Интернет-магазин Телеком СБ SECTION fOR INSTALLERS fUNCTIONS The functions of the Elekta and Elekta Steel calling modules for two-wire systems are: • Possibility of calling all potential system users (18 apartments on 3 risers, equal to 4096 apartments in total) by keying in a physical code or selecting the name directly (the name list can be scrolled or searched by initial). -
Page 4: Installation Elekta Steel Calling Module (1083/16)
Интернет-магазин Телеком СБ INSTALLATION ELEKTA STEEL CALLING MODULE • Arrange the duct so that it ends at the lower hole of the flush-mounting box. • Remove the lower cap from the wire hole (1). • Apply adhesive labels on the holes for the screws of the frame (). • Install flush-mounting box at indicated height (3). • Fix the frame to the flush-mounting body (4). • Establish the electric connections. •... -
Page 5: Electric Connections
Интернет-магазин Телеком СБ A L T Special tamper-proof screws M4 x 20 screws ELECTRIC CONNECTIONS Refer to the information contained in the system manual for more information on wiring, maximum distances and reference wiring diagrams. The calling module is provided with an extractable terminal board to facilitate connection operations. DS1083-041... -
Page 6: Description Of Terminals
Интернет-магазин Телеком СБ DESCRIPTION Of TERMINALS ILA + - CT PA SP S+ S- LINE C NC NO Pedestrian electrical lock with capacitance discharge actuation positive Pedestrian electrical lock with capacitance discharge actuation negative LINE Two-wire bus line in LINE Relay electrical lock (NO - normally open contacts) (vehicle entrance) Auxiliary relay output - common contact (for pedestrian door) Auxiliary relay output - normally closed contact (for pedestrian door) -

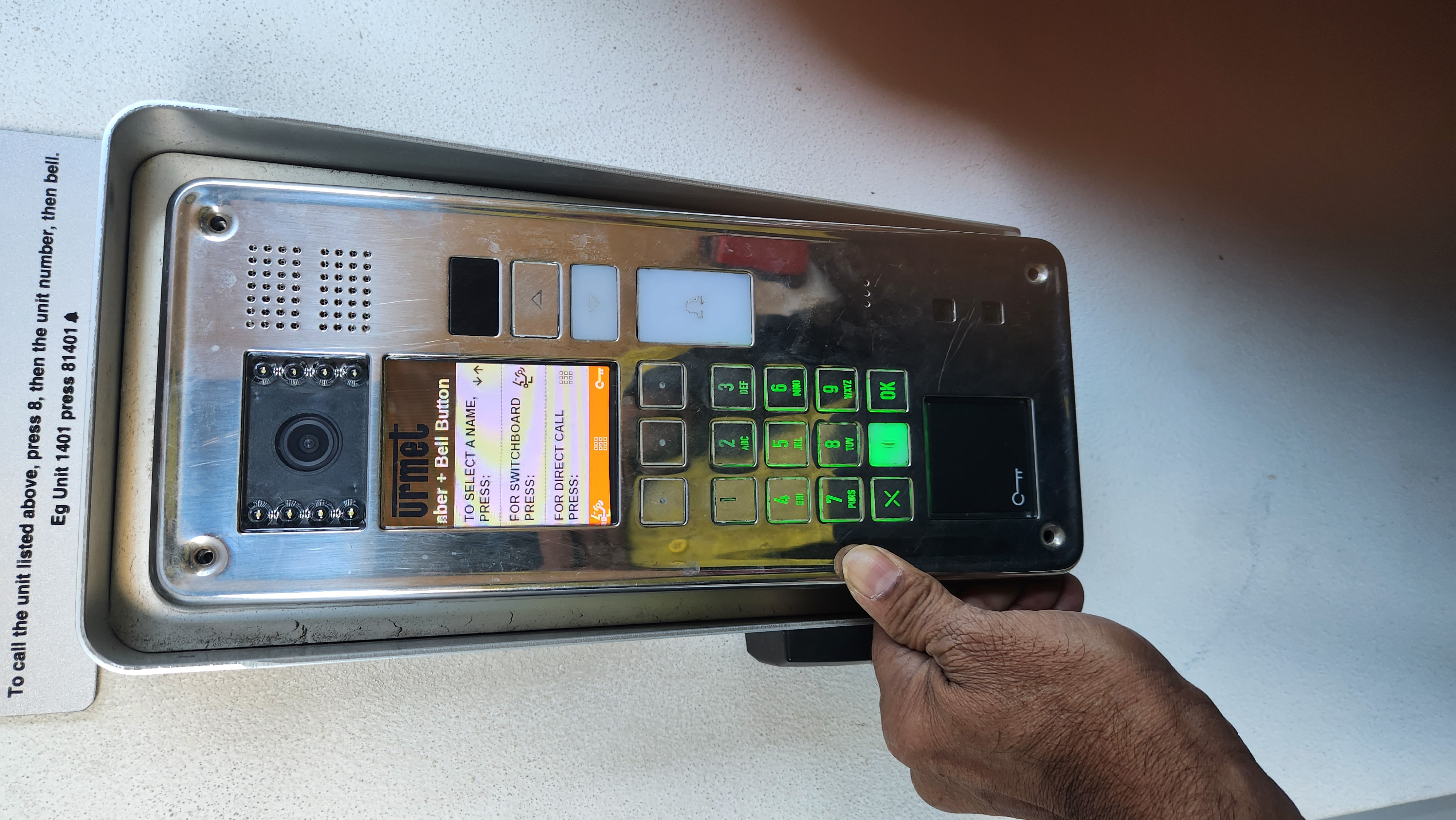

Page 7: Calling Module Description
Интернет-магазин Телеком СБ CALLING MODULE DESCRIPTION Transponder key reader Keypad Dynamically configured short-cut buttons The icon over the button indicates the available function Colour display, 30 x 40 pixel Camera with LED lighting Speaker IR presence sensor Scroll buttons: Call button 10 - Microphone DS1083-041... -
Page 8: Programming
Интернет-магазин Телеком СБ PROGRAMMING MENU STRUCTURE LANGUAGE CONFIGURATION NAMES DOOR OPENER PRIMARY SECONDARY KEYS MODULE TYPE RESET MULTIRISE RISE NUMBER ID PRIMARY MODULE ID SECONDARY MODULE CODE TYPE AUTOMATIC FIT (*) BUSY TIME STOPPABLE DOOR LOCK RELEASE TIME 1 OPEN DOOR 1 DOOR LOCK RELEASE TIME 2 OPEN DOOR 2 PASSWORD... -
Page 9: Parameter Configuration
Интернет-магазин Телеком СБ PARAMETER CONfIGURATION Program the calling module after having installed it by configuring the following parameters. PARAMETERS TABLE Default Parameter Description Possible values settings Italiano, English, Français, Deutsch, Español, Polski, Language Language used on the display Čeština. ITALIANO Slovencina, Nederlands, Magyar, Português Select primary or secondary module. All system users may be called from the primary module. - Page 10 The door unit lock release type and lock output activation time. The type may be: Secret: pressing the door opener button on an apartment station will activate the door unit Type: SECRET, Type: Door lock output only after having received a call or during FREE SECRET release...
-
Page 11: Programming Procedure
Интернет-магазин Телеком СБ PROGRAMMING PROCEDURE The device is programmed using a specific password-protected multiple level menu. The menu options can be scrolled and selected, together with the parameter values, by using the buttons. Press OK to confirm the selection. Press X to cancel the selection and go back to the previous menu level. Hold X pressed for longer than three seconds to exit module programming mode at any time. The system will go back to the calling module main page when closing programming mode. - Page 12 Интернет-магазин Телеком СБ Enter the password (default password: 1000) and press OK to confirm. The page by the side will appear and the keypad will be deactivated if the password is not correct. wait for approximately 3 seconds before attempting to enter the password again. IMPORTANT: If you set a new password instead of the default one and loose it, ask Urmet Customer Care for a temporary password to access programming mode, read the lost password and set a new one.
- Page 13 The procedure for programming all calling module parameters is described below. Some parameters do not need to be programmed. Select only the relevant menu items if some default values are already correct or to modify only some parameters of a previously configured module;...
- Page 14 The page shown here by the side will appear if PRIMARY calling module type is selected. Select YES for multiriser systems or NO otherwise and press OK to confirm the selection. Set the identification code (ID) of the primary module on the keypad and press OK to confirm the selection. Permitted values: 0...3. An error will appear when exiting configuration mode and returning the device to normal operating mode if a previously used ID is set.
- Page 15 Интернет-магазин Телеком СБ buttons and press OK to Select the user CODE TYPE used with the confirm. • Physical code: 5 digits, consisting of riser number (00...31) + apartment number (000...17). • Logical code: up to four digits long, permitted values: 1...9999 The AUTOMATIC FIT function automatically replaces physical codes with sequential logical codes from 1 to 127 according to the following pattern: Physical code Logical code...
- Page 16 Интернет-магазин Телеком СБ Set the release time of door lock 1 (voltage to the SE+/SE- terminals and actuation of the C-NO relay) on the keypad and press OK to confirm the selection. Permitted values: 1…90 seconds, with 1 second increments. Select the behaviour of DOOR LOCK 1 with the buttons and press OK to confirm.
- Page 17 Интернет-магазин Телеком СБ Modify the default calling module password by entering a new four-digit code using the keypad and pressing the OK button to confirm. Press X to cancel an incorrect digit. Permitted values: 1000…9999. Select the LCD BACKLIGHT level of the display with the buttons and press OK to confirm.
- Page 18 Type in the wELCOME MESSAGE on the keypad and press OK to confirm. The message may consist of two lines of up to 16 characters each. Move the cursor using the buttons. The cursor will automatically move to the second line at the end of the first line. Press to go to the next line to enter a word less than 16 characters long.
- Page 19 buttons and press OK to confirm. Select the COUNTRY with the The page shown by the side will appear if there are multiple time zones in the selected country. Select the required REGION (time zone) with the buttons and press OK to confirm. Set the date in dd/mm/yyyy format and then select the time in hh:mm format (permitted values: 00:00 ... 23:59).
- Page 20 buttons and press OK to Select the POSTMAN function with the confirm. The postman function is activated for the specified days and times programmed as shown below. Postman This function is used to open the door from the door unit (lock connected to the SE+/SE- terminals and to the C-NC-NO relay contacts) by pressing the T or P button in the short-cut menu of the calling module.
- Page 21 Start time coinciding with the end time or end time before the start time will be considered errors. The page shown here by the side will appear and the keypad will be deactivated for approximately three seconds in case of error. Repeat the postman function programming procedure and select the service times for the other days of the week.
- Page 22 NAMES The second level NAMES menu is used to add new names, edit existing names, and to delete one or all names from the database. Select NAMES from the main menu. The menu shown here by the side will buttons and press OK to appear.
- Page 23 The page shown here by the side will appear and the keypad will be deactivated for approximately three seconds if the code is incorrect. The page shown here by the side will appear if the module is configured to use logical codes (see Configuration paragraph). Combine the LOGICAL CODE which identifies the apartment. The code is formed by a number up to four digits long (permitted values: 1…9999).
- Page 24 The page shown here by the side will appear and the keypad will be deactivated for approximately three seconds if the code is incorrect. The new user will be added to the database and the system will go back to the NAMES menu. Modify To edit a name or the parameters paired to it, select the name to be edited buttons and press OK to confirm.
- Page 25 Интернет-магазин Телеком СБ Delete all Press OK to delete the entire database containing names and paired parameters or press X to cancel the operation. IMPORTANT: The deletion operation cannot be undone. DOOR OPENER The second level DOOR OPENER code can be used to configure up to 100 door codes which are not linked to any name or physical code. These codes may be used by maintenance personnel, for instance. The menu can be used to add new codes, edit exiting codes and delete one or all codes from the database.
- Page 26 Интернет-магазин Телеком СБ The page shown here by the side will appear and the keypad will be deactivated for approximately three seconds if a code which is already present is confirmed. The page shown here by the side will appear and the keypad will be deactivated for approximately three seconds if the code length is incorrect.
- Page 27 Интернет-магазин Телеком СБ Press OK to confirm deletion or press X to cancel it. IMPORTANT: The deletion operation cannot be undone. Delete all Press OK to delete all door codes or press X to cancel the operation. IMPORTANT: The deletion operation cannot be undone. KEYS The second level KEYS menu can be used to acquire new transponder keys and delete one or all keys acquired by the calling module.
- Page 28 Интернет-магазин Телеком СБ Position the transponder key to be acquired near the key reader of the calling module. The message “KEY STORED” will appear for two seconds when the key is acquired. Repeat the operation for all the keys to be acquired. At the end, press OK to exit the acquisition step and go back to the previous menu.
- Page 29 Интернет-магазин Телеком СБ Press OK to confirm deletion or press X to cancel it. IMPORTANT: The deletion operation cannot be undone. Delete all Press OK to delete all transponder keys or press X to cancel the operation. IMPORTANT: The deletion operation cannot be undone. RESET The second level RESET menu can be used to restore the default settings (configuration parameters only, i.e.
-
Page 30: Bluetooth Programming
Интернет-магазин Телеком СБ Press OK to confirm the reset operation or X to cancel and go back to the main menu. BLUETOOTH PROGRAMMING The calling module can be programmed directly or alternatively using a personal computer (PC) or a portable device (tablet or mobile phone) with Bluetooth interface and dedicated software. -
Page 31: Section For Users
SECTION fOR USERS CALLING MODULE DESCRIPTION Transponder key reader Keypad Dynamically configured short-cut buttons The icon over the button indicates the available function Colour display, 30 x 40 pixel Camera with LED lighting Speaker IR presence sensor Scroll buttons: Call button 10 - Microphone HOW TO USE THE CALLING MODULE CALLING USING A PHYSICAL OR LOGICAL CODE The home page of the calling module is shown here by the side. - Page 32 Enter the code on the keypad. The page shown by the side will appear. Press the button again to make the call. Press C to delete mistakes made while keying in. A page containing an error message will appear for two seconds if an incorrect code is entered.
- Page 33 The message shown here by the side will appear if the apartment unit does not reply within 60 seconds. If the communication is activated on the apartment unit, the calling module will enter conversation mode and the message shown by the side will appear on the display.
-
Page 34: Calling By Name
CALLING BY NAME The home page of the calling module is shown here by the side. The “FOR SWITCHBOARD PRESS” option is only present if a door phone switchboard is configured on the calling module. Select the name using the buttons and press the button to make the call. - Page 35 Enter the door opener code and press OK to confirm. Press C on the short-cut menu to enter the digit to the left of the cursor if you make a mistake. The cursor can be moved onto the numeric string using the buttons.
-
Page 36: Opening The Door Using A Transponder Key
OPENING THE DOOR USING A TRANSPONDER KEY Pass the transponder key near the reader on the calling module. This operation may be carried out also during a conversation with an apartment station. The message shown here by the side will appear for two seconds if the key is not valid. -
Page 37: Call To Switchboard
CALLS TO SWITCHBOARD The home page of the calling module is shown here by the side. The “SELECT NAME wITH AND PRESS ” option will only be present if names are stored in the repository. Press the button once to be put into contact with the operator. AUTO-ON The door module camera can be turned on from the apartment station. -
Page 38: Maintenance
The warning message shown here by the side will appear on the display if the code is in the [0-54] range. Sending the code is not confirmation that the command was carried out. The warning message shown here by the side will appear on the display if the code is not in the range.
