urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 305

Go to the topological node of the Relay Actuator 2, select the concerned device, then choose the output
and set the respective command:

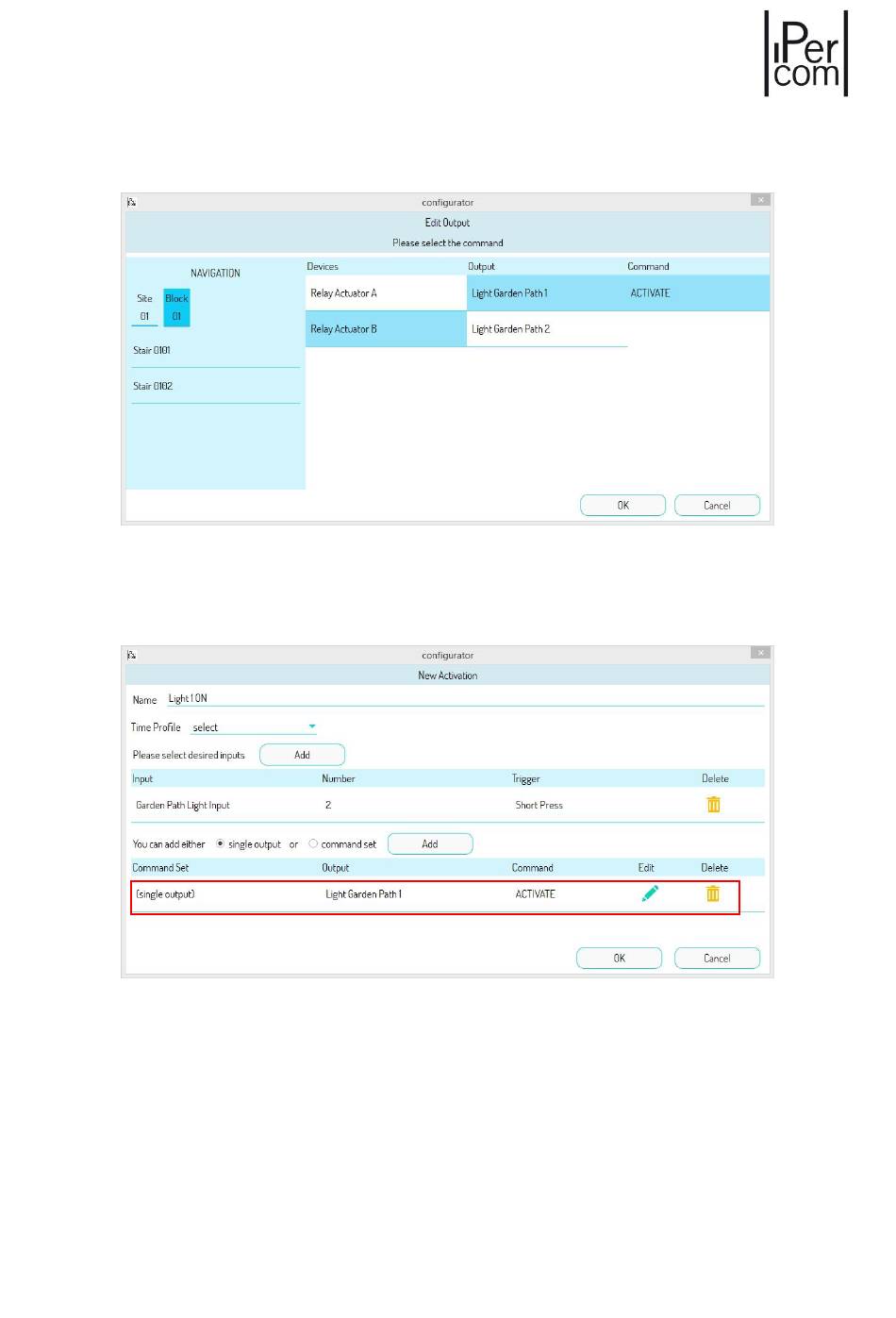

Figure 357: Topological structure navigation for relay actuator search, output selection and respective command
Press the "OK" button to open the following screen with a summary of the choice made regarding the
output:
Figure 358: Selected output and respective command
The buttons in the "Edit" and "Delete" columns can be used to modify or delete the output and the
respective command (via confirmation pop-up), respectively.
MT124-032N 305
