urmet domus IPerCom 3.1.0 System Technical Manual For The Installer page 214

A "A " .
DDING DEVICES TO THE CONFIGURATION USING THE DD NEW DEVICE BUTTON WITH CONNECTION TO THE SYSTEM
This procedure is like the first one with the only difference that in the device configuration phase for
entering the MAC address, it is useful to use the "..." button, as shown in the figure in the case of a
MAXvideo door phone:

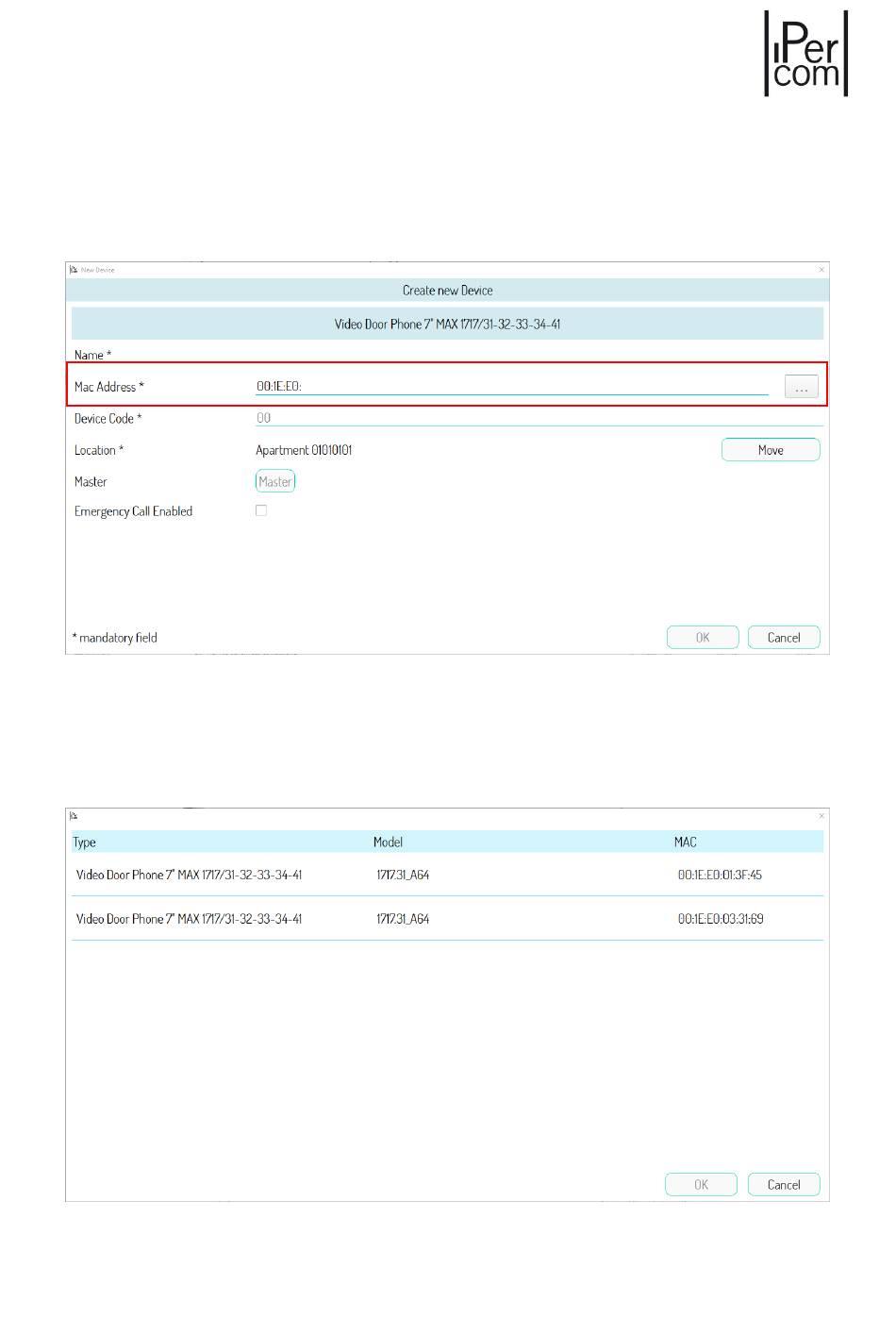

Figure 233: MAC address entry when connected to the system
By pressing the "..." button and then the "Scan" button, a list of all the MAX video door phones installed in
the system with their MAC address but not yet added to the configuration is displayed:
Figure 234: list of devices installed but not configured
214 MT124-032N
