7.1.5.8 Activations for topological events
To associate a topological event to one or mode outputs of a Relay Actuator, Lift Interface, or gate of a
calling station it is necessary to click on the "Topology" tab and then on the "Activations" tab.
In the provided example, the created topology includes one stair with 2 floors and 1 apartment on each
floor.
In this example, we will assume a Relay Actuator positioned on the stairs configured to have two
monostable outputs (see
The activation rule can be set at a specific topological point of the system, i.e. on site, block, staircase, floor
or apartment level. This means that the activation will be propagated to all the apartments (generally on all
nodes) contained in the topological group of the node on which the rule is created. If the activation has
been set on an apartment, it will only apply to that single apartment.
In the case of the figure above, the activation rule will be set to "Stair 01" (since you have selected that
topological node in the navigation module) and then it will be applied to both apartments.
The propagation of the activation rule does not depend on the topological position of the Lift
Interface or Relay Actuators or calling stations in the system but only on the topological group of the
node where the rule is created.
MT124-032N

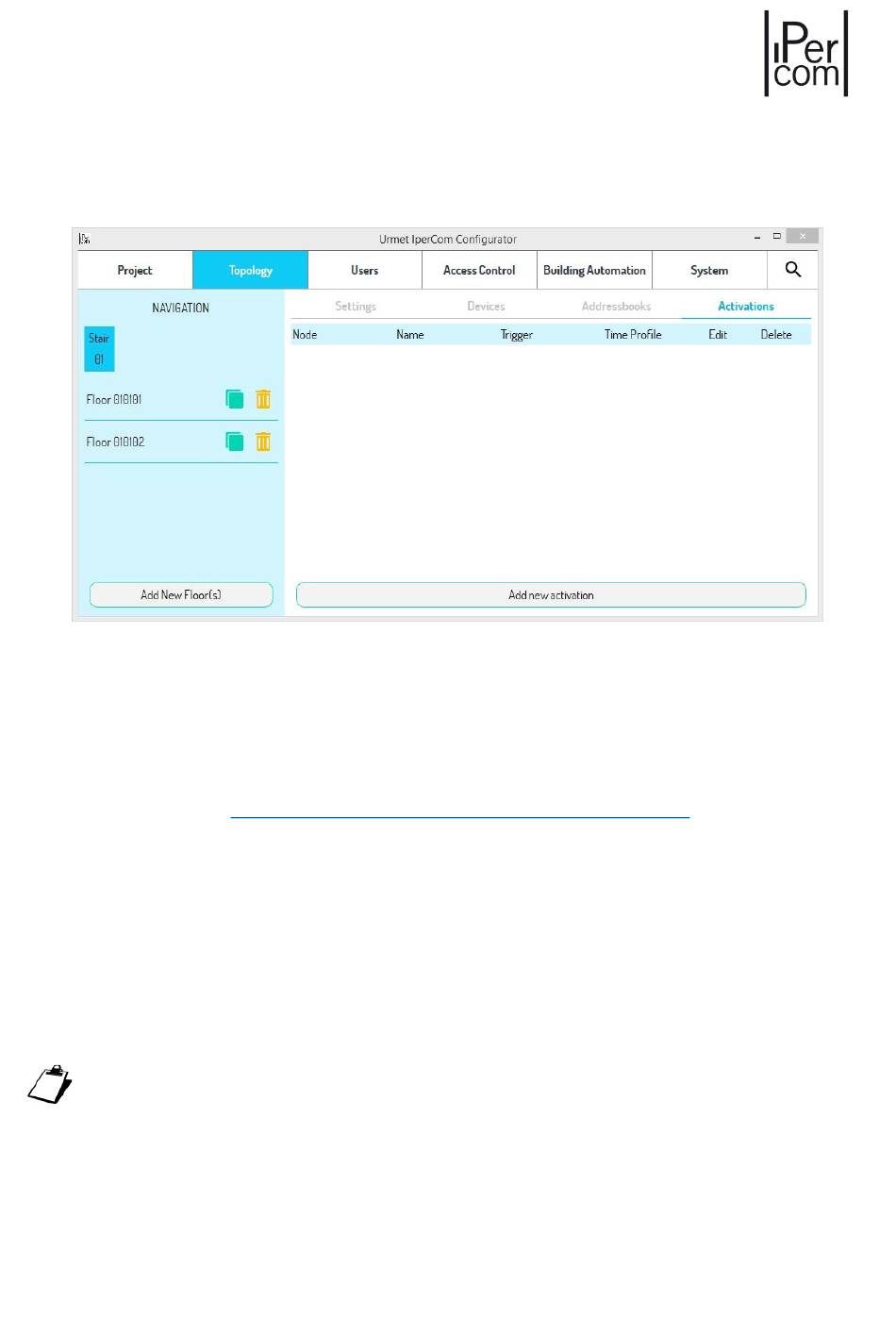

Figure 322: "Activations" screen
APPENDIX A: Configuration parameters of IPerCom devices)
