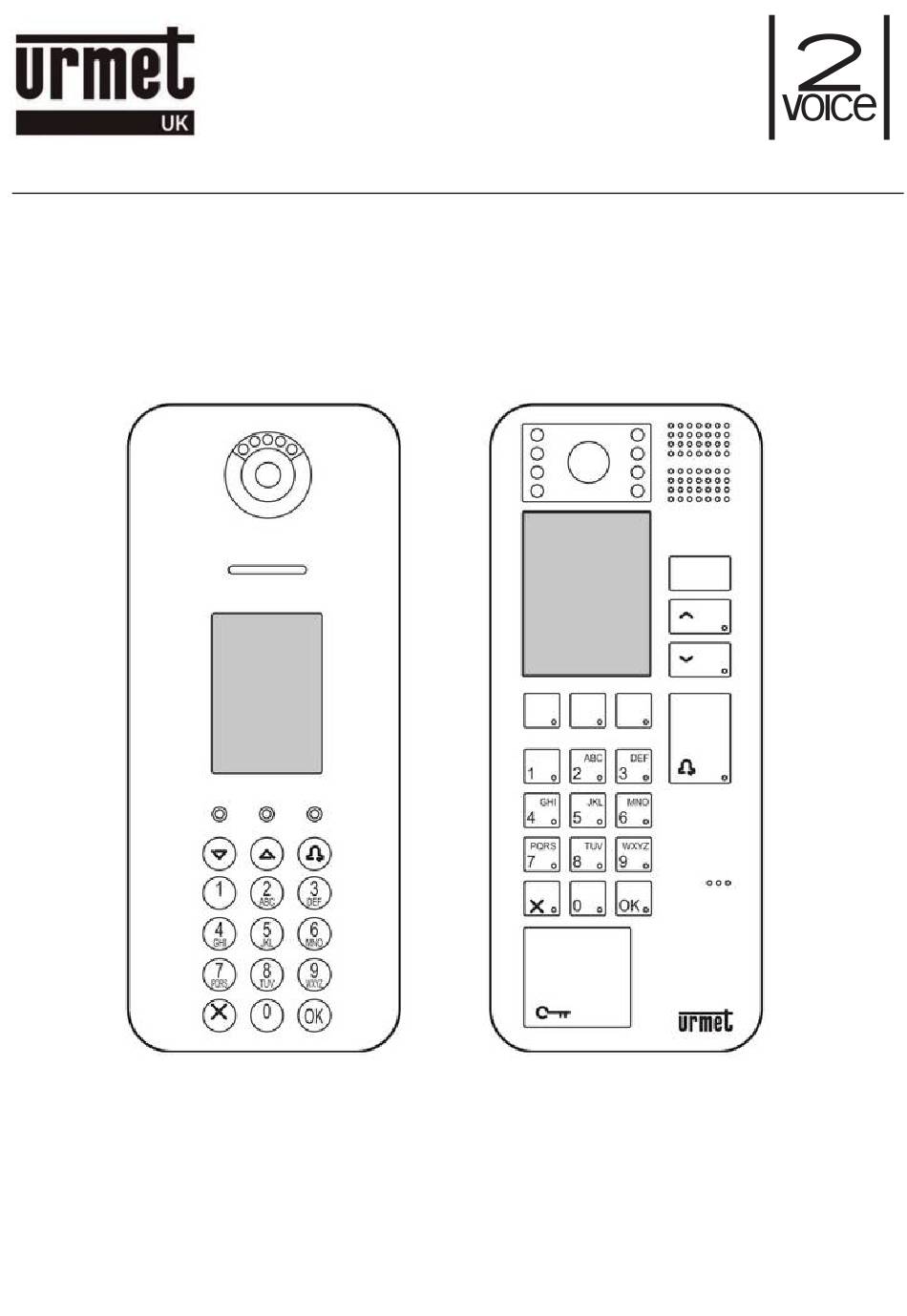

- Page 1 1083/12 - 1083/15 - 1083/16 Programming guide System Type C...
-
Page 2: Table Of Contents
Contents Contents Contents Introduction Introduction Introduction Page 1 Page 1 Menu structure Menu structure Menu structure Page Page 4 Configuration procedure Configuration procedure Configuration procedure Configuration procedure Configuration procedure Page Page 5 Programming proximity access keys Programming proximity access keys Programming proximity access keys Programming proximity access keys Programming proximity access keys... -
Page 3: Introduction
Introduction This programming guide is intended specifically for a particular type of system – System Type C System Type C - One (or up to a maximum of four) ‘Main’ entry panels i.e. panels which call all apartments in the system. The apartment numbers are in any range. - Page 4 ADDRESS ADDRESS ADDRESS 3 In System Type System Type System Type C it is it is necessary to make an necessary to make an necessary to make an necessary to make an association between the real apartment association between the real apartment association between the real apartment association between the real apartment association between the real apartment...
- Page 5 Apartment number (postal address) 4 Binary address 003 1083/20 1083/50 1083/20 1083/75 Binary address 00 The full binary address of apartment 4 is made up from the address of the 1083/50 Riser Distributor (between 00 and 31) in this case , and the address of the monitor (between 000 and 127) –...
-
Page 6: Menu Structure
Menu Structure LANGUAGE CONFIGURATION NAMES DOOR OPENER KEYS SIMPLIFIED GUI RESET MODULE TYPE MULTIRISE ID PRIMARY MODULE CODE TYPE BUSY TIME STOPABLE DOOR LOCK 1 RELEASE TIME DOOR LOCK 1 DOOR LOCK 2 RELEASE TIME DOOR LOCK 2 PASSWORD LCD BACKLIGHT BUTTON SOUND MULTITOUCH CALL WELCOME MESSAGE... -
Page 7: Configuration Procedure
Configuration procedure When the unit is first powered the screen is as follows – 99999 On the entry panel keypad press and you will see this screen – 1000 Enter (the default password) then press Use the buttons to select LINGUA and press Use the... - Page 8 You see this screen – LANGUAGE CONFIGURATION CONFIGURATION Press the button to select then press Use the buttons to select and press PRIMARY Use the buttons to select and press PRIMARY SECONDARY Use the buttons to select and press Page 6...
- Page 9 In a system with only one entry panel the ID is always . In this case just press In a system with two, three or four panels, each must have a different ID. The ID of the panel is determined by where it is connected in the system. You must refer to the connection diagram of your system for the ID of each panel.
- Page 10 DOOR LOCK 1 RELEASE TIME adjusts the voltage free relay (C NO NC) time and also the solid state lock release output (SE+ SE-) time. For example for a time of 10 seconds press FREE Choosing means that the door can be opened by the monitor or handset at any time without the monitor or handset being called.
- Page 11 PASSWORD Change the if required by pressing the button below to delete the current password - Enter the new password and press Adjusts the panel display backlight Use the buttons to make a selection then press The entry panel button confirmation beep can be Use the buttons to make a selection then press It is possible that when a number of buttons are pressed at the same time, a...
- Page 12 WELCOME MESSAGE can be entered. This is the message which visitors will see when they approach the panel, for example the Block Name. The message can be two lines with each line having a maximum of sixteen characters. Use the keypad characters to enter the welcome message. to correct mistakes.
- Page 13 Use the buttons to select the then press POSTMAN If you are not using the (TRADES) function then select and press POSTMAN To use the function choose then press Choose whether the POSTMAN function will work on MONDAY by selecting ON or OFF then press Enter the FROM time.
- Page 14 POSTMAN ICON can be Use the buttons to select then press VOCAL SYNTHESIS (entry panel spoken instructions for example “Door open” ) can be switched Use the buttons to select then press SWITCHBOARD If there is a concierge select and press Otherwise select and press NAMES...
- Page 15 Use the buttons to select then press In this example we are going to make an association between apartment 4 (postal address 4) and the address set on the 1083/50 Riser Distributor + the address set on the monitor or handset DIP switches as follows - Using the entry panel keypad, enter (The ‘NAME’...
- Page 16 Just press Repeat the above for all apartments. Repeatedly press to exit from the programming menus Page 14...
-
Page 17: Programming Proximity Access Keys
Programming proximity keys 99999 On the entry panel keypad press and you will see this screen – 1000 Enter (the default password) then press KEYS Use the buttons to select and press LANGUAGE KEYS Use the buttons to select and press ... -
Page 18: Programming Door Open Codes
Programming door open codes 99999 On the entry panel keypad press and you will see this screen – 1000 Enter (the default password) then press DOOR OPENER Use the buttons to select and press LANGUAGE DOOR OPENER Use the buttons to select and press Enter the code and press Note –... -
Page 19: Appendix
Appendix 1083/15 & 1083/16 outputs There are three outputs from the 1083/15 & 1083/16 for controlling electric releases, maglocks automatic doors and gates etc. S+ S- This output can be connected directly to a fail secure (locked) release with a maximum consumption of 15VA. - Page 20 Programming details PHYSICAL CODE (Binary address) NAME LOGICAL CODE (Postal address) Page 18...
- Page 21 Programming details PHYSICAL CODE (Binary address) NAME LOGICAL CODE (Postal address) Page 19...
- Page 22 URMET COMMUNICATION AND SECURITY UK LTD Urban Hive, Skyline 120, Avenue West, Great Notley, Essex. CM77 7AA Tel 01376 556010 Fax 01376 567874 www.urmet.co.uk sales@urmet.co.uk...
