- Page 1 SECTION 5 (REV.D) ONE-FAMILY AND TWO-FAMILY KITS Download from www.urmetdomus.com Technical manuals area sec.5 −−−− DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
-
Page 2: Table Of Contents
SECTION 5 CONTENTS DOOR PHONE AND VIDEO DOOR PHONE SYSTEM - PRODUCT TECHNICAL MANUAL Diagrams Section Pag. ONE-FAMILY AND TWO-FAMILY KITS ‘AUDIO TWO’ DOOR PHONE KIT WITH SMYLE PANEL DEVICES........................................5 ....ACCESSORIES......................................5 ....SPARE PARTS ......................................5 ....TECHNICAL FEAUTURES ..................................5 .... -
Page 3: Audio Two' Door Phone Kit With Smyle Panel

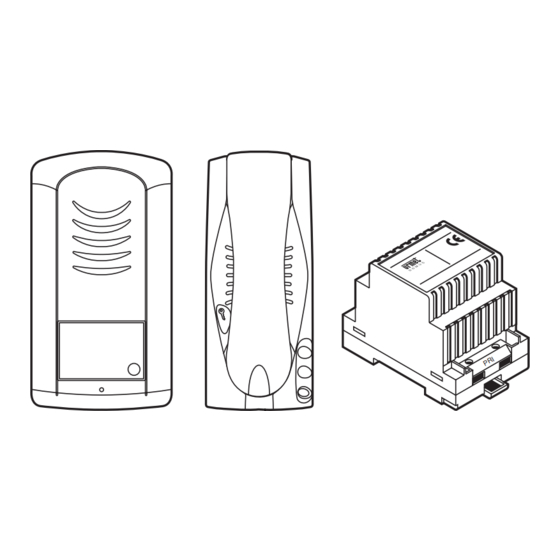

The following spare parts are provided for repairs: • Atlantico Door phone Ref. 1129/110 The “audio two” door phone kit is used to make one-family door • Door unit Ref. 1129/112 phone systems with electrical door lock release using only two wires to •... - Page 4 ‘AUDIO TWO’ DOOR PHONE KIT WITH SMYLE PANEL PANEL INSTALLATION • Fasten the base onto a fl at wall at the height shown in the fi gure • Adjust volume. Volume is calibrated to optimal values during using the bolts provided.
-
Page 5: Apartment Station Installation
‘AUDIO TWO’ DOOR PHONE KIT WITH SMYLE PANEL APARTMENT STATION INSTALLATION TRANSFORMER INSTALLATION APARTMENT STATION INSTALLATION The handset connector telephone plug into the door phone base. To remove the door phone top, lever with the tip of a screwdriver in the area shown and remove it by turning it on the upper tabs. -
Page 6: Wiring Diagrams
‘AUDIO TWO’ DOOR PHONE KIT WITH SMYLE PANEL WIRING DIAGRAMS WIRING DIAGRAMS NOTE: a total of up to 5 devices (1 main door phone and 4 door phones Ref.1129/51, or 2 door phones Ref.1129/51 with 2 supplementary ringers Ref. 9854/41) may be installed. -
Page 7: 2-Wire One Family Video Kit
TECHNICAL FEAUTURES - WIRE CROSS-SECTION AREA 2-WIRE ONE FAMILY VIDEO KIT SPARE PARTS The Urmet Domus Video Kits can be used to make one-family video The following spare parts are provided for repairs: • Power supply door phone systems without coax wire using only two wires to connect Ref. -
Page 8: Installation
2-WIRE ONE FAMILY VIDEO KIT PANEL • Fasten the base onto a fl at wall at the height shown in the fi gure PANEL using the bolts provided. 99 mm 35 mm The camera unit is supplied complete with: • Semi pin-hole camera. •... - Page 9 2-WIRE ONE FAMILY VIDEO KIT PANEL • Fasten the name tag light circuit making the wires pass underneath • Insert the front part of the panel on the base and fasten it with the the support. socket head screw using the wrench (2mm) provided. •...
- Page 10 2-WIRE ONE FAMILY VIDEO KIT VIDEO DOOR PHONE - POWER SUPPLY VIDEO DOOR PHONE INSTALLATION 1) Arrange the duct so that it ends in correspondence with one of the input holes. 2) Fasten the bracket to the wall at the height from the fl oor shown by means of the four screws.
- Page 11 BASIC KIT CONNECTION SV102-3216 BASIC VIDEO DOOR PHONE BRACKET VIDEO MAINS~ POWER SUPPLY V3 AI +M SE2 SE1 VIDEO OUTDOOR STATION Lock opening Electrical Lock 12Vca 15VA sec.5 −−−− DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
- Page 12 A) Supplementary ringer Ref. 9854/41 Connection in parallel to 1 video door phone call B) Call repeater relay connection for controlling a supplementary ringer C) Connection of a secondary electrical lock SV102-3217B BASIC VIDEO DOOR PHONE FROM SYSTEM V3 AI +M RINGER Ref.9854/41 BASIC...
- Page 13 ONE DOOR PHONE Ref. 1133 CONNECTION IN PARALLEL TO THE VIDEO DOOR PHONE ONE ATLANTICO VIDEO DOOR PHONE CONNECTION IN PARALLEL TO THE VIDEO DOOR PHONE SV102-3218 BASIC VIDEO DOOR PHONE FROM SYSTEM V3 AI +M DOOR PHONE Mod.Atlantico Ref.1133 BASIC VIDEO DOOR PHONE FROM SYSTEM...
-
Page 14: Accessories......................................................................................................................................................................................5
WITH ARTICO VIDEO DOOR PHONE • Max 1 Atlantico door phone Ref. 1133/35A Urmet Domus video door phone system Mod. 956 allows single and • Max 1 supplementary ringer Ref. 9854/41 two-user video systems without coax cable and with a reduced number •... - Page 15 ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE CAMERA UNIT • Fasten the base onto a fl at wall at the height shown in the fi gure Distances are between the TV camera unit and the last monitor. Up to 100m it is possible to use normal wires;...
- Page 16 ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE CAMERA UNIT • Fasten the name tag light circuit making the wires pass under neath • Insert the front part of the panel on the base and fasten it with the the support;...
- Page 17 ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE VIDEO DOOR PHONE - POWER SUPPLY VIDEO DOOR PHONE INSTALLATION 1) Prepare the conduit so that it terminates at the infeed hole provided. 2) Use 4 plugs to fasten the bracket to the wall at the height from the fl...
- Page 18 ONE FAMILY KIT CONNECTION Ref. 956/31 SV102-2082C VIDEO DOOR PHONE Mod.Artico (V5.011) POWER SUPPLY MAINS~ Lock VIDEO OUTDOOR release STATION Electric lock 12Vca/15Va V5.011 Connect the wire for Self-insert function. In this case make a jumper between terminals X2 and R3. −−−−...
- Page 19 TWO-FAMILY KIT CONNECTION Ref. 956/32 SV102-2081B (V5.011) VIDEO DOOR PHONE Mod.Artico (V5.006) (V5.011) POWER SUPPLY MAINS~ Lock VIDEO OUTDOOR release STATION Electric lock 12Vca/15Va V5.006 The maximum distance between devices is 50 metres. V5.011 Connect the wire for Self-insert function. In this case make a jumper between terminals X2 and R3.
- Page 20 CONNECTION OF 2 ARTICO VIDEO DOOR PHONES IN PARALLEL SV102-2135C MAINS~ POWER SUPPLY Ref. 789/4 (V5.011) VIDEO DOOR PHONE Mod.Artico (V5.006) (V5.011) VIDEO DOOR PHONE Mod.Artico MAINS~ POWER SUPPLY Lock release Electric lock VIDEO OUTDOOR 12Vca/15Va STATION V5.006 The maximum distance between devices is 50 metres. V5.011 Connect the wire for Self-insert function.
- Page 21 CONNECTION OF 2 VIDEO DOOR PHONES TO 2 VIDEO DOOR UNITS INDIVIDUAL CALLS FROM VIDEO DOOR UNIT SV102-3225 VIDEO DOOR PHONE Mod.Artico (V5.006) VIDEO DOOR PHONE Mod.Artico VIDEO OUTDOOR VIDEO OUTDOOR (V5.013) (V5.013) STATION STATION (VX.021) (VX.021) LINE~ LINE~ Lock Lock RELAY BOX Electric lock...
- Page 22 CONNECTION OF 1 DOOR PHONE IN PARALLEL TO 1 VIDEO DOOR PHONE SIMULTANEOUS OPENING OF 2 LOCKS SV102-2136E (V5.011) VIDEO DOOR PHONE Mod.Artico DOOR PHONE VIDEO OUTDOOR Lock RELAY BOX STATION release Ref.788/52 Electric lock 12Vca/15Va MAINS~ Electric lock 12Vca/15Va TRANSFORMER 12V ~ 40VA V5.011 Connect the wire for Self-insert function.
- Page 23 CONNECTION OF SUPPLEMENTARY RING Ref. 9854/41 IN PARALLEL TO VIDEO DOOR PHONE CALL CONNECTION TO CALL REPEATER RELAY FOR CONTROLLING A SUPPLEMENTARY RINGER SV102-2137D VIDEO DOOR PHONE (V5.011) Mod.Artico RINGER Ref.9854/41 VIDEO DOOR PHONE Mod.Artico (V5.011) RELAY BOX Ref.788/52 Ringer 12V~ Line~ TRANSFORMER Ref.9000/230...
- Page 24 −−−− sec.5 DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
