Mod.
1722
DS1722-089
LBT20156
ONE- AND TWO-HOUSEHOLD COLOUR HANDS-FREE VIDEO DOOR PHONE KIT
(*)
Ref.1722/85 - 1722/86
COMPLETE MONITOR USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1722 and is the answer not in the manual?

Questions and answers

Related Manuals for urmet domus 1722

Summary of Contents for urmet domus 1722

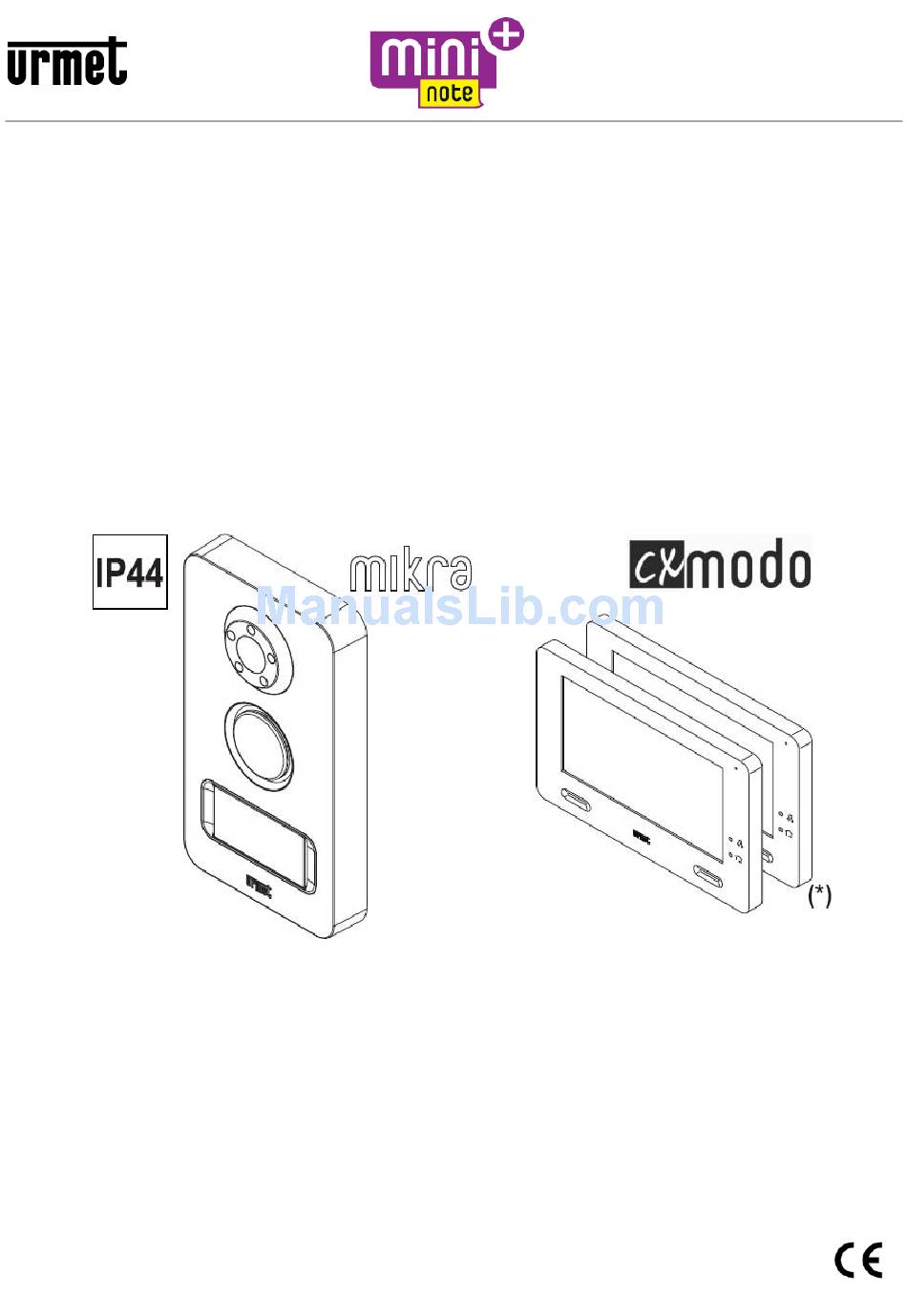

  • Page 1 Mod. 1722 DS1722-089 LBT20156 ONE- AND TWO-HOUSEHOLD COLOUR HANDS-FREE VIDEO DOOR PHONE KIT Ref.1722/85 - 1722/86 COMPLETE MONITOR USER'S GUIDE...

  • Page 2: Table Of Contents

    Contents 1  DESCRIPTION OF COMPONENTS......................3  2  FUNCTIONS ..............................4  2.1  HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCtION .......4  2.2  HOW TO CHANGE MONITOR SETTINGS ..................5  2.2.1  How to change the monitor language ..................5  2.2.2  How to change the monitor date and time ................5  2.2.3 ...

  • Page 3: Description Of Components

    1 DESCRIPTION OF COMPONENTS 7” touchscreen display Microphone Active Mute red indicator LED Sent Yokis control confirmation blue LED ON/OFF button Speakers LBT20156 DS1722-089...

  • Page 4: Functions

    2 FUNCTIONS HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCTION • Tap the screen at any point, or • Press the button (5) at the bottom right of the screen to bring up the Home Page. The Home Page is the following: and gives access to the following functions: View footage from the video camera.

  • Page 5: How To Change Monitor Settings

    Access to a QR Code referring the user to an area of the Urmet website where instruction manuals, demo videos, etc. can be downloaded. HOW TO CHANGE MONITOR SETTINGS 2.2.1 How to change the monitor language • Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right corner of the screen.

  • Page 6: How To Change The Audio Settings

    2.2.3 How to change the audio settings • Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right corner of the screen. • Tap the icon to go to the general configurations page. •...

  • Page 7: How To Activate The Automatic Image Storage Mode

    By tapping the icon the following screen page can be accessed: In this page, a name can be associated to the selected monitor via the keypad. If necessary, repeat the previous steps for the remaining monitors (icons • Confirm with 'OK' or quit the settings page by pressing the button 'BACK'. 2.2.5 How to activate the automatic image storage mode This feature allows images (snapshots) from the calling station displayed on the monitor to be stored.

  • Page 8: How To Configure Yokis Home Automation Buttons

    2.2.6 How to configure Yokis Home Automation buttons. For the configuration of Yokis Home Automation buttons please refer to the dedicated instruction manual, available on the Urmet website in \Products\Online Catalogue area, after searching by product code. Alternatively, the manual can be downloaded by scanning the QR Code below with your smartphone or tablet.

  • Page 9: How To Answer An External Call

    HOW TO ANSWER AN EXTERNAL CALL When the CXModo Monitor receives an outdoor door phone video call, it rings and the screen lights up from its default switched-off state. By tapping the various icons you can: Answer the call and begin a hands-free conversation; then, to end the call press the same icon once again, the screen will turn itself off.

  • Page 10: How To Make Video Switching Between Monitors

    HOW TO MAKE VIDEO SWITCHING BETWEEN MONITORS The call tone will be generated in alternating manner by the different monitors after a call if "Slave" monitors (OP3) are present in the system. The 'Master' monitor will enable also the monitor switching on. In this case, during the call pick-up time (3 minutes from the call), the other device monitors can be switched on by pressing buttons in sequence (monitor switching function), until one of the monitors picks up.

  • Page 11: How To Make An Intercom Call

    HOW TO MAKE AN INTERCOM CALL This feature is available only if the system includes one or more Slave monitors and if the monitors have been correctly configured as described in the system installation manual. • Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right corner of the screen.
  • Page 12 • The called user must press the icon to start a conversation with the caller. • Using the following icons, both users can: adjust the speaker volume on the monitor (any change will only be stored if the button pressed afterwards). turn off or reactivate the monitor microphone, to prevent the other person from hearing what you are saying.

  • Page 13: How To View The Stored Snapshots Present In The Monitor

    HOW TO VIEW THE STORED SNAPSHOTS PRESENT IN THE MONITOR You can view previously stored snapshots by following these steps: • Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right corner of the screen.

  • Page 14: How To Activate A Yokis Control

    HOW TO ACTIVATE A YOKIS CONTROL From the Home Page press the button to access Yokis Home Automation: From here, select your required control(s). To schedule a control for one or more weekly occurrences, from the Home Page of the monitor, press the icon 'Settings' and then select 'Yokis' .
  • Page 15 Select the button that you wish to schedule, e.g. the first one. You will display: Tap the icon and select the scheduling time and days in the following screen: WARNING: the scheduling only becomes active if the 'Enable' box is ticked with a check mark. To return to the Home Page, press 'OK' twice to confirm the changes and then 'BACK' twice.
  • Page 16 DS1722-089 LBT20156 Area tecnica URMET S.p.A. servizio clienti +39 011.23.39.810 10154 TORINO (ITALY) http://www.urmet.com VIA BOLOGNA 188/C e-mail: info@urmet.com Telef. +39 011.24.00.000 (RIC.AUT.) +39 011.24.00.300 - 323 LBT20156 DS1722-089...
