RT770E OPERATOR MANUAL

SIDE CONTROL PANEL

1
10
13
2
3
5
8
9
7649-7

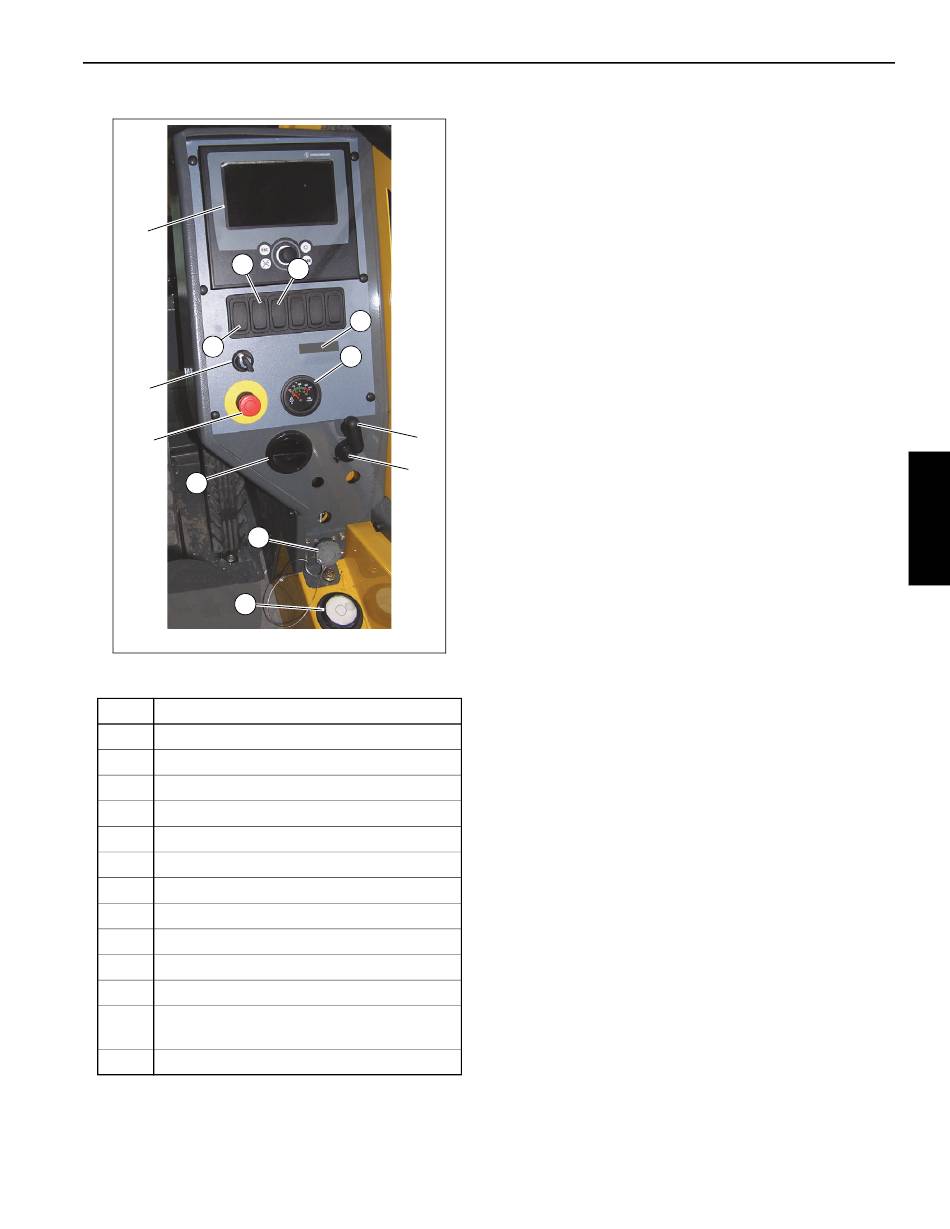

Figure 3-10 Item Numbers
Item
1 Rate Capacity Limiter (RCL) Display
2

Rated Capacity Limiter (RCL) Bypass Switch

3

Emergency Stop Switch

4 Transmission Oil Temp Gauge
5 AC/Heater Vent
6

Turntable Pin Swing Lock Control

7 12 Volt Receptacle
8 Diagnostic Connector
9 Bubble Level Indicator
10 3rd Wrap Indicator (optional)
11 Cold Weather Indicator (optional)
Ambient Temperature LED Indicator
12
(optional)
13 Boom Not Synchronized Indicator
Grove
11
12
4
6
7
FIGURE 3-10
Description
Published 04-04-2017, Control # 446-09
OPERATING CONTROLS AND PROCEDURES
Rated Capacity Limiter (RCL) and Work Area
Definition System (WADS) Control Panel
The RCL and WADS Control Panel (1) (Figure 3-10) is
located on the right side of the cab. It maintains the controls
and indicators for the crane's Rated Capacity Limiter System
and Work Area Definition System. Refer to the RCL Manual
for detailed information.

Rated Capacity Limiter (RCL) Bypass Switch

The RCL Bypass (Override) Switch (2) (Figure 3-10) is a
momentary type switch. Turn and hold the key to the ON
position (right) to disengage the RCL controls. Release the
key to allow the RCL controls to re-engage.
The RCL will be bypassed only as long as the switch is in the
ON position.
Turning the key switch to the ON position re-engages the
boom down, telescope out and winch up functions, which are
disabled when an overload condition is sensed by the Rated
Capacity Limiter (RCL). It is important to read and
understand the RCL Override Warning information in the
RCL Operator Manual before using the RCL Bypass switch
(2) or the RCL on/off switch.

Emergency Stop Switch

The crane Emergency Stop Switch (3) (Figure 3-10) is
located on the cab console and is used to shut down the
crane's engine. Push the red button in to shut down the
engine, which illuminates the Emergency Stop indicator on
the steering column. Rotate the knob and pull out to resume
normally operation.

Transmission Oil Temperature Gauge

The Transmission Oil Temperature (TRANS TEMP) Gauge
(4) (Figure 3-10) is located in the center of the front console
to the left of the steering column. The gauge indicates the
transmission oil temperature on a dual scale calibrated from
60°C to 160°C and 140°F to 320°F. The gauge receives a
signal from a temperature sending unit in the oil line at the
torque converter.

Turntable Pin Swing Lock Control

T h e Tu r n ta b l e P i n S w i n g L o c k C o n t r o l H a n d l e ( 6 )
(Figure 3-10) is located on the side control panel. The
purpose of the pin swing lock is to lock the superstructure in
position directly over the front for pick and carry loads.
When the control handle is pushed in and the superstructure
is directly over the front, the swing lock pin drops into the
socket on the carrier frame, locking the superstructure in
place.
