RT9150E OPERATOR MANUAL

RIGHT SIDE CONSOLE

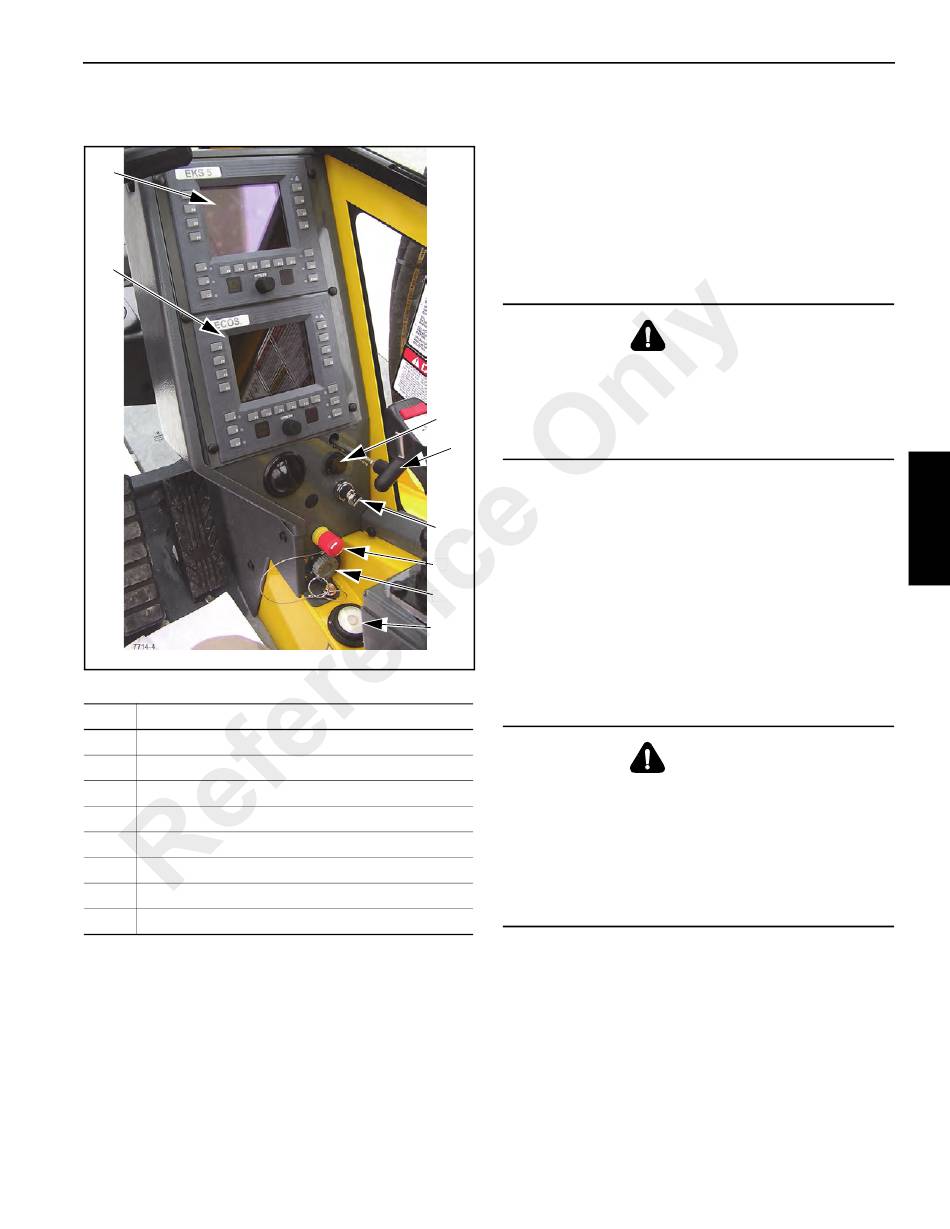

Refer to Figure 3-3.
1
3
Item
1 RCL Control Panel (EKS 5)
2 RCL Override Switch
3 ECOS Control Panel
4 Emergency Stop Switch
5 Turntable Lock Pin Control Handle
6 12v Accessory Outlet
7 Diagnostic Connector
8 Level Indicator

RCL Control Panel

The RCL Control Panel (1) is located at the top of the right
side console. This panel is used to setup a lift and monitors
all craning functions. Refer to RCL Control Unit, page 3-68
for detailed descriptions and instructions.
Grove
6
2
4
7
8
FIGURE 3-3
Description
Published 2-23-2017, Control # 644-00
OPERATING CONTROLS AND PROCEDURES
RCL Override Switch (Non-CE Certified
Cranes)
The key operated RCL Override Switch (2) is located on the
front of the console below the 12 volt accessory outlet. It is
used to override the RCL in the event of an emergency that
requires placing the crane in a safer position because of a
malfunction or when rigging the crane to defeat the anti-two-
block switch.
Refer to RCL Override, page 3-73 for more information.
Do not operate crane with the RCL function OFF without
being in communication with personnel on the ground
observing the crane's operation. Serious injury or damage
to the crane may result.
5
• Key in center position: the RCL is on and actively
monitoring all craning functions.
• Turn key to the right and hold: RCL shutdown function is
overridden; crane functions are no longer monitored
• Turn key to the left and hold: RCL shutdown and anti-
two-block functions are no longer monitored.
R e f e r t o R C L C o n t r o l U n i t , pa g e 3 - 6 8 f o r d e ta i l e d
descriptions and instructions.
RCL Emergency Override Switch and
Indicator (CE Certified Cranes)
Loss of RCL Monitoring Hazard!
The RCL Emergency Override Switch is to be used in
emergency situations only.
Do not operate the crane with the RCL overridden during
normal operations.
When the RCL is overridden, always have a helper on the
ground to signal you.
The RCL system, when programmed accurately, will lockout
the three craning functions—boom down, telescope extend,
and hoist up—when a lift is attempted at or above the crane's
capacity or when a two-block condition exists. Locking out
these three functions prevents the overload or two-block
condition from worsening.
The RCL emergency override switch is located inside a key-
locked single-door enclosure (1, Figure 3-4) that is attached
to the outside rear of the operator's cab. The switch is a two-
WARNING
Tipping Hazard!
WARNING
3
3-7
