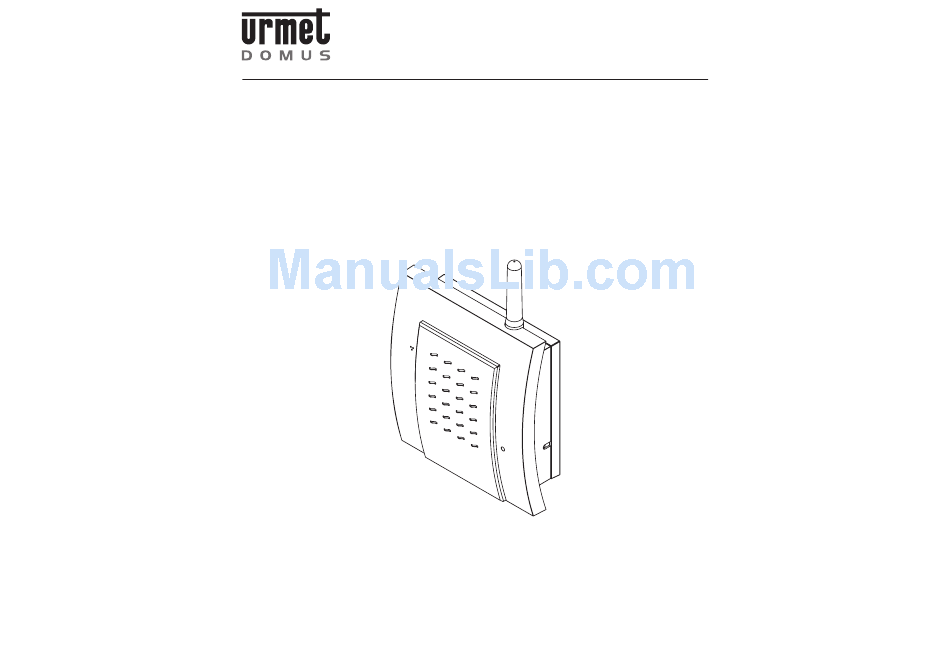

- Page 1 Mod. 1033 DS 1033-124 LBT 8355 TELEPHONE DIALER Ref. 1033/470 Ref. 1033/471 Ref. 1033/472...
-
Page 2: Table Of Contents
1033/47x telephone dialer is designed to send alarm, emergency and technical alarms by voice messages; it is available in three models, depending on different telephone network used: nr. 1 1033/4xx telephone dialer • 1033/470 for PSTN network only nr. 1 installation and user manual • 1033/471 for GSM network only •... -
Page 3: Operation Principles
1.1.2 COMMAND AND DISPLAYING ELEMENTS 1.2.3 ALARM CALL PROCEDURE When a dialer input detects an alarm signal, the following operations are performed: • PSTN telephone network for the devices connected after the dialer is disconnected and telephone conversations, if present, are interrupted (for dialers with PSTN module only). •... -
Page 4: Remote Management
1.3.2 REMOTE MANAGEMENT 2. PROGRAMMING With a DTMF telephone it is possible to perform a remote management of devices connected to the dialer relay output. In detail it is possible to: 2.1 PROGRAMMING PROCEDURE • Activate and deactivate Urmet 1430/3 or Simon Urmet Ref. 10632 and 10632.B thermostats. To perform the programming procedure, the dialer must be in standby, i.e. -
Page 5: Programming Procedure
Parameter Description Entered values Factory GSM fi eld test Press 0 to start the test value GSM call test Press 0 to start the test Telephone numbers programming procedure PSTN call test Press 0 to start the test Telephone number associated to the call Telephone number to be stored Trunk access code for PABX 4 digits max. -
Page 6: Basic Programming
PROGRAMMING EXAMPLES 2.2 BASIC PROGRAMMING Telephone number entering. The basic programming concerns the dialer main parameters: telephone numbers, alarm messages To programm the telephone number 011240086 as 2nd telephone number associated to input 3, follow the recording, SMS messages enabling, call diversion function enabling, message language selection and instructions below: access password change. -
Page 7: Voice Messages Recording
It is possible to check the current confi guration of a parameter, or if a value is correct, for example the Message deleting To delete a message, follow the instructions below: stored telephone number, by digiting the respective parameter followed by the button instead of button . -
Page 8: Telephone Connection Test
Telephone parameters programming Dial tone check 0 = disabled PSTN call test (1033/470 and 1033/472 models) 1 = enabled It allows to perform a test call with the PSTN module. The called number is the call diversion function number and only the main message is played. To perform the test, follow the instructions below:... -
Page 9: Telephone Dialer Reset
2.3.5 TELEPHONE DIALER RESET 3. MAINTENACE It is possible to reset the telephone dialer to factory confi guration by entering 999#. Reset operation does not delete the stored password. 3.1 CLEANING To clean the telephone dialer use a dry cloth. Warning: reset operation is irreversible and all confi... -
Page 10: Installation
4. INSTALLATION 4.1.2 SIM INSERTION For GSM module telephone dialer (1033/471 and 1033/472), it is necessary to perform the following Warning: the telephone dialer installation must be executed by a skilled technical staff, according to current preliminary operations: laws and regulations. 1. -
Page 11: Connections
4.2 CONNECTIONS Inputs are always referred to GND. With a NC input, the alarm is generated when the input is opened; with a NO input, when the input is closed. Warning: the dialer identifi es the alarm kind, according to the input in alarm state; if it is necessary to differentiate specifi... -
Page 12: Technical Characteristics
5. TECHNICAL CHARACTERISTICS 6. CONNECTION DIAGRAMS SSF112-0280 Power supply nominal voltage: 12Vdc 100mA (1033/470) Max current during call: 500mA (1033/471 and 1033/472) Current consumption in stand-by: 60mA (1033/470) Sch.1430/3 70mA (1033/471 and 1033/472) KLIMAT ZOOM CHRONOTHERMOSTAT ~230 LINE~ (VX.008) SABI... -
Page 13: Pocket Guide
