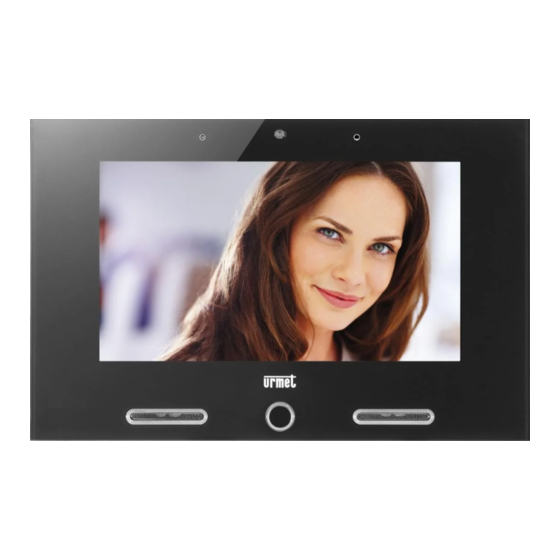

Ip 7'' video door phone, white/black
Hide thumbs
Also See for IPerCom VOG 7 1761:
- Booklet (68 pages) ,
- Configuration booklet (32 pages) ,
- Instructions for use manual (24 pages)
Related Manuals for urmet domus IPerCom VOG 7 1761
Summary of Contents for urmet domus IPerCom VOG 7 1761

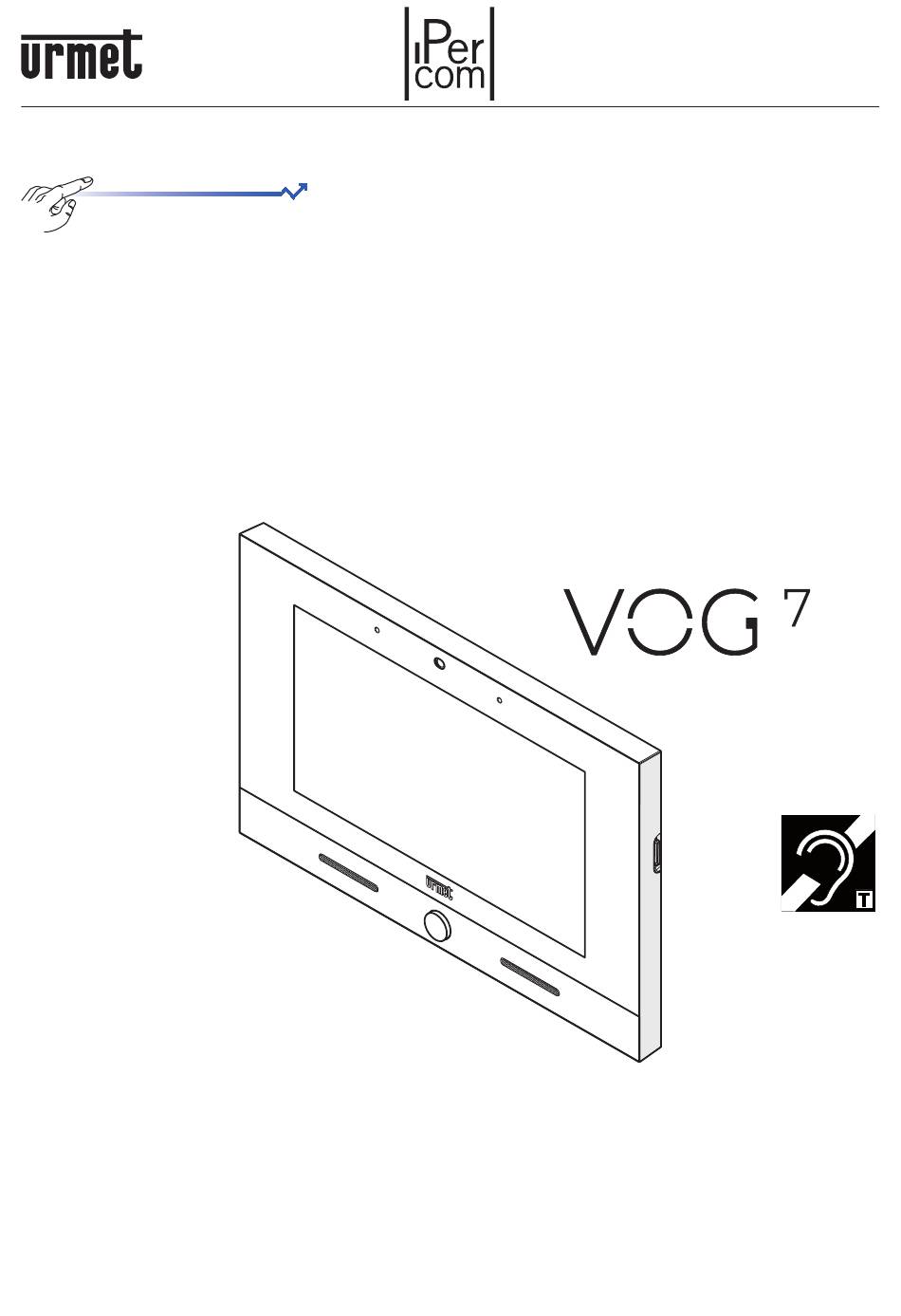

- Page 1 Mod. 1761 DS 1761-024 LBT 21039 Interactive Links OOOOOOOOOOO IP 7’’ VIDEO DOOR PHONE Ref. 1761/31 (White) Ref. 1761/33 (Black) USER BOOKLET...
- Page 2 The information contained in this booklet has been carefully collected and checked; however, the manufacturer may not be held responsible for any errors or omissions. The manufacturer reserves the right to introduce at any time and without notice improvements or changes in the products and services described in the booklet.
-
Page 3: Table Of Contents
The features described in the following booklet refer to version: 2.1.0_49_VER_7_8_0_R7 of the IP 1761/31 or /33 Video door phone. Interactive Links The document contains INTERACTIVE LINKS for faster and more efficient consultation. INDEX 1. DEVICE GENERAL DESCRIPTION .......................5 In a nutshell ..........................5 How to turn on the screen and access the various functions .............5... - Page 4 2.27 Auto-on function ........................27 2.28 How to view snapshots ......................28 2.28.1 How to delete one or more snapshots ................29 2.29 How to call the lift ........................29 3. USE OF THE DEVICE AS TERMINAL FOR: HOME AUTOMATION, ACCESS CONTROL, INTRUSION ALARM CONTROL UNIT, ANDROID AND MULTIMEDIA ..........30 Yokis Home Automation ......................30...
-
Page 5: Device General Description
DEVICE GENERAL DESCRIPTION The following booklet describes how to use the video door phone. IN A NUTSHELL The Video door phone 1761/31 or /33 is an IP touchscreen device of the Ipercom system that can operate • Advanced IP Video Door Phone; •... -
Page 6: How To Navigate Between Applications
The video door phone functions are the following: Recording short audio messages (Post.it) Calling the switchboard (if the Ipercom system is adequately pre-set) Lift control (if the Ipercom system is adequately pre-set). Activating an auxiliary function, e.g. turning on the stair lights (if the Ipercom system is adequately pre-set). Opening a driveway or garage gate. Opening the door WARNING! The functions’... - Page 7 For all details on the Apps present on the video door phone, see the relevant paragraphs in the following manual. The key can be used to scan a QR Code and access with your smartphone a page on the Urmet website, where you can check the datasheet of the product in question.
-
Page 8: How To Interpret The Reports
HOW TO INTERPRET THE REPORTS The bar at the top right of the screen shows status information: Automatic door opening (if this feature is enabled). Set the following device states: At home / Recording / Divert / Remote (only one active at a time). Bluetooth Connection active. -
Page 9: Screen Lock Function
How to send a panic alarm: • Turn on the screen, if off, by tapping it at any point or by pressing the Home button on the IP Video door phone. • Touch the icon in the lower left corner of the screen, unless it is disabled in the configuration parameters or there is no exchange in the system (for more information, refer to chapter Configurations Parameter configuration booklet). in the • In the pop-up page that opens, press the CONFIRM button to send the alarm. ATTENTION! In any case, even in the absence of confirmation, the alarm message will be sent at the end of the timeout (5 seconds), unless you cancel the sending by pressing the CANCEL button. -
Page 10: Using The Device As Video Door Phone Terminal
USING THE DEVICE AS VIDEO DOOR PHONE TERMINAL The Video Door Phone application is the main application of the IP 1761/31 or /33 Video door phone and it is also the default Home Page. The application turns the device into an advanced video door phone terminal. -
Page 11: How To Answer A Call With The "Remote" Option Enabled
2.1.1 How to answer a call with the “Remote” option enabled If the “Remote” option has been activated in the apartment, when a call is received the screen does not show the caller image (see image below), even if there is only one IP Video Door Phone 1761/31 or /33; (for more information see the Ipercom technical manual on www.urmet.com): On the video door phone you want to use to answer, press “Tap here to see who is calling you”. -
Page 12: How To Answer An Intercom Call
After answering, by tapping the various icons you can then: Show the operator your own picture taken by the Video door phone camera. If you do not tap this icon, the operator will only receive voice input. Store a snapshot of the switchboard operator displayed on the screen. Enlarge or shrink the image, also changing its format from 4:3 to 16:9 Turn the Video door phone microphone off and then back on, to stop the switchboard opera- tor hearing what you are saying. When the microphone is turned off, the corresponding icon is... -
Page 13: Receiving And Answering A Call From Your Smartphone Via Callme App
RECEIVING AND ANSWERING A CALL FROM YOUR SMARTPHONE VIA CALLME APP ATTENTION! It is possible to receive a call from a smartphone via CallMe App if: • on the smartphone, there is an account properly registered and configured on the Urmet Cloud • the call forwarding function has been activated on the video door phone (for more information, refer to chapter “Call forwarding settings”... -
Page 14: How To Access Video Door Phone Functions
HOW TO ACCESS VIDEO DOOR PHONE FUNCTIONS Turn on the screen, if off, by tapping it at any point or by pressing the Home button on the IP 1761/31 or /33 Video door phone. The Home Page, i.e. the Video Door Phone main page, is displayed if the default configuration has been maintained. If a different Video Door Phone Home Page has been selected, go to the Top Page and select the Video Door Phone application The Video Door Phone page shows the functions that can be used. Select your required Video Door Phone function by tapping the corresponding icon. -
Page 15: How To Listen To An Audio Message
Press the RECORD icon to start a new recording. The maximum permitted duration of the message is 10 seconds. The time to the end of recording is shown on a scroll bar. To stop recording before the end of the available time tap the STOP button. At the end of the recording, the message is automatically saved, with recording date and time, the Home key LED starts flashing and a message appears on the relevant icon. -
Page 16: How To Activate An Auxiliary Function
HOW TO ACTIVATE AN AUXILIARY FUNCTION If the Video Door Phone system is equipped with a special decoder that is properly configured (for further information, see the Ipercom technical manual on www.urmet.com), you can activate an auxiliary function (staircase lights, garden lights, etc. ) in the following manner: • Access the main page of the Video Door Phone application. •... -
Page 17: How To Activate The Video Door Phone Voicemail
2.11 HOW TO ACTIVATE THE VIDEO DOOR PHONE VOICEMAIL To activate the Video Door Phone Voicemail: • Tap the icon in the bottom right corner. • Select the RECORDING button. • The icon displayed switches from From this moment onwards, all calls from the outdoor station will ring the Video door phone and will be recorded. -
Page 18: Activating The "Divert" Mode
From now on, calls will no longer be forwarded to smartphones on which the CallMe App has been installed and configured, only panic alarm notifications sent by the video door phone in the apartment will be forwarded. 2.15 ACTIVATING THE “DIVERT” MODE The “Divert” mode allows diverting the call to the relevant exchange, to all the exchanges in the system or to a contact in the directory. -
Page 19: How To Delete One Or More Voicemail Recordings
• Select the call that you wish to view details. A pop-up window opens. Tap the button to listen to the recorded message, the button to close the window. 2.17.1 How to delete one or more voicemail recordings How to delete one or more recorded messages: • Open the list of voicemail calls (see previous section) •... -
Page 20: How To Make An Intercom Call
ATTENTION! The door open indication is displayed only on video door phones on which door opening was carried out following the last call received. In addition to the icon on the display, the LED of the Home key flashes on the video door phone. When the door or any doors left open are closed, the icon will no longer be visible on the display and the Home button LED will stop flashing. -
Page 21: How To Check The Call Log
“How to answer an intercom call”. For a description of the icons shown in the window see the section • If the called contact answers the call, basic voice communication is activated. To show your snapshot to the called contact, tap the icon ;... -
Page 22: How To Send A Text Message
For each call the following information is shown: — An icon that shows whether the call was incoming , outgoing or if it was missed — The identifier or name of the caller or the called contact. — Date and time of the call. If the contact is another video door phone or a switchboard, the icon , is displayed to call it back “How to make an intercom... - Page 23 • Press the “Write message” field to write the message to be sent. • When finished, press SEND to send the message. If you had already started chats, you can directly select in the left-hand box the recipients to whom your message will be sent. You can also send messages from the address book. To do this: • Tap the icon next to the recipient. A message window opens where messages previously sent to that recipient are shown, complete with date and time of sending.
-
Page 24: How To Search For A Name In The Address Book
2.23 HOW TO SEARCH FOR A NAME IN THE ADDRESS BOOK In the directory, names are listed in alphabetical order. To avoid scrolling through the entire list, it is possible to use the direct search function to find a name. • Access the main page of the Video Door Phone application. •... - Page 25 • The request screen for entering a new contact opens. • Tap the various fields to enter the required data: VIDEO DOOR The identification code of the video door phone 1717/31 - /33 - /41 or 1717/21 PHONE CODE or 1741/1 or 1761/31 - /33 that you want to add to the directory can be read in the lower right corner of the Video Door Phone Homepage. FULL NAME The name with which your new contact will appear in your address book. SENDER Name and surname of the person who sends the request.
-
Page 26: How To Resend A Contact Request
IMPORTANT: Adding a new contact to your address book is not automatic. For confidentiality reasons, the request must first be approved by the person that you wish to add, using the “How to accept contact requests”. In addition, the person who procedure described in section has authorised the addition of the contact may, even at a later stage, revoke the authorisation, by deleting the corresponding contact from your address book. -
Page 27: How To Delete Contact Requests
• Selezionare la nuova richiesta ricevuta. • Press the ACCEPT button to add the contact request to the directory. 2.26 HOW TO DELETE CONTACT REQUESTS To delete one or more (sent or received) contact requests: • Press the icon on the Video Door Phone Main Page •... -
Page 28: How To View Snapshots
• The list of available cameras on which auto-on function can be used is displayed. Select the name of the device on which you want to view live images. • Press the icon to interrupt the auto-on. Viewing also stops automatically after 10 minutes. During image viewing all conversation features are active (door and driveway/garage gate opening, storing a snapshot, and so on). Additionally, in the presence of multiple cameras it will be possible to view the images from multiple outdoor stations with the buttons 2.28 HOW TO VIEW SNAPSHOTS... -
Page 29: How To Delete One Or More Snapshots
2.28.1 How to delete one or more snapshots • To delete one or more snapshots: • Open the list of available snapshots (see previous section) • Press the • Select the snapshot(s) you want to delete by pressing on the relevant tick square. To select them all, press the SELECT ALL button. -
Page 30: Use Of The Device As Terminal For: Home Automation, Access Control, Intrusion Alarm Control Unit, Android And Multimedia
USE OF THE DEVICE AS TERMINAL FOR: HOME AUTOMATION, ACCESS CONTROL, INTRUSION ALARM CONTROL UNIT, ANDROID AND MULTIMEDIA YOKIS HOME AUTOMATION Turn on the Video door phone by tapping the screen at any point or by pressing the Home button. The screen will display the Home Page (the default Home Page is the Video door phone one you can change it in the Setup menu). -
Page 31: App My 1067
Press the button to return to the Home Page. APP MY 1067+ ATTENTION! In order to use the following application it is necessary to contact the Urmet assistance service. Switch on the screen if it is off, by tapping it any point or by pressing the Home button. The Home Page is displayed, which corresponds to the main page of the video door phone system , if the default configuration has been maintained. - Page 32 Press the icon to directly access the Top Page. Top Page Press the icon . The main page of the My 1067+ app opens. If the installer has not entered any data on the existing system, you must first register your account at www.myurmethome.com and then run the configuration wizard using the My 1067+ app. The app allows you to control your burglar alarm system through the video intercom. You can view the status of the system and arm or disarm it either completely or partially.
-
Page 33: Urmet Secure App
URMET SECURE APP Switch on the screen if it is off, by tapping it any point or by pressing the Home button. Page is displayed, which corresponds to the main page of the video door phone system , if the default configuration has been maintained. Video Door Phone Home Page (default option) Press the icon to directly access the Top Page. Top Page Press the icon . -
Page 34: Iperhome Home Automation
The app allows you to control your burglar alarm system through the video intercom. You can view the status of the system and arm or disarm it either completely or partially. For more details, visit www.urmet.com. IPERHOME HOME AUTOMATION Switch on the screen if it is off, by tapping it any point or by pressing the Home button. Page is displayed, which corresponds to the main page of the video door phone system , if the default configuration has been maintained. - Page 35 Press the icon to directly access the Top Page. Top Page By pressing the icon, the main page of IPerHome home automation opens. The page varies depending on whether or not the installer has entered the IPerHome server data in the video door phone.
-
Page 36: Android App
Data entered in the Video door phone The installer, via the button, already entered IPerHome server details in the Video door phone. To log in and access the home page of the IPerHome website, the user must enter the required data (the Android Video door phone must be connected to the Internet via WiFi or cable connection if IPerHome is in remote mode. - Page 37 Video Door Phone Home Page (default option) Press the icon to directly access the Top Page. Top Page Press the icon . The Android home page will open. DS1761-024...
-
Page 38: Preloaded Android Apps
Via the button you can access all the preloaded Apps and Widgets. The most commonly used ones will appear directly in the Android home page and are briefly described in the section here below. WARNING! If you have changed the Home Page, you may find that: If the Top Page has been selected as the Home Page, you can select Android page • directly by tapping the icon If another application has been selected as the Home Page, you can tap the icon •... - Page 39 Video Door Phone Home Page (default option) Press the icon to directly access the Top Page. Top Page Press the icon . The MIFARE home page will open. MIFARE home page DS1761-024...
-
Page 40: How To Change The Access Code For The Administrator
3.6.1 How to change the access code for the administrator To change the administrator access code, follow the procedure below: • Press the icon • The virtual keypad is displayed on the screen. • Enter the default access code “123456” for your first-time authentication. The page containing the main menu is displayed: DS1761-024... -
Page 41: How To Create, Delete, Or Replace A Key For The Administrator
• Press CHANGE ADMINISTRATOR CODE. The page for changing the administrator access code opens: • Enter the code “123456” in the PREVIOUS PASSWORD field. • Enter a new code in the NEW PASSWORD field and repeat it in the field below. The code can have a minimum of 4 up to 8 characters. • Press the SAVE button to save the new code, the CLOSE button allows closing the page without saving. - Page 42 • Enter the administrator access code. The page containing the main menu is displayed: • Press ADD ADMINISTRATOR KEY. A pop-up window opens inviting you to pass the key to be acquired: • Pass the key on the left side of the video door phone and then press CONFIRM to finish the acquisition operation.
-
Page 43: How To Manage Users
3.6.3 How to manage users 3.6.3.1 How to add a user To create a new user, proceed as follows: • Press the icon • The virtual keypad is displayed on the screen. • Enter the administrator access code or pass the administrator key. The main menu page is displayed. DS1761-024... - Page 44 • Press USERS MANAGEMENTS. The window listing the stored users is displayed (initially blank). • Press the ADD USER button. A new window opens: Fill in the required fields NAME and DESCRIPTION. The other fields are optional. It is also possible to associate an image to the user that is being entered, press the icon to display a window pop-up through which you can use an image captured by the camera or use one contained in the internal memory.
- Page 45 • Pass the key on the left side of the video door phone and then press CONFIRM to finish the acquisition operation. • If the procedure has been completed correctly, the following screen will appear. DS1761-024...
- Page 46 3.6.3.2 How to delete a user or a key or change a user data To delete a user or a key or change a user data:, proceed as follows: • Press the icon • The virtual keypad is displayed on the screen. •...
-
Page 47: How To Record Accesses And Exits
In the line containing the name of the user: • – Press the icon to replace the user key. The procedure is similar to the one used to replace the administrator key. – Press the icon to change the stored data. The window used for creating the user is displayed. Edit the data and press the SAVE button to save. -
Page 48: How To View All Logs
You can see the log of the current month, previous month or any time interval by tapping the tabs CURRENT MONTH, LAST MONTH or SELECT RANGE - respectively (range means a group of several months). If you chose SELECT RANGE the following window appears: where it is possible to select the start month and the end month. After your selection, tap the button SELECT to view the log. -
Page 49: Media Player
interval is a set of months). The SELECT INTERVAL mode is the same as that described in paragraph How to view a user’s log. The SEND LOG button can be used to send the log: • via Bluetooth to other (PC, tablet or smartphone) devices, provided that the Bluetooth connection has been turned on on the Video door phone The CLEAR LOG button can be used to delete all the logs. -
Page 50: Gallery
The media player allows you to play audio tracks on the video door phone or play recorded songs on the SD card. You can split the audio tracks into different categories or create your own playlist. Press the button to return to the Home Page. GALLERY Switch on the screen if it is off, by tapping it any point or by pressing the Home button. Page is displayed, which corresponds to the main page of the video door phone system , if the default configuration has been maintained. - Page 51 Press the icon to directly access the Top Page. Top Page Touch the icon . The video door phone gallery opens. The gallery can be used to play videos or view images. For example, you can view snapshots of external images captured during a call with the door unit or play back the images on the SD card.
-
Page 52: Iuvs App
iUVS APP The iUVS app can be used to manage the video surveillance of your home directly from the video door phone. The app can be used to view the images from the cameras in the system in real-time, even with audio transmission. Switch on the screen if it is off, by tapping it any point or by pressing the Home button. Page is displayed, which corresponds to the main page of the video door phone system , if the default configuration has been maintained. -
Page 53: Yokis Yno App
The page for using the video surveillance management controls appears after pressing the icon. For more details, click on the icon to consult the guide for using the app. 3.10 YOKIS YnO APP The YnO app can be used to manage the Yokis modules installed in the system. Switch on the screen if it is off, by tapping it any point or by pressing the Home button. - Page 54 Top Page Press the icon . The Yokis home automation main page opens. If automatic account connection is not enabled, you must enter your credentials to log in. After authentication, you can choose the system and have access to home automation controls. For more details, see the YnO app section at www.yokis.com.
-
Page 55: Callme App
3.11 CALLME APP This can be used to use the CallMe app directly on the IP video door phone. The CallMe app can be used to associate the IP video door phone to the following call forwarding devices: — 1083/83 (2Voice) —... -
Page 56: Callme App Configuration As Homepage
• Tap on Network, press WiFi and select Enable. A new window will open in which the available networks are listed. Select the network to which you want to connect the video door phone. A pop-up window opens in which you need to set the following network parameters: • Password of the selected WiFi network. • IP address of the device (enter a static IP address coherent with the IP address of the WiFi router and its subnet mask). -
Page 57: Callme App Configuration And Use
• Press the icon to open the general configuration page. • Tap on Homepage (the active homepage is shown on the right). In the pop-up window, select “Urmet CallMe” and press the “X” button. 3.11.2 CallMe app configuration and use • Tap on the icon or press the central button, if the video door phone is off, to open the CallMe app. • Allow the CallMe app to: – access photos, media, and files on your device; – record audio; – take pictures and record videos; –... -
Page 58: Configuration Of Video Door Phone Parameters And Video Door Phone Application
Go to the Urmet website in the CallMe section https://www.urmet.com/it-it/CallMe for instructions on how to use and configure the CallMe app. 3.12 CONFIGURATION OF VIDEO DOOR PHONE PARAMETERS AND VIDEO DOOR PHONE APPLICATION For all information on how to configure the video door phone and Video Door Phone application “Parameter configuration booklet”... - Page 59 DS1761-024...
- Page 60 DS 1761-024 LBT 21039 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39 011.24.00.000 (RIC. AUT.) e-mail: info@urmet.com +39 011.24.00.300 - 323...
