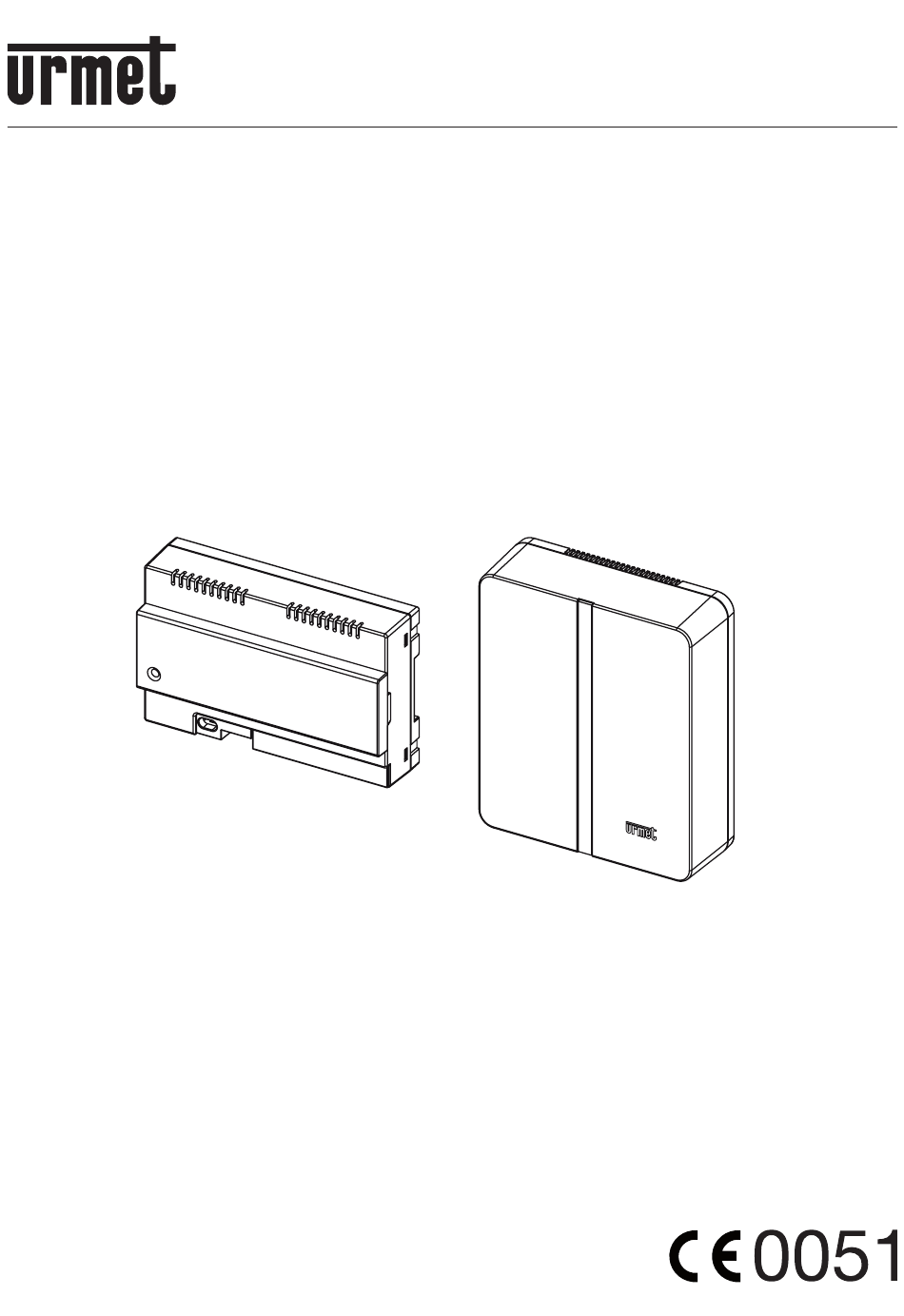

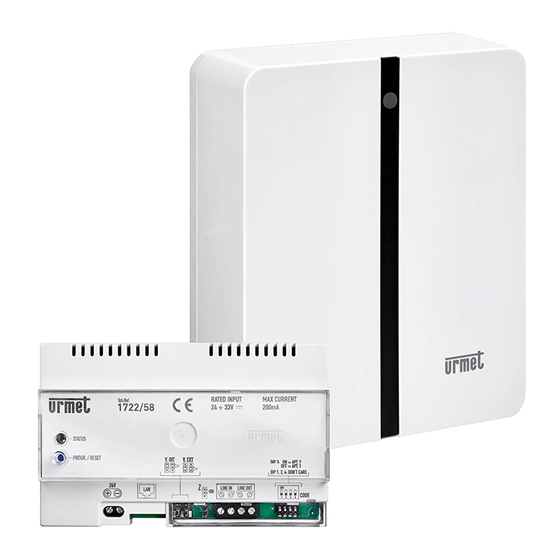

  • Page 1 Mod. 1722 DS 1722-102 LBT 20273 CALL FORWARDING DEVICE FOR MININOTE+ KIT Ref. 1722/58 (*) Wall surface mounting kit Ref. 1083/88 COMPLETE USER AND INSTALLER MANUAL...
  • Page 2: Table Of Contents

    ENGLISH INDEX USER MANUAL NORMAL OPERATION ........................... 2 1.1. CALL RECEIVING ........................... 2 1.2. INTERCOM FUNCTION BETWEEN SMARTPHONES ..............4 1.3. INTERCOM CALL FROM VIDEO DOOR PHONE TO SMARTPHONE ..........5 THE Urmet CallMe APP .......................... 6 CREATE A NEW ACCOUNT OR USE A SAVED ACCOUNT ..............7 3.1.
  • Page 3 By accessing the notifi cation, you will open the Urmet CallMe App - displayed as follows: After selecting “View camera” Once the conversation has begun, the display will Incoming Call show: There are 3 possible options: 1) Select “View camera”. By clicking on “View camera”...
  • Page 4: Intercom Function Between Smartphones

    successfully handled corresponding notifi cations will not be shown by the Urmet CallMe App. It will still be possible, however, to answer a video door phone call from the indoor station inside the apartment. If your smartphone is being used for a video door phone or intercom call, this will be interrupted by an incoming phone call.
  • Page 5: Intercom Call From Video Door Phone To Smartphone

    The conversation will stop after about 2 minutes. • receiver call will For a two-household kit Ref. 1722/86, plain incoming call screen. Although the “View camera” window may pressing the icon on the video door appear in the middle of the black window, even...
  • Page 6: The Urmet Callme App

    The above-described function will also The meaning of the icons and buttons in the Home be available on the video door phone of Page is as follows: apartment 2 in regard to the devices of 1. “Status icon”: apartment 1. –...
  • Page 7: Create A New Account Or Use A Saved Account

    Below is the meaning of each key: 1. This is the correct selection if you do not yet have an account with @sip.urmet.com (fi rst access). 2. This should be used if you already have an account. 3. Menu normally only used at a later stage, to make changes to your account (e.g.
  • Page 8: Use A Saved Account (Sign In)

    specifi ed address, and the user will be redirected to the settings page. In order for the account to become active, you need to log in to your email in-box, retrieve the mail that has just been received and click on the validation link.
  • Page 9: Installer Manual

    INSTALLER MANUAL 4. DEVICE CONFIGURATION FROM THE Urmet CallMe APP In order to confi gure the device, you must fi rst have created an account (or logged in using an existing account), as explained in paragraphs 2 and 3. WARNING: the device, once fully operational, will forward calls to the owner of the account that is used in the confi...
  • Page 10 Connection via Wi-Fi Enter the device name it is essential to select from the dropdown menu the To operate, the device must be connected to (home) network to connect to. your home LAN network and this in turn must be connected via a modem/router to the Internet.
  • Page 11 Wi-Fi Switch-off Intervals Advanced Settings After setting the time intervals (as an optional Enter the following values in the empty fi elds: IP operation) press “Continue” to go to the next Address, Subnet Mask, Default Gateway and DNS page. (e.g.: 8.8.8.8) then press “Continue”. Now, it will be possible to choose the VIDEO quality (Default value: LOW) then press “Continue”.
  • Page 12: Urmet Callme Configuration Menu

    5. Urmet CallMe CONFIGURATION MENU Confi guration saving After the confi guration has been successfully completed, the following screen will be displayed: App Confi guration Menu Optionally, the Urmet CallMe application can help you to: — Limit incoming calls to periods in which the device is connected to a Wi-Fi network, which will save your SIM card data allowance.
  • Page 13: Device Installation

    3) check that your smartphone data plan does not require VoIP data fl ow locking. WARNING Applications that: — optimise the use of the battery, — ensure energy saving for your smartphone, — protect device (antivirus similar software), could adversely affect the operation of the Urmet CallMe application when in the off-screen (background) mode.
  • Page 14: Wall Mounting With The Kit Ref. 1083/88

    4. Connect the assembly to the system. Ensure cables are led through the left 5. Carry out the device confi guration by means of side. jumpers and/or dip-switches. 2. Remove the 2 covers from the device. 6. Replace the terminal strip cover. 7.
  • Page 15: Description Of Components

    • steady green light: the device has been correctly registered with the Urmet SIP server and is ready to forward calls to a smartphone; • fl ashing green light: the device is connected to the Internet but cannot reach the Urmet SIP server;...
  • Page 16: Technical Specifications

    CONFORMITY TO THE DIRECTIVE 1999/5/EC 7. LINE IN, LINE OUT terminals: connection to With this document URMET S.p.A. declares that the system BUS. its Call Forwarding Device for Mininote+ Kit Ref. 1722/58 conforms basic 8. Dip switch CODE: requirements other relevant •...
  • Page 17: Connection Diagrams

    CONNECTION DIAGRAMS 9.1. ONE-HOUSEHOLD SYSTEM SV102-3974 V.INT/V.EXT.: V.INT LINE OUT JP Z: ON LINE IN DIP1: OFF DIP2: OFF 24Vcc DIP3: OFF DIP4: OFF LINE OUT JP1: LOCAL LINE IN JP2: OFF DIP1: OFF DIP2: ON DIP3: OFF DIP4: OFF SLAVE V- DC OUTPUT...
  • Page 18: Two-Household System

    9.2. TWO-HOUSEHOLD SYSTEM SV102-3975 APT1 APT2 V.INT/V.EXT.: V.INT V.INT/V.EXT.: V.INT LINE OUT LINE OUT JP Z: ON JP Z: ON LINE IN LINE IN DIP1: OFF DIP1: OFF DIP2: OFF DIP2: OFF 24Vcc 24Vcc DIP3: OFF DIP3: ON DIP4: OFF DIP4: OFF V- DC V- DC...
  • Page 19: Key To Diagrams

    9.3. KEY TO DIAGRAMS To router/modem ADSL or 3G/4G “Master” video door phone of Mininote+ Kit Ref. 1722/85 or 1722/86 “Slave” video door phone power supply Ref. 1722/22 Call Forwarding Device for Mininote+ Kit Ref. 1722/58 Video distributor Ref. 1722/55...
  • Page 20: Ds1722

    DS 1722-102 LBT 20273 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39 011.24.00.000 (RIC. AUT.) e-mail: info@urmet.com +39 011.24.00.300 - 323 Designed by Urmet MADE IN CHINA...
