- Page 1 Mod. 1183 DS 1183-013 LBT 20108 CITOFONO VIVAVOCE 2VOICE 2VOICE HAND-FREE DOOR PHONE INTERPHONE MAINS-LIBRES 2 VOICE INTERFONO MANOS LIBRES 2VOICE SPRECHANLAGE 2VOICE Sch./Ref.1183/7...
-
Page 2: Description Of Components

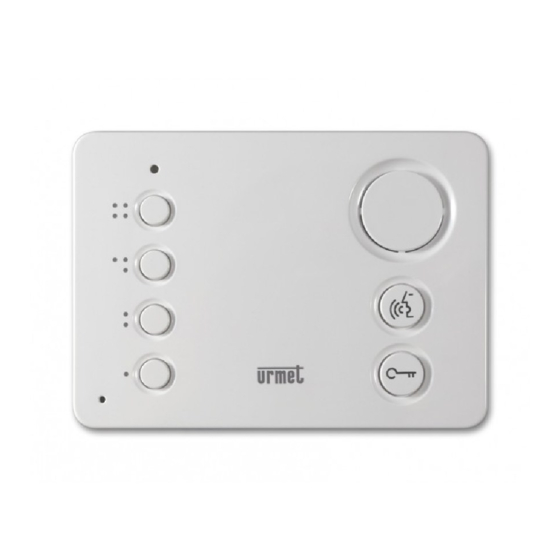

ENGLISH The door phone Ref. 1183/7 is designed for use in Voice system audio door phone and video door phone installations. DESCRIPTION OF COMPONENTS SW1 SW2 Microphone Button see button function table Button see button function table Button to connect to Yokis devices; contacts X1, GT: max 50 mA @ 12 Vcc Button to connect to Yokis devices; contacts Y1, GT: max 50 mA @ 12 Vcc Multicolour indicator LED Call and conversation speaker Button used to activate/deactivate audio... -
Page 3: Installation
INSTALLATION WITH FLUSH-MOUNTED CASING MOD. 503 Install flush-mounting box at the height indicated in the drawing below. Fix the bracket to the mounting box. Box Mod. 503 Metal bracket n° 2 M3,5 x 19 mm included Connect. Fix the video door phone to the bracket. WITH FLUSH-MOUNTED CASING Ø 60 MM Install flush-mounting box at the height indicated. Remove the plastic base from the door phone unit and fix the base to the wall as shown in the drawing here below. Box Ø 60 mm n° 1 screw and screw anchor included n°... -
Page 4: Wall Surface Mounting
WALL SURFACE MOUNTING Remove the plastic base from the door phone unit and fix the base to the wall as shown in the drawing here below (you may want to use the drilling template supplied at the end of this manual). n° 2 screws and screw anchors included Connect. Fix the door phone to its plastic base. TERMINAL PINS DESCRIPTION Button common terminals Button X1 Button Supplementary ringer Floor call LINE System bus connection DS1183-013... -
Page 5: Button Functions
BUTTON FUNCTIONS State STATE OF WAITING STAND-BY PROGRAMMING* FOR PICk-UP AND BUTTON STAND-BY DURING AUDIO OPERATION (ONLY WITH (RECEIVING DOOR PHONE IN PRESSED CALL) Button STAND-BY) Open Open Open Connect / disconnect the pedestrian pedestrian Open pedestrian door pedestrian automatic door opening door door door... - Page 6 ACTIVATING AUDIO BY PRESSING THE (PUSH TO TALk MODE) BUTTON If the communication between the calling station and the door phone is disturbed, it is possible to activate the two audio channels (inwards and outwards) individually. After having received a call, short press to activate the audio from the door unit, then if the button is held pressed down, the audio channel is activated externally and the user can speak to the caller.
-
Page 7: Drilling Template
DIMA DI FORATURA DRILLING TEMPLATE GABARIT DE PERÇAGE PLANTILLA DE PERFORACIÓN BOHRSCHABLONE 83,5 mm Zona passaggio cavi Cable routing area Zone passage câbles Zona de paso de cables Kabelführungsbereich DS 1183-013 LBT 20108 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +3 011.3.3.810 VIA BOLOGNA 188/C http://www.urmet.com Telef.
