DS 1060-128
Manuals in French,Spanish, German and Dutch can be downloaded from www.urmet.com with the QR Code shown at the end of the manual.
Les manuels en français, espagnol, allemand et hollandais peuvent être téléchargés à partir du site www.urmet.com à l'aide du code QR indiqué au fond
Los manuales en francés, español, alemán y holandés se pueden descargar del sitio www.urmet.com mediante el código QR presente al fi nal del manual.
Die Handbücher in französischer, spanischer, deutscher und spanischer Sprache können mit dem am Ende des Handbuchs angegebenen QR Code von
De gebruiksaanwijzingen in het Frans, Spaans, Duits en Nederlands kunnen worden gedownload op de site www.urmet.com met de QR Code aan het

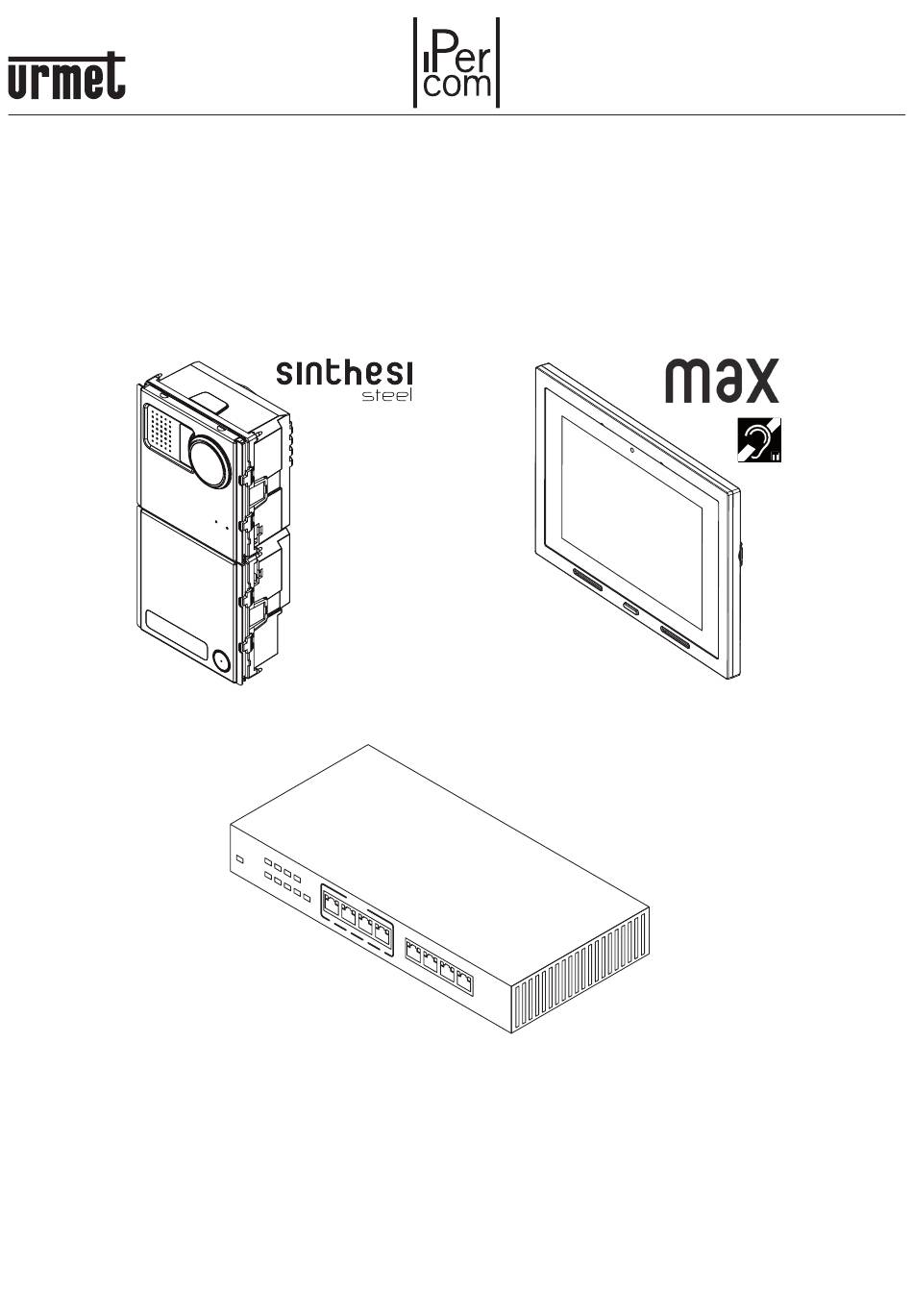

KIT VILLA IPERCOM
IPERCOM VILLA KIT
Sch./Ref. 1060/611
P W
P O
E A
R
1
c t iv
e
2
3
4
P O
P O
E F
E
M A
a u
X
lt
P O
E P
o r t
s
1
2
3
4
LIBRETTO INSTALLAZIONE E CONFIGURAZIONE
INSTALLATION AND CONFIGURATION MANUAL
der Website www.urmet.com
einde van het boekje.
1 0 0
M
1 0 M
O n
= L
in k
, B
5
li n k
= A
c t
6
7
8
de la notice.
Mod.
1060
LBT 20504

Advertisement

Table of Contents
loading

Related Manuals for urmet domus 1060

Summary of Contents for urmet domus 1060

  • Page 1 Mod. 1060 DS 1060-128 LBT 20504 KIT VILLA IPERCOM IPERCOM VILLA KIT Sch./Ref. 1060/611 c t iv o r t 1 0 0 1 0 M in k li n k LIBRETTO INSTALLAZIONE E CONFIGURAZIONE INSTALLATION AND CONFIGURATION MANUAL Manuals in French,Spanish, German and Dutch can be downloaded from www.urmet.com with the QR Code shown at the end of the manual.

  • Page 2: Kit Composition

    2 KIT COMPOSITION DESCRIPTION Video door unit with 1 button 1 transparent printed tag Call station Ref.1060/71 1 grey printed tag 1 red printed tag 1 fl ush mounting box 2 modules Flush-mounting box Ref. 1145/52 Frame and module holde Ref. 1158/62...

  • Page 3: Accessory Devices

    3 ACCESSORY DEVICES DESCRIPTION Supplementary call station Ref. 1060/71 Electric lock 12 Vac 15 VA Flush-mounting box Ref. 1145/52 Frame and module holder Ref. 1158/62 Setup for activating garage gate door opener Button for activating pedestrian gate electric lock Hood for two-module door unit Ref.
  • Page 4 4 CONNECTION BLOCK CHARTS 4.1 SINGLE-FAMILY SYSTEM Apartment 01 Internet 110-230 Vac 110-230 Vac Light 01 Light 02 ct iv au lt o rt s 10 0M 10 M = Li nk , B lin A ct 110-230 Vac R EL .
  • Page 5 5 WARNINGS FOR INSTALLERS Read the notes in this manual carefully. This manual contains important information on safe installation, use and maintenance. • This devices in the kit must only be put to the use for which they were intended. All other use is improper. The manufacturer cannot be held responsible for damage deriving from improper, incorrect or unreasonable use.

  • Page 6: Selecting Languages

    6.2 SELECTING LANGUAGES The fi rst operation to be carried out in the home page is to select the system language by pressing the LANGUAGE button. Select the desired language in the window that opens. Figure 2: Selecting the system language If Italian is selected, the home page will be translated immediately as expected.
  • Page 7 Entering the password and pressing the CONFIRM button allows access to the confi guration mode. The fi rst page that appears is the one for selecting the current date and time, a fundamental step for correctly confi guring the system. Figure 5: Setting the date and time By entering data into the year, month, day, hour, and minute columns and then pressing the CONFIRM button, the system acquires the correct date and time.
  • Page 8 The following page will appear Figure 8: Creating a new confi guration 6.4.1 SETTING THE BASE PARAMETERS On the create confi guration page, select the type of Villa Kit project (single family) and then assign a meaningful name to the project and an installer’s password.
  • Page 9 6.4.2 SETTING THE MAX MONITORS Ensure that the apartment is selected in the navigation module, or that the App 01 button is pressed as shown in the fi gure. Figure 11: Selecting the apartment from the navigation module To add the MAX monitor to the apartment, fi rst press the Add new device button: the following page will appear Figure 12: Selecting the device to be added to the apartment Then select the item Max 1717/31-32-33-34-41 to open the MAX monitor settings page Figure 13: Setting the MAX monitor...
  • Page 10 Assign a name to the device using the Name fi eld, then press the button in correspondence or the MAC Address: a new window will appear, as illustrated in the fi gure below Figure 14: Selecting the MAC address By pressing the This Device button, the MAC Address fi eld will be fi lled in automatically and the device setting will be completed Figure 15: Completing the MAX Monitor Settings Press OK to confi...
  • Page 11 To add the Door Unit, fi rst press the Add new device button: the following page will appear Figure 18: Selecting the device to be added to the fl oor Then select the item Door Unit 1060/71-74-75 to open the Door Unit settings page Figure 19: Setting the Door Unit...
  • Page 12 Assign a name to the device using the Name fi eld, then press the button in correspondence or the MAC Address: a new window will appear, as illustrated in the fi gure below Figure 20: Selecting the MAC address Press the Scan button to identify the Door Unit installed: a new window will appear specifying the device found Figure 21: Selecting the Door Unit identifi...

  • Page 13: Applying The Configuration

    Press OK to confi rm the parameters entered: the device will be added to the fl oor, as illustrated in the fi gure below Figure 23: Door unit added to the fl oor 6.5 APPLYING THE CONFIGURATION With the device setting, the confi guration can be considered completed and can therefore be applied to the system. To do so, press the Project button at the top left: the following page will appear.
  • Page 14 Once the operation is confi rmed by pressing OK, a window will open on the distribution status of the confi guration on the system as a whole. Figure 26: Distributing the confi guration on the system As soon as the operation has fi nished, a message saying Distribution completed will appear in the title of the open window Figure 27: Completing the distribution of the confi...
  • Page 15 In the sub-menu that opens, select the item Lock System, as illustrated in the fi gure Figure 29: Locking the system In the window that appears on the screen, set the password to lock the system Figure 30: Setting the password to lock the system To allow future access to the system confi...
  • Page 16 As soon as the operation is concluded, a message saying Distribution completed will appear in the title of the open window Figure 32: Completing the distribution of the password 6.7 FINAL OPERATIONS AND FUTURE EXPANSIONS Complete the conÄ guration and once the system is blocked, press the HOME button on the bar at the bottom Figure 33: HOME Button In this way, the video door phone screen appears, where it is possible to see some of the setting made in the conÄ...
  • Page 17 In the rooms list, it is possible to see the Door Unit set previously Figure 35: Rooms List To verify the functioning of the system, call the Max Monitor from the Door Unit and check that the call is received correctly; then carry out the auto-on function on the Door Unit and check that it takes place correctly.
  • Page 18 To create a new Urmet SIP account, go to Settings, then select Create and account or access Figure 37: Settings page A page like the one shown below will appear Figure 38: Guided confi guration Press the Create a new account button to open a new page where the data for creating a new account can be entered Figure 39: Creating an Urmet SIP account DS1060-128...
  • Page 19 Once the data has been entered and the Sign up button has been pressed, a request to create the new contact will be sent, which must then be confi rmed via e-mail. Complete the account registration by returning to the home page of the app; there will be a change in the status icon at the top right, which will have a green circle to indicate the connection to the Urmet SIP server.
  • Page 20 At this point, the call forwarding settings page as illustrated will open Figure 43: Call forwarding settings Press Call forwarding user name to open a dialogue window where the user name for the account previously created must be entered Figure 44: Call forwarding user name The Urmet SIP account can also be set up using the confi...
  • Page 21 In the bar that opens, select the REMOTE option to enable call sending. From this moment on, every incoming call on the MAX monitor from the Door Unit will also be forwarded to a smartphone/tablet: on the generic remote device a screen similar to this one below will appear Figure 46: Call forwarding on smartphone 7 INSTALLING THE POE SWITCH The switch can be installed on the table-top by using the special feet provided or fastened to the wall using the screws and anchor bolts provided.

  • Page 22: Key To Symbols

    7.2 8-PORT SWITCH TECHNICAL CHARACTERISTICS Ref.1039/44 SWITCH POWER SUPPLY Power voltage: ..................................1.4 A @ 100 - 240 Vac 50/60 Hz Output current: .........................................1.25 A @ 48 V SWITCH Input current: ........................................1,25 A @ 48 V Total number of ports: ......................................... 4 + 4 PoE Power voltage POE: ....................................

  • Page 23: Wiring Diagram

    Luce / Light 02 9 KEY Ref. Ref. Description Ref. Ref. Description 1060/71 Call station 1717/31 Max Monitor 1717/31 Max Monitor 1072/59 Supplementary Ringer 1039/44 8-port switch Floor call button Electric lock (12 Vac 15 VA) 1060/84 Actuator relays Setup for activating garage gate door opener...
  • Page 24 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39 011.24.00.000 (RIC. AUT.) e-mail: info@urmet.com +39 011.24.00.300 - 323 1039/44 - MADE IN CHINA 1060/71 - MADE IN ITALY 1717/31 - MADE IN CHINA 1145/52 - MADE IN ITALY 1158/62 - MADE IN ITALY...
