urmet domus 1717/31 Complete User's Manual

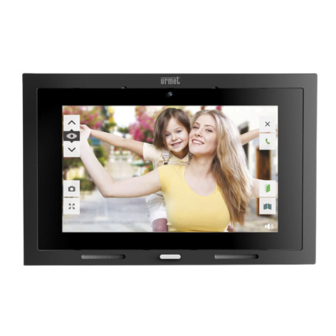

Ip 7” touchscreen video door phone
Hide thumbs Also See for 1717/31:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick User Manual
Mod.
1717
DS1717-020B
LBT20144
IP 7" TOUCHSCREEN VIDEO DOOR PHONE
Ref. 1717/31 (White)
Ref. 1717/33 (Black)
COMPLETE USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1717/31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for urmet domus 1717/31

Summary of Contents for urmet domus 1717/31

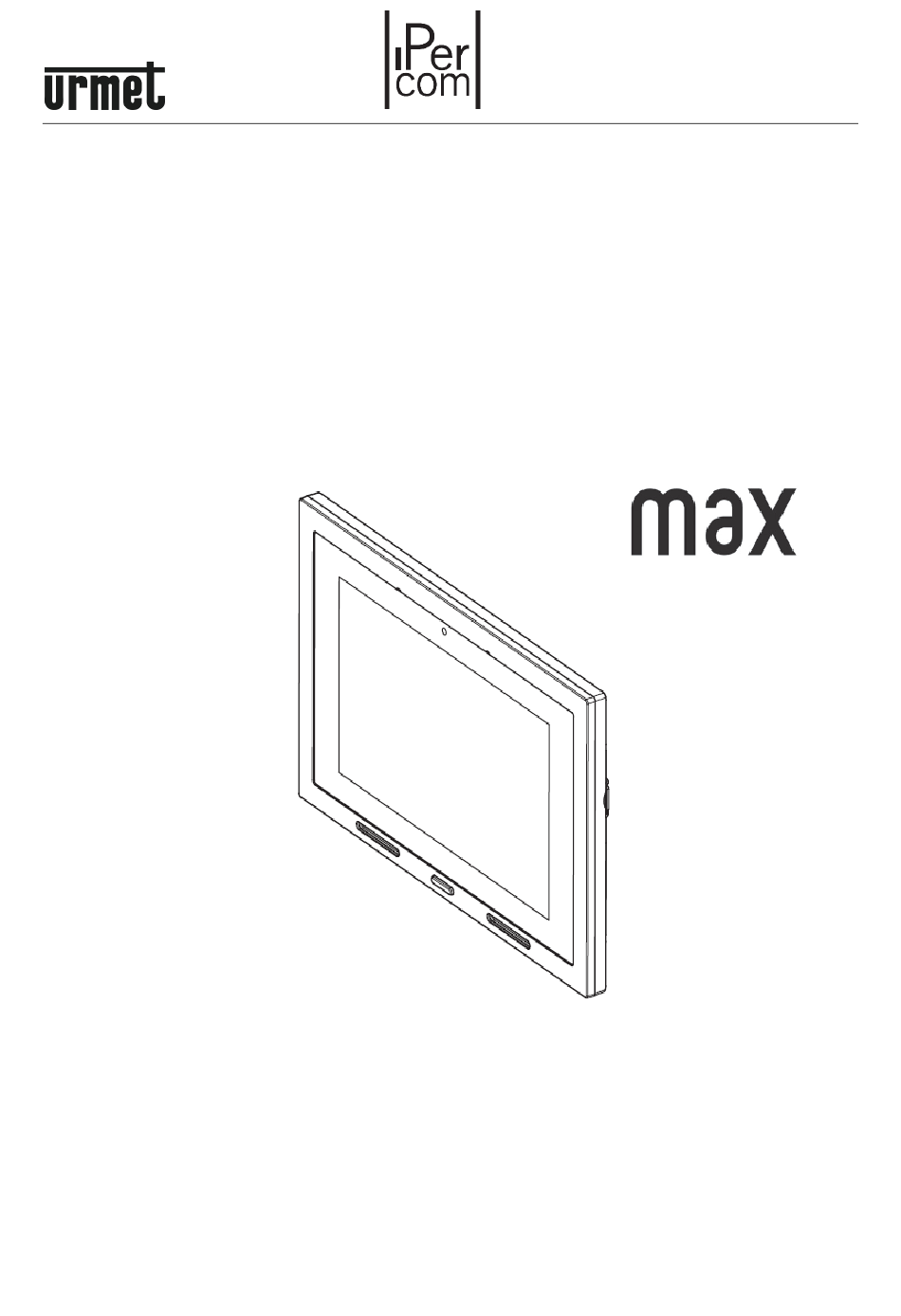

  • Page 1 Mod. 1717 DS1717-020B LBT20144 IP 7” TOUCHSCREEN VIDEO DOOR PHONE Ref. 1717/31 (White) Ref. 1717/33 (Black) COMPLETE USER MANUAL...
