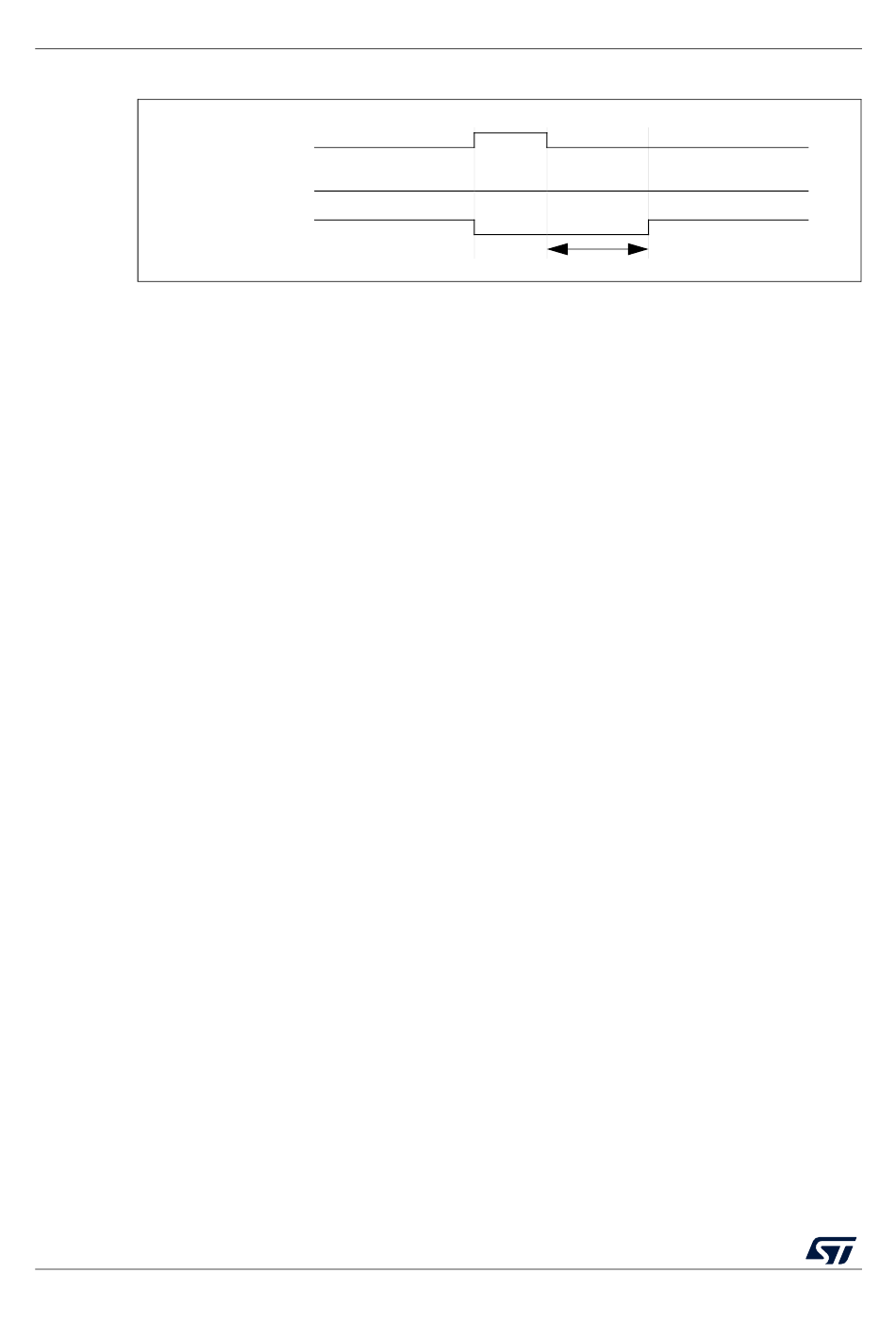

Figure 180. Dead-time waveforms with delay greater than the positive pulse.

OCxREF
The dead-time delay is the same for each of the channels and is programmable with the
DTG bits in the TIMx_BDTR register. Refer to
register (TIM15_BDTR) on page 431
Re-directing OCxREF to OCx or OCxN
In output mode (forced, output compare or PWM), OCxREF can be re-directed to the OCx
output or to OCxN output by configuring the CCxE and CCxNE bits in the TIMx_CCER
register.
This allows the user to send a specific waveform (such as PWM or static active level) on
one output while the complementary remains at its inactive level. Other alternative
possibilities are to have both outputs at inactive level or both outputs active and
complementary with dead-time.
Note: When only OCxN is enabled (CCxE=0, CCxNE=1), it is not complemented and becomes
active as soon as OCxREF is high. For example, if CCxNP=0 then OCxN=OCxRef. On the
other hand, when both OCx and OCxN are enabled (CCxE=CCxNE=1) OCx becomes
active when OCxREF is high whereas OCxN is complemented and becomes active when
OCxREF is low.
15.4.12

Using the break function

When using the break function, the output enable signals and inactive levels are modified
according to additional control bits (MOE, OSSI and OSSR bits in the TIMx_BDTR register,
OISx and OISxN bits in the TIMx_CR2 register). In any case, the OCx and OCxN outputs
cannot be set both to active level at a given time. Refer to
complementary OCx and OCxN channels with break feature on page 428
The break source can be either the break input pin or a clock failure event, generated by the
Clock Security System (CSS), from the Reset Clock Controller. For further information on
the Clock Security System, refer to
When exiting from reset, the break circuit is disabled and the MOE bit is low. Enable the
break function by setting the BKE bit in the TIMx_BDTR register. The break input polarity
can be selected by configuring the BKP bit in the same register. BKE and BKP can be
modified at the same time. When the BKE and BKP bits are written, a delay of 1 APB clock
cycle is applied before the writing is effective. Consequently, it is necessary to wait one APB
clock period to correctly read back the bit after the write operation.
Because MOE falling edge can be asynchronous, a resynchronization circuit has been
inserted between the actual signal (acting on the outputs) and the synchronous control bit
(accessed in the TIMx_BDTR register). It results in some delays between the asynchronous
and the synchronous signals. In particular, if user writes MOE to 1 whereas it was low, a
408/709
OCx
OCxN
Section 15.5.15: TIM15 break and dead-time
for delay calculation.
Section 6.2.7: Clock security system
RM0041 Rev 6
delay
Table 80: Output control bits for
for more details.
