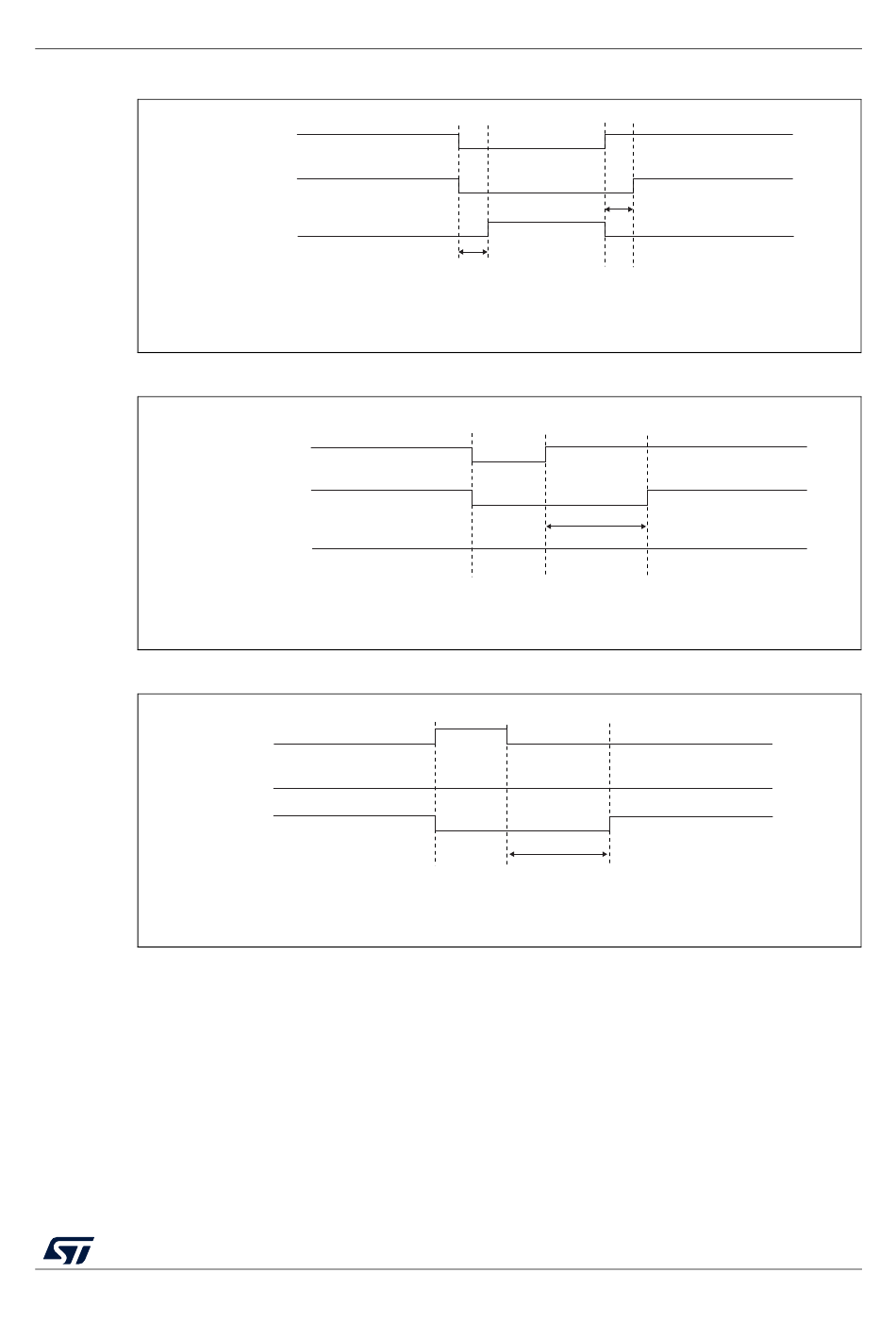

Figure 74. Complementary Output With Dead-Time Insertion; Figure 75. Dead-Time Waveforms With Delay Greater Than The Negative Pulse; Figure 76. Dead-Time Waveforms With Delay Greater Than The Positive Pulse - ST STM32F100 Series Reference Manual

Advanced arm-based 32-bit mcus

Hide thumbs Also See for STM32F100 Series:

Table of Contents

The dead-time delay is the same for each of the channels and is programmable with the

DTG bits in the TIMx_BDTR register. Refer to

Re-directing OCxREF to OCx or OCxN

In output mode (forced, output compare or PWM), OCxREF can be re-directed to the OCx

output or to OCxN output by configuring the CCxE and CCxNE bits in the TIMx_CCER

This allows the user to send a specific waveform (such as PWM or static active level) on

one output while the complementary remains at its inactive level. Other possibilities are to

Figure 74. Complementary output with dead-time insertion.

for delay calculation.

Section 12.4.18: TIM1 break and dead-time
