RM0041
1. To configure the AFIO_EXTICRx for the mapping of external interrupt/event lines onto GPIOs, the AFIO
clock should first be enabled. Refer to
(RCC_APB2ENR).
The two other EXTI lines are connected as follows:
•
EXTI line 16 is connected to the PVD output
•
EXTI line 17 is connected to the RTC Alarm event

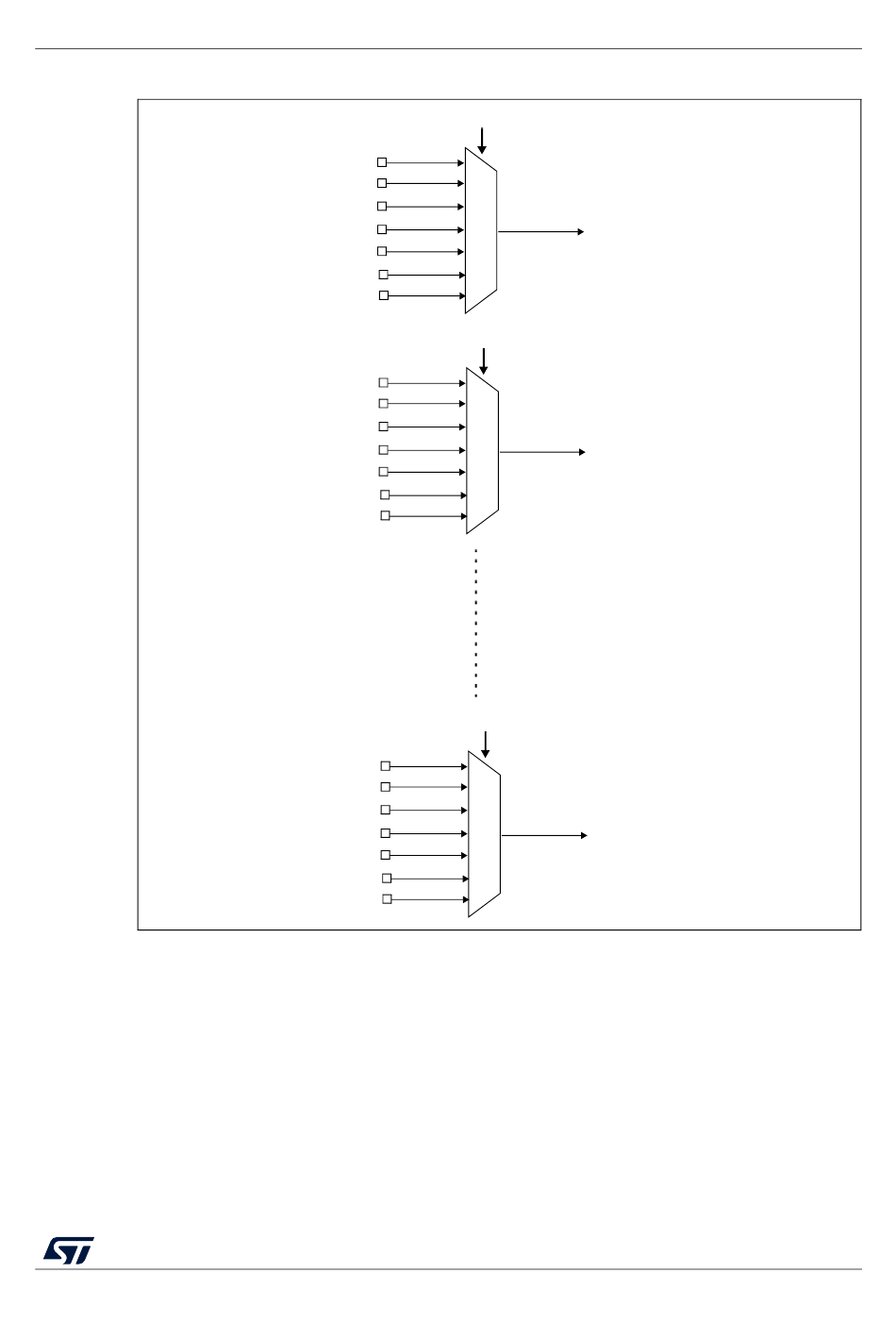

Figure 19. External interrupt/event GPIO mapping
EXTI0[3:0] bits in AFIO_EXTICR1 register
PA0
PB0
PC0
PD0
PE0
PF0
PG0
EXTI1[3:0] bits in AFIO_EXTICR1 register
PA1
PB1
PC1
PD1
PE1
PF1
PG1
EXTI15[3:0] bits in AFIO_EXTICR4 register
PA15
PB15
PC15
PD15
PE15
PF15
PG15
Section 6.3.7: APB2 peripheral clock enable register
RM0041 Rev 6
Interrupts and events
EXTI0
EXTI1
EXTI15
139/709
143
