Advanced-control timer (TIM1)

Counter clock = CK_CNT = CK_PSC

External clock source mode 2

This mode is selected by writing ECE=1 in the TIMx_SMCR register.

The counter can count at each rising or falling edge on the external trigger input ETR.

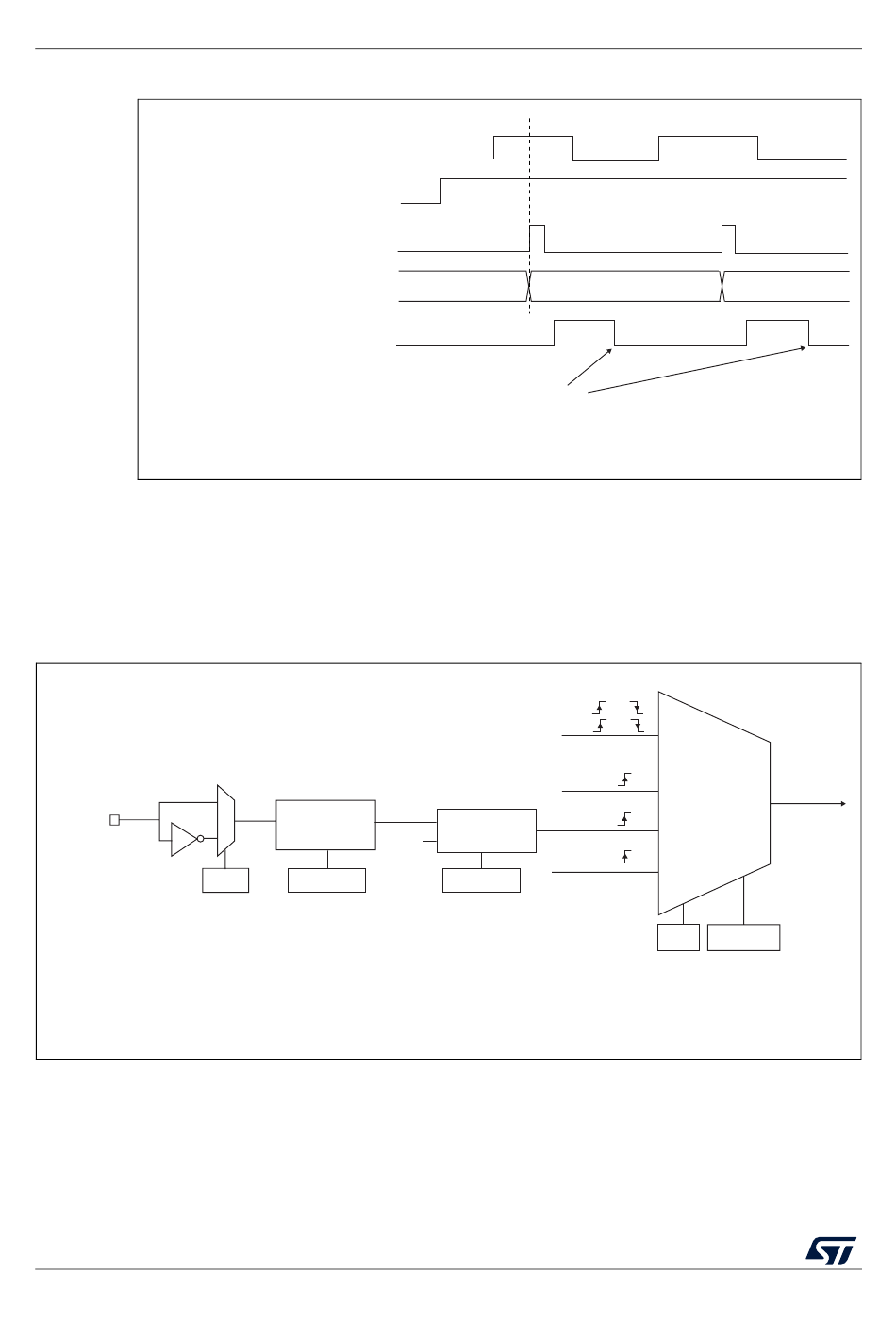

Figure 63. Control circuit in external clock mode 1

Counter register

gives an overview of the external trigger input block.

/1, /2, /4, /8

(internal clock)
