Figure 235. Transfer Sequence Diagram For Slave Transmitter - ST STM32F100 Series Reference Manual

Inter-integrated circuit (I2C) interface
Header or address not matched: the interface ignores it and waits for another Start
condition.
Header matched (10-bit mode only): the interface generates an acknowledge pulse if the
ACK bit is set and waits for the 8-bit slave address.
Address matched: the interface generates in sequence:
•
An acknowledge pulse if the ACK bit is set
•
The ADDR bit is set by hardware and an interrupt is generated if the ITEVFEN bit is
set.
•
If ENDUAL=1, the software has to read the DUALF bit to check which slave address
has been acknowledged.
In 10-bit mode, after receiving the address sequence the slave is always in Receiver mode.
It enters Transmitter mode on receiving a repeated Start condition followed by the header
sequence with matching address bits and the least significant bit set (11110xx1).
The TRA bit indicates whether the slave is in Receiver or Transmitter mode.
Slave transmitter
Following the address reception and after clearing ADDR, the slave sends bytes from the
DR register to the SDA line via the internal shift register.
The slave stretches SCL low until ADDR is cleared and DR filled with the data to be sent
(see Figure 235
When the acknowledge pulse is received:
• The TxE bit is set by hardware with an interrupt if the ITEVFEN and the ITBUFEN bits
are set.
If TxE is set and some data were not written in the I2C_DR register before the end of the
next data transmission, the BTF bit is set and the interface waits until BTF is cleared by a
read to I2C_SR1 followed by a write to the I2C_DR register, stretching SCL low.
7-bit slave transmitter
S Address
10-bit slave transmitter
S Header
Legend: S= Start, S
EVx= Event (with interrupt if ITEVFEN=1)
EV1: ADDR=1, cleared by reading SR1 followed by reading SR2
EV3-1: TxE=1, shift register empty, data register empty, write Data1 in DR.
EV3: TxE=1, shift register not empty, data register empty, cleared by writing DR
EV3-2: AF=1; AF is cleared by writing '0' in AF bit of SR1 register.
570/709
Transfer sequencing EV1 EV3).

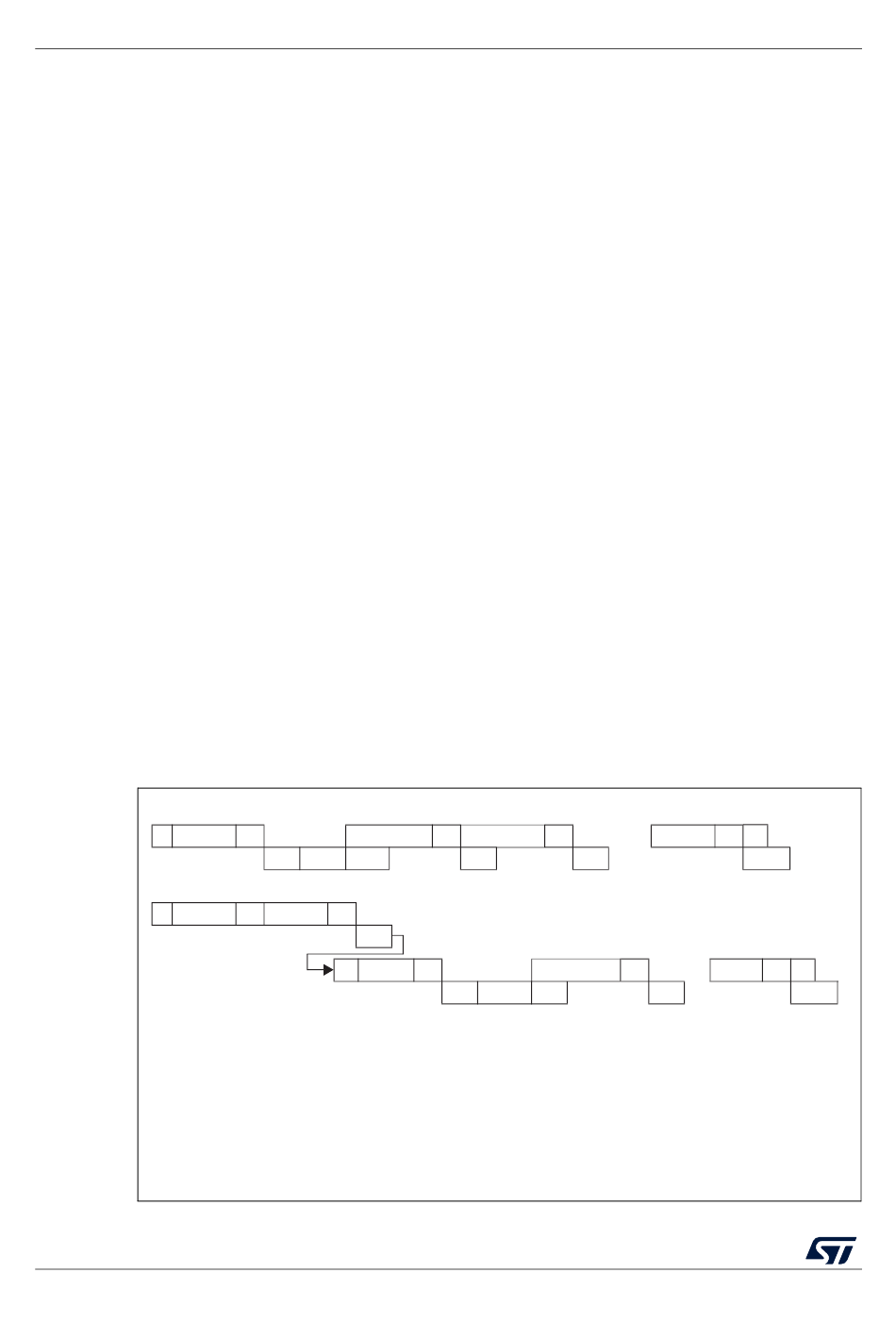

Figure 235. Transfer sequence diagram for slave transmitter

A Data1
EV1 EV3-1 EV3
A Address A
EV1
S Header A
r
= Repeated Start, P= Stop, A= Acknowledge, NA= Non-acknowledge,
r
RM0041 Rev 6
A Data2 A
EV3 EV3
Data1
EV1 EV3_1 EV3
DataN NA P
.....
EV3-2
A .... DataN NA P
EV3
RM0041
EV3-2
ai18209
