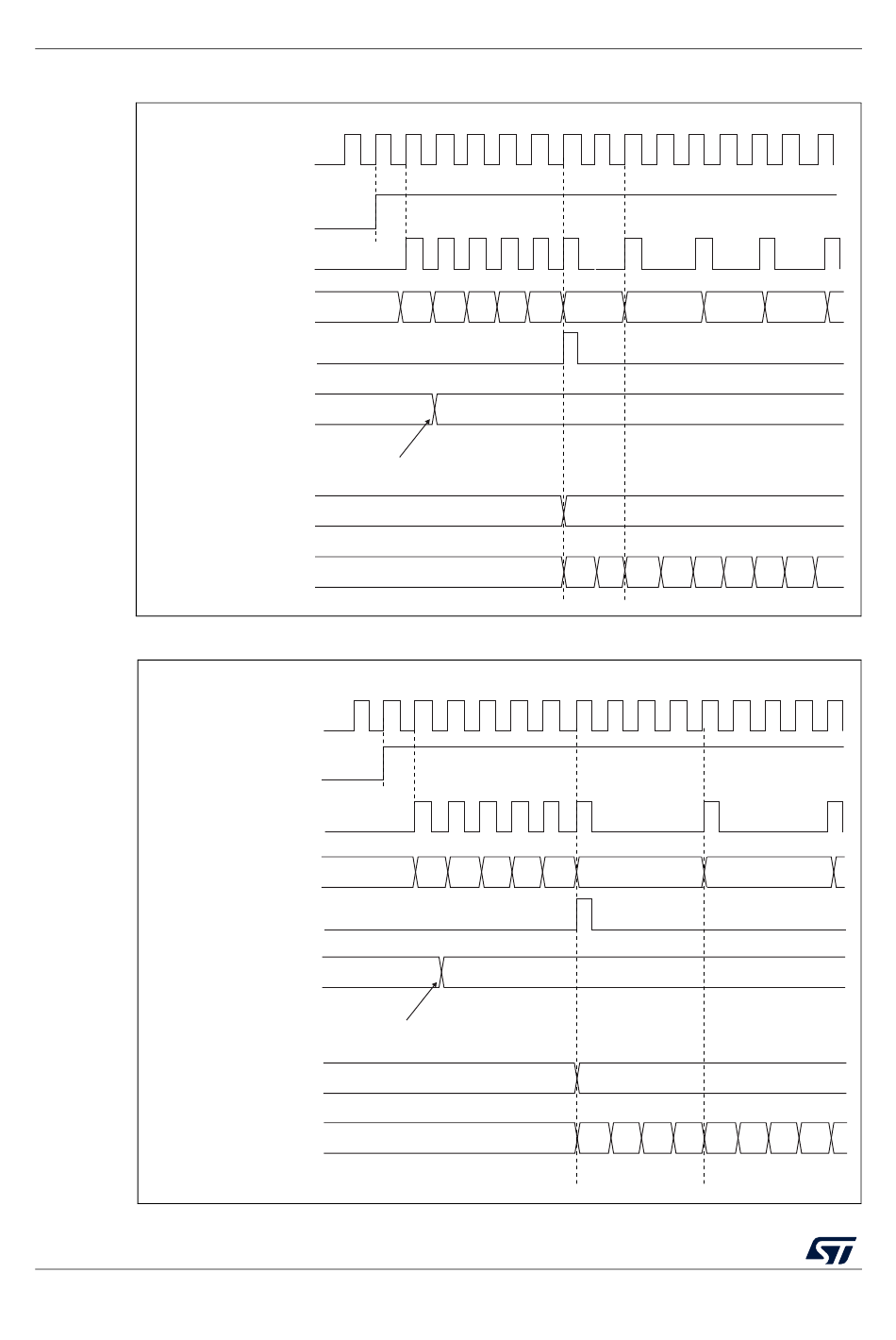

Figure 195. Counter timing diagram with prescaler division change from 1 to 2

Timerclock = CK_CNT
Counter register
Update event (UEV)
Prescaler control register
Prescaler buffer
Prescaler counter

Figure 196. Counter timing diagram with prescaler division change from 1 to 4

Timerclock = CK_CNT
Update event (UEV)
Prescaler control register
Prescaler counter
