Fast-mode Plus Inter-integrated circuit (FMPI2C) interface
When the SMBus master wants to send a RESTART condition after the PEC, software
mode must be selected (AUTOEND=0). In this case, once NBYTES-1 have been
transmitted, the FMPI2C_PECR register content is transmitted and the TC flag is set after
the PEC transmission, stretching the SCL line low. The RESTART condition must be
programmed in the TC interrupt subroutine.
Caution: The PECBYTE bit has no effect when the RELOAD bit is set.
Example SMBus master transmitter 2 bytes + PEC, automatic end mode (STOP)
NBYTES
INIT: program Slave address, program NBYTES = 3, AUTOEND=1, set PECBYTE, set START
EV1: TXIS ISR: wr data1
EV2: TXIS ISR: wr data2
Example SMBus master transmitter 2 bytes + PEC, software end mode (RESTART)
S
INIT
xx
NBYTES
INIT: program Slave address, program NBYTES = 3, AUTOEND=0, set PECBYTE, set START
EV1: TXIS ISR: wr data1
EV2: TXIS ISR: wr data2
EV3: TC ISR: program Slave address, program NBYTES = N, set START
700/1163

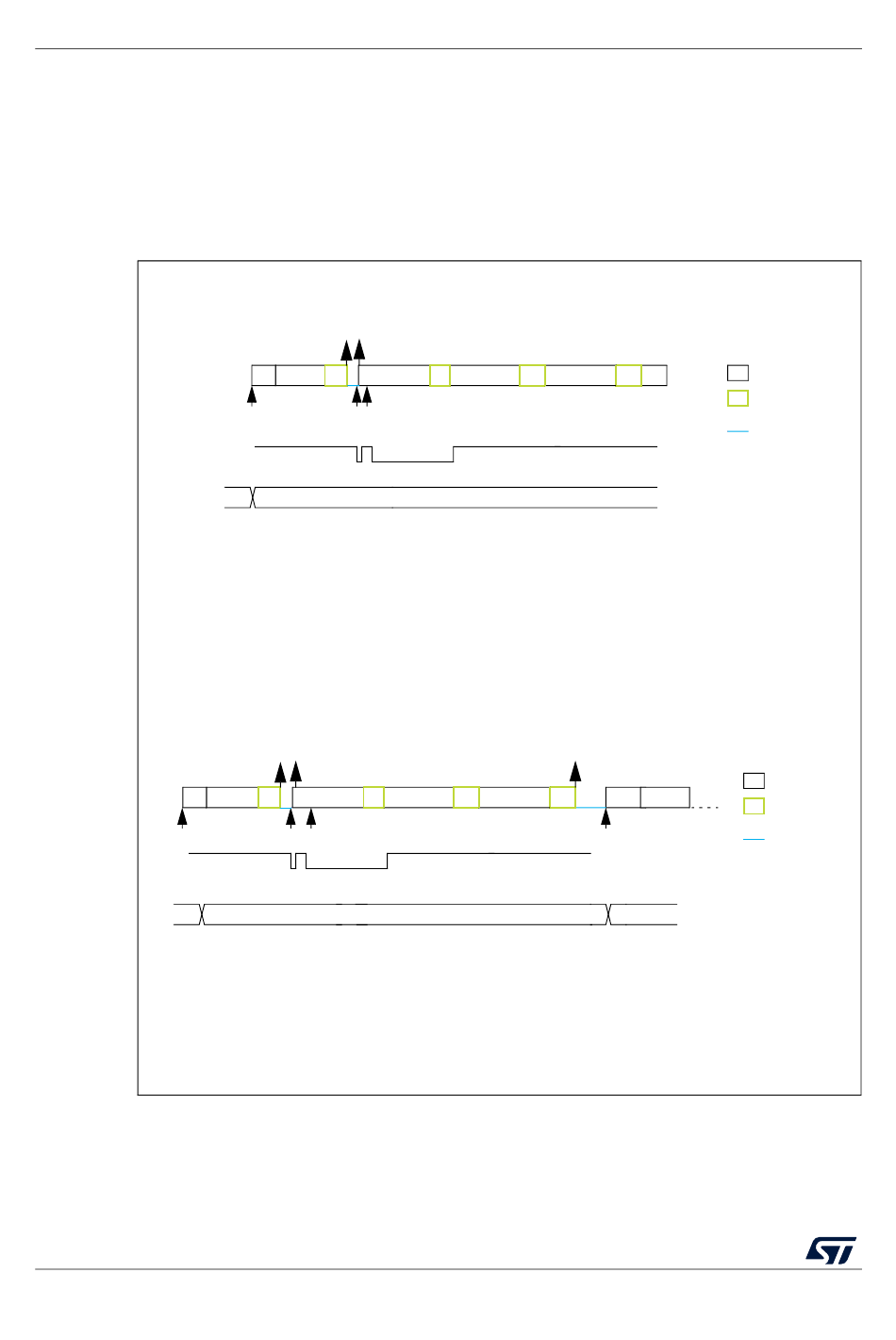

Figure 236. Bus transfer diagrams for SMBus master transmitter

TXIS TXIS
S Address A data1
EV1
INIT EV2
TXE
xx
TXIS TXIS
Address A data1 A
EV1
EV2
3
A data2 A
3
data2 A PEC
RM0402 Rev 6
legend:
PEC A P
TC
A Rstart Address
EV3
N
RM0402
transmission
reception
SCL stretch
legend:
transmission
reception
SCL stretch
MS19871V2
