29.6.1

SRP-capable peripheral

The SRP capable bit in the Global USB configuration register (SRPCAP bit in
OTG_GUSBCFG) enables the OTG_FS to support the session request protocol (SRP). In
this way, it allows the remote A-device to save power by switching off V
session is suspended.
The SRP peripheral mode program model is described in detail in the
request protocol
29.6.2

Peripheral states

Powered state
The V
BUS
to enter the powered state (see USB2.0 section 9.1). The OTG_FS then automatically
connects the DP pull-up resistor to signal full-speed device connection to the host and
generates the session request interrupt (SRQINT bit in OTG_GINTSTS) to notify the
powered state.
The V
BUS
operations. If a drop in V
because of a power disturbance or if the host port has been switched off), the OTG_FS
automatically disconnects and the session end detected (SEDET bit in OTG_GOTGINT)
interrupt is generated to notify that the OTG_FS has exited the powered state.
In the powered state, the OTG_FS expects to receive some reset signaling from the host.
No other USB operation is possible. When a reset signaling is received the reset detected
interrupt (USBRST in OTG_GINTSTS) is generated. When the reset signaling is complete,
the enumeration done interrupt (ENUMDNE bit in OTG_GINTSTS) is generated and the
OTG_FS enters the Default state.

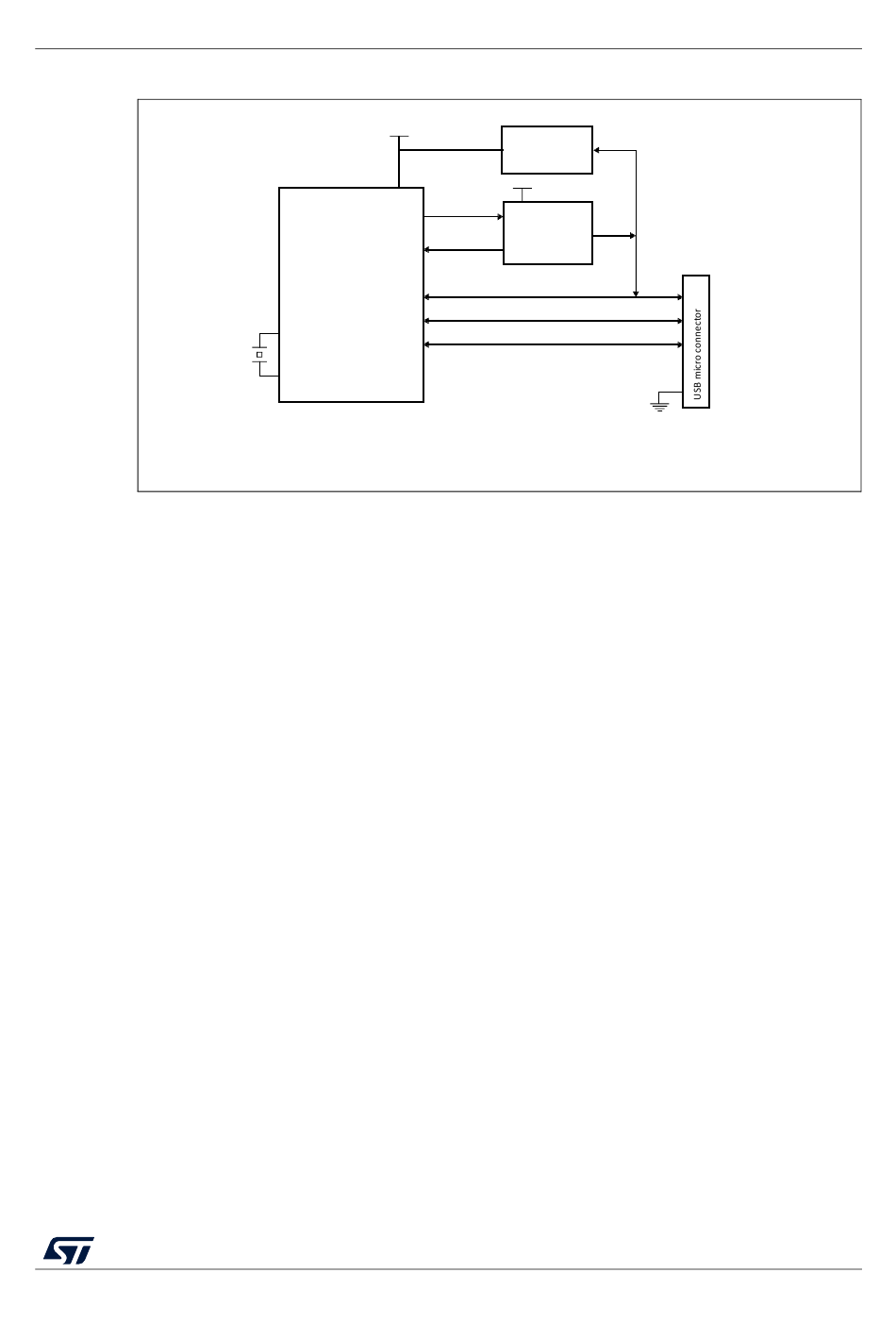

Figure 336. OTG_FS peripheral-only connection
