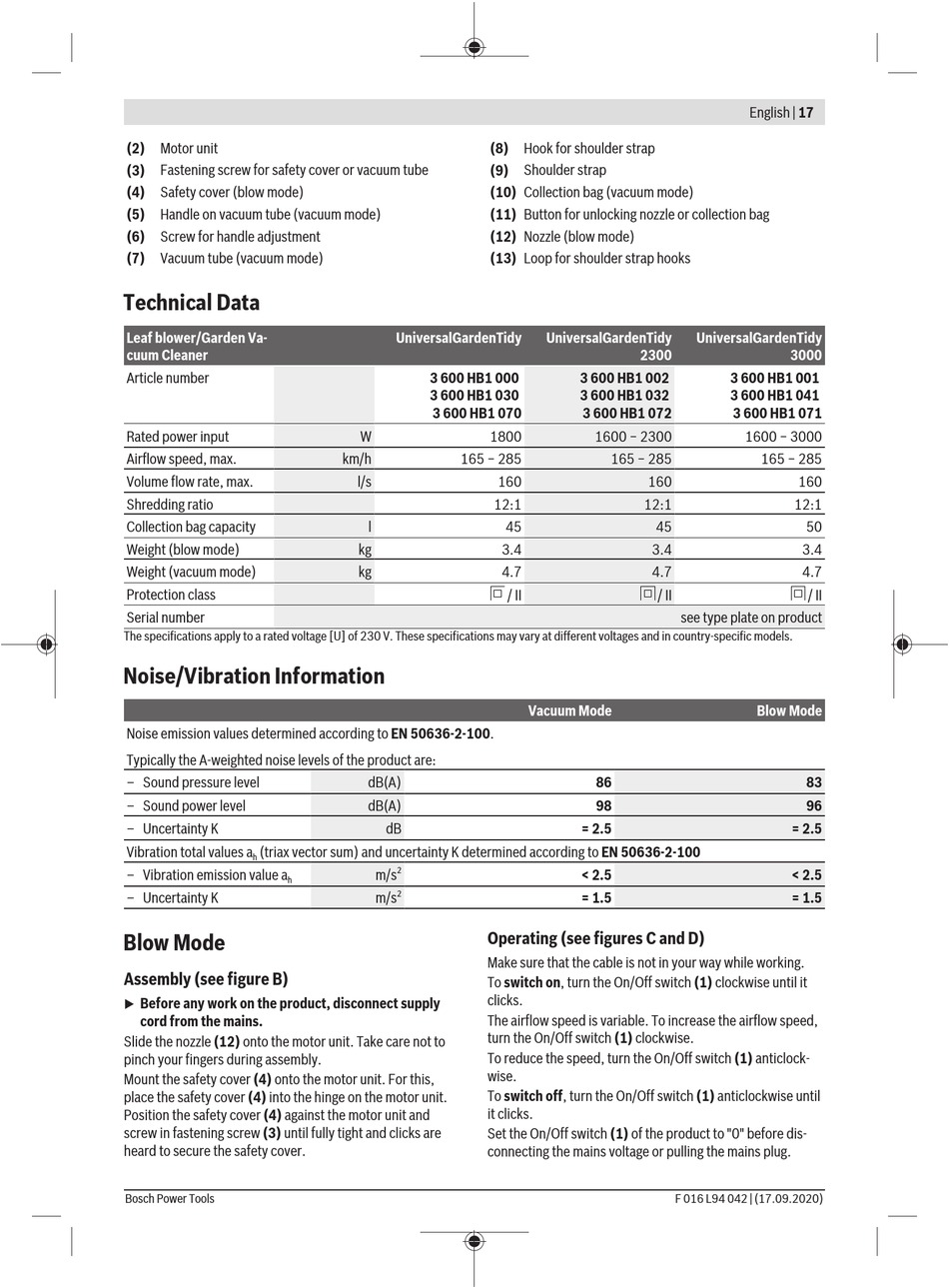

Bosch UniversalGardenTidy Original Instructions Manual page 17

Hide thumbs Also See for UniversalGardenTidy:

Advertisement

Table of Contents
(2) Motor unit
(3) Fastening screw for safety cover or vacuum tube
(4) Safety cover (blow mode)
(5) Handle on vacuum tube (vacuum mode)
(6) Screw for handle adjustment
(7) Vacuum tube (vacuum mode)
Technical Data
Leaf blower/Garden Va-
cuum Cleaner
Article number
Rated power input
Airflow speed, max.
Volume flow rate, max.
Shredding ratio
Collection bag capacity
Weight (blow mode)
Weight (vacuum mode)
Protection class
Serial number
The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.
Noise/Vibration Information
Noise emission values determined according to EN 50636-2-100.
Typically the A-weighted noise levels of the product are:
– Sound pressure level
– Sound power level
– Uncertainty K
Vibration total values a
(triax vector sum) and uncertainty K determined according to EN 50636-2-100
h
– Vibration emission value a
h
– Uncertainty K
Blow Mode
Assembly (see figure B)
Before any work on the product, disconnect supply
u
cord from the mains.
Slide the nozzle (12) onto the motor unit. Take care not to
pinch your fingers during assembly.
Mount the safety cover (4) onto the motor unit. For this,
place the safety cover (4) into the hinge on the motor unit.
Position the safety cover (4) against the motor unit and
screw in fastening screw (3) until fully tight and clicks are
heard to secure the safety cover.
Bosch Power Tools
(8) Hook for shoulder strap
(9) Shoulder strap
(10) Collection bag (vacuum mode)
(11) Button for unlocking nozzle or collection bag
(12) Nozzle (blow mode)
(13) Loop for shoulder strap hooks
UniversalGardenTidy
3 600 HB1 000
3 600 HB1 030
3 600 HB1 070
W
1800
km/h
165 − 285
l/s
160
12:1
l
45
kg
3.4
kg
4.7
/ II
dB(A)
dB(A)
dB
2
m/s
2
m/s
Operating (see figures C and D)
Make sure that the cable is not in your way while working.
To switch on, turn the On/Off switch (1) clockwise until it
clicks.
The airflow speed is variable. To increase the airflow speed,
turn the On/Off switch (1) clockwise.
To reduce the speed, turn the On/Off switch (1) anticlock-
wise.
To switch off, turn the On/Off switch (1) anticlockwise until
it clicks.
Set the On/Off switch (1) of the product to "0" before dis-
connecting the mains voltage or pulling the mains plug.
UniversalGardenTidy
UniversalGardenTidy
2300
3 600 HB1 002
3 600 HB1 032
3 600 HB1 072
1600 − 2300
165 − 285
160
12:1
45
3.4
4.7
/ II
see type plate on product
Vacuum Mode
86
98
= 2.5
< 2.5
= 1.5
F 016 L94 042 | (17.09.2020)
English | 17
3000
3 600 HB1 001
3 600 HB1 041
3 600 HB1 071
1600 − 3000
165 − 285
160
12:1
50
3.4
4.7
/ II
Blow Mode
83
96
= 2.5
< 2.5
= 1.5
