RM0365 Analog-to-digital converters (ADC)

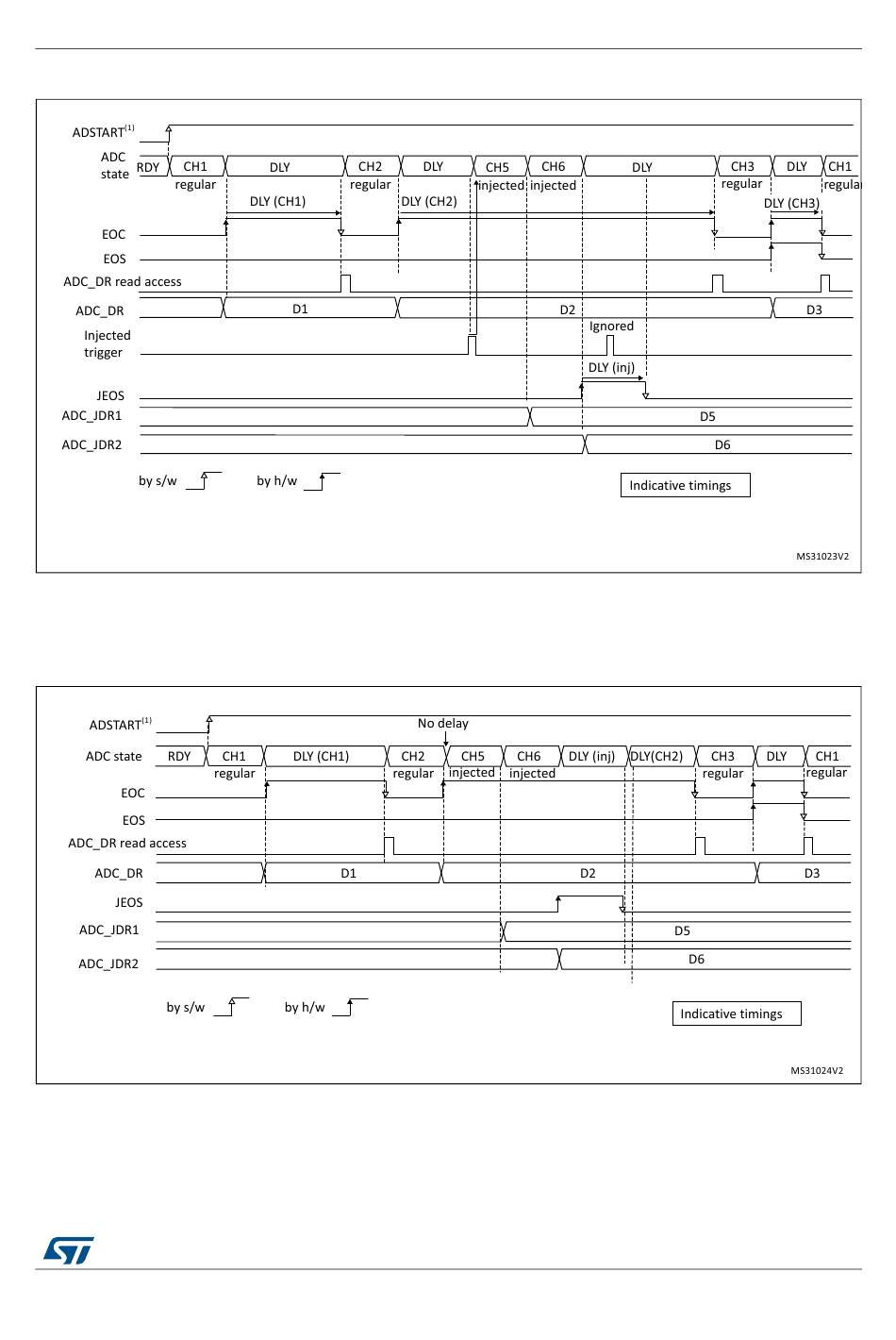

Figure 88. AUTODLY=1, regular continuous conversions interrupted by injected conversions

1. AUTDLY=1
2. Regular configuration: EXTEN=0x0 (SW trigger), CONT=1, DISCEN=0, CHANNELS = 1, 2, 3
3. Injected configuration: JEXTEN=0x1 (HW Trigger), JDISCEN=0, CHANNELS = 5,6

Figure 89. AUTODLY=1 in auto- injected mode (JAUTO=1)

1. AUTDLY=1
2. Regular configuration: EXTEN=0x0 (SW trigger), CONT=1, DISCEN=0, CHANNELS = 1, 2
3. Injected configuration: JAUTO=1, CHANNELS = 5,6
DocID025202 Rev 7 332/1080
392
