RM0365
and Tx mailboxes). The internal counter is incremented each CAN bit time (refer to
Section 31.7.7: Bit
Of Frame bit in both reception and transmission.
31.7.3

Reception handling

For the reception of CAN messages, three mailboxes organized as a FIFO are provided. In
order to save CPU load, simplify the software and guarantee data consistency, the FIFO is
managed completely by hardware. The application accesses the messages stored in the
FIFO through the FIFO output mailbox.
Valid message
A received message is considered as valid when it has been received correctly according to
the CAN protocol (no error until the last but one bit of the EOF field) and It passed through
the identifier filtering successfully, see
FIFO management
Starting from the empty state, the first valid message received is stored in the FIFO which
becomes pending_1. The hardware signals the event setting the FMP[1:0] bits in the
timing). The internal counter is captured on the sample point of the Start
Section 31.7.4: Identifier

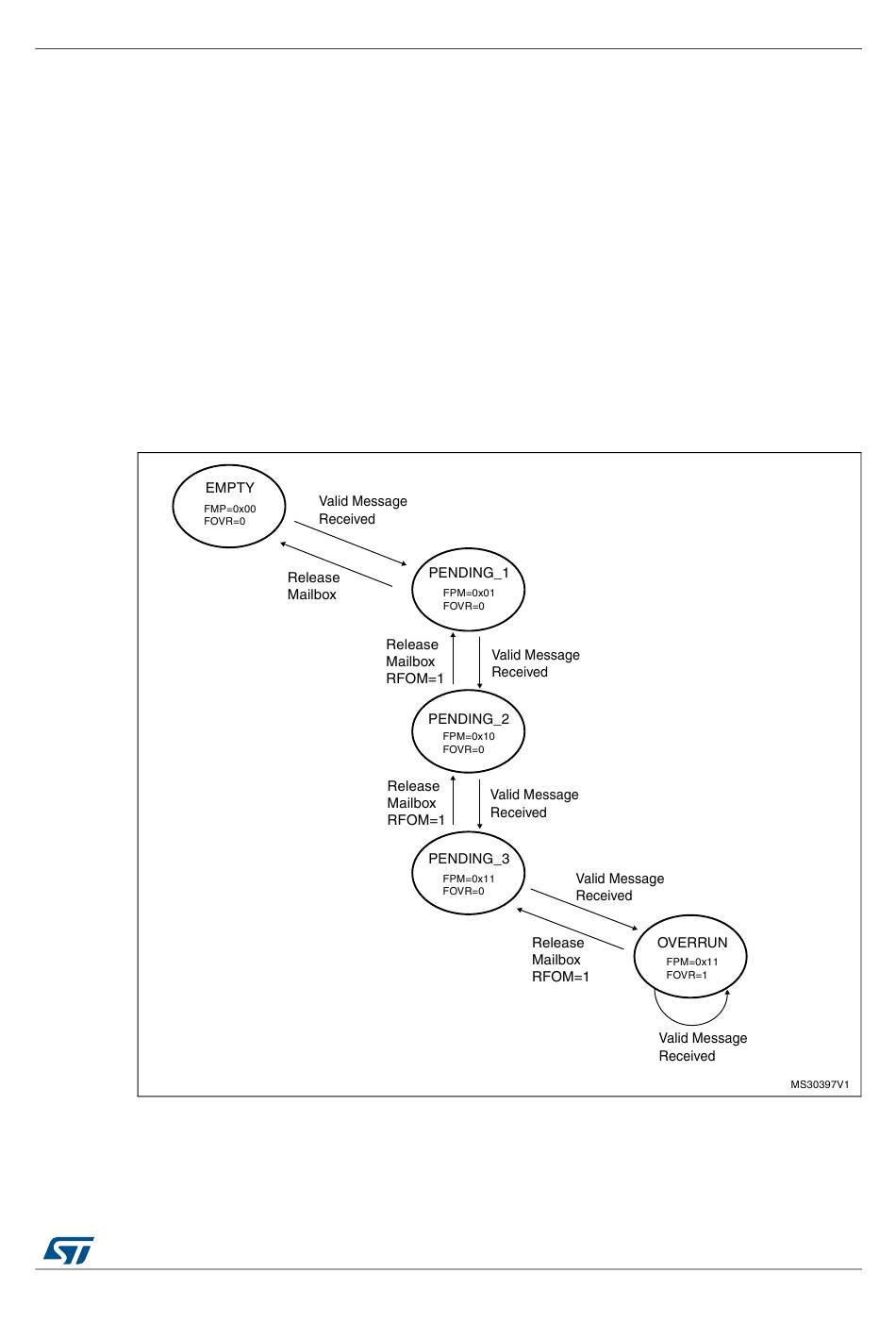

Figure 384. Receive FIFO states

DocID025202 Rev 7
Controller area network (bxCAN)
filtering.
968/1080
